The image below shows a house with a solar panel located on its roof - Leaving Cert DCG - Question A-4 - 2016
Question A-4

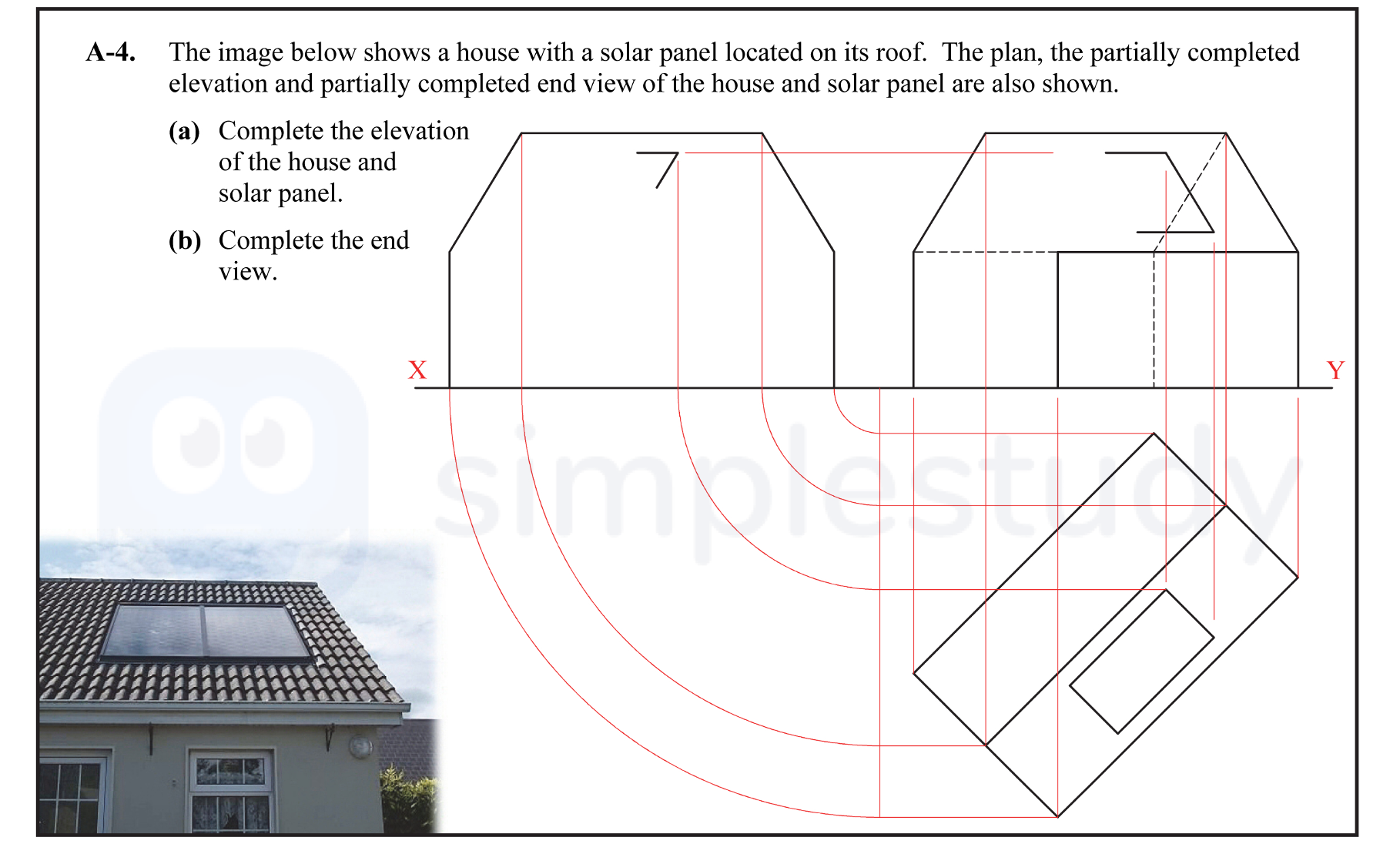

The image below shows a house with a solar panel located on its roof. The plan, the partially completed elevation and partially completed end view of the house and s... show full transcript
Worked Solution & Example Answer:The image below shows a house with a solar panel located on its roof - Leaving Cert DCG - Question A-4 - 2016
Step 1
Complete the elevation of the house and solar panel.
Answer
To complete the elevation, begin by understanding the shape and size of the solar panel in relation to the house.
- Projections from the plan: Transfer the dimensions of the solar panel from the roof plan to the elevation. These dimensions include the width and height of the solar panel as observed in the plan view.
- Define key points on the elevation: Identify prominent edge points of the house and the solar panel on the elevation. Ensure the alignment is correct following the red lines in the drawing to maintain perspective.
- Final elevation completion: Using the defined points and projections, sketch the full elevation of both the house and the solar panel, ensuring angles and edges line up as intended.
Step 2
Complete the end view.
Answer
For the end view, follow these steps:
- Project from elevation: Use the completed elevation to project relevant features down to the end view. This includes the outline of the roof and the solar panel.
- Identify correct points: Mark out where the edges of the elevation intersect with the end view drawing. Pay attention to the dimensions to ensure accuracy.
- Complete the end view: Use the marked points to finalize the end view drawing, ensuring that the proportions and angles accurately represent the 3D shapes.
- Presentation: Make sure that the levels of shading and pencils used for the drawing are consistent and clear, enhancing the view's visual appeal.
