Question B-3

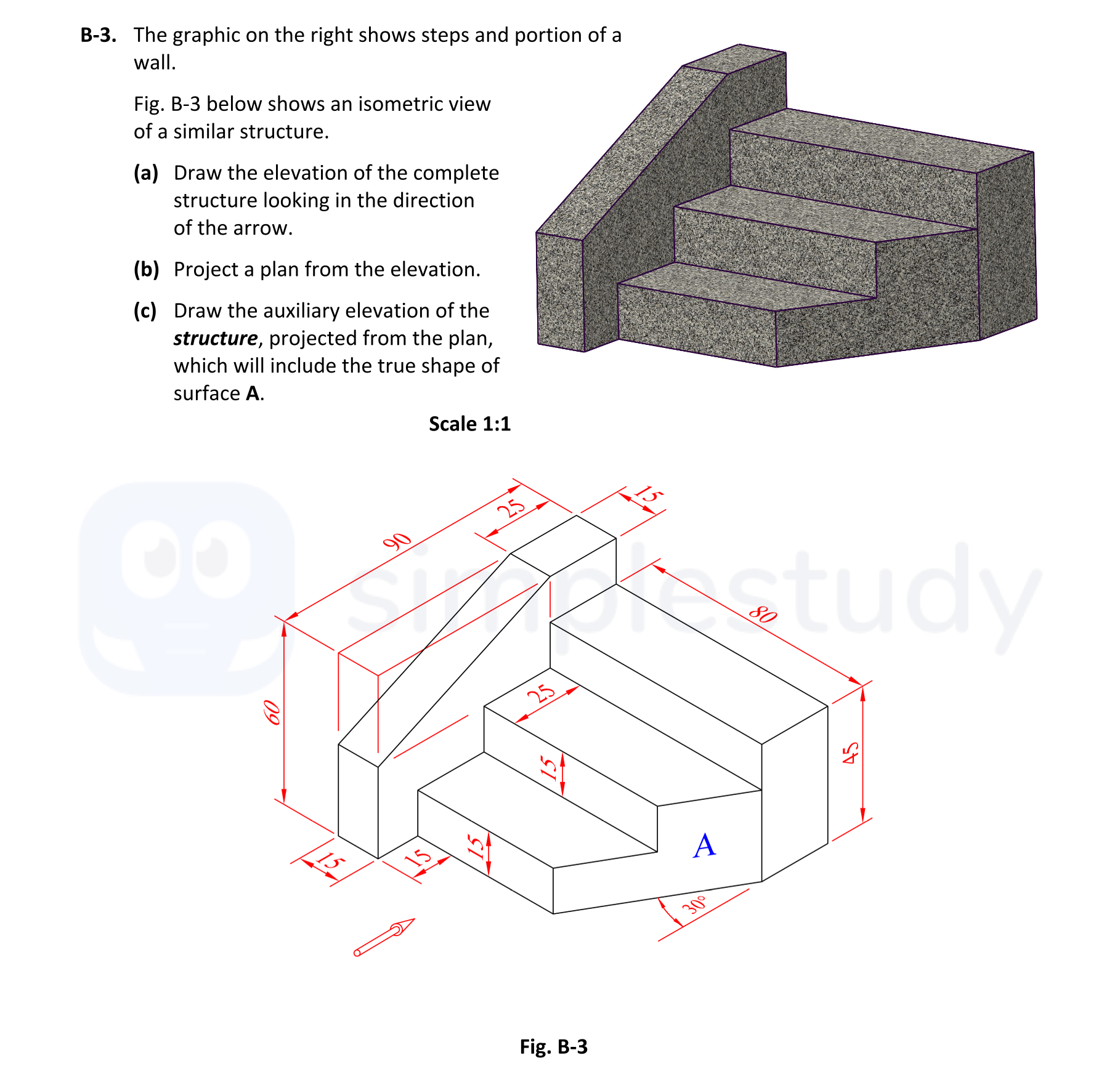

The graphic on the right shows steps and portion of a wall.
Fig. B-3 below shows an isometric view of a similar structure.
(a) Draw the elevation of the complete s... show full transcript
Worked Solution & Example Answer:The graphic on the right shows steps and portion of a wall - Leaving Cert DCG - Question B-3 - 2019
Step 1
(a) Draw the elevation of the complete structure looking in the direction of the arrow.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To draw the elevation:
Start by establishing the height of the steps based on the dimensions given in the isometric view in Fig. B-3.
Draw the vertical outline of the wall, ensuring it aligns with the steps.
Add the individual steps at their respective heights, maintaining the correct angles as seen from the provided view.
Ensure all dimensions such as width and height correspond correctly with the measurements given in the figure.
Step 2
(b) Project a plan from the elevation.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To project the plan:
Using the elevation drawn, project horizontal lines from key points, particularly the top surfaces of each step.
Mark the outline of the wall in a plan view.
Indicate the position of each step as it would be viewed from above, ensuring to maintain the exact dimensions as depicted in the elevation.
Label the plan with relevant measurements to clearly indicate the structure's layout.
Step 3
(c) Draw the auxiliary elevation of the structure, projected from the plan, which will include the true shape of surface A.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To draw the auxiliary elevation:
Identify surface A from the plan and project its location.
Use parallel lines from points X and Y as indicated in the marking scheme to establish the correct perspective.
Transfer the heights of the steps from the elevation to this new perspective to show surface A accurately.
Draw the outline for surface A, ensuring it's correctly shaped and includes all dimensions as seen from the auxiliary view.
Complete the auxiliary elevation by adding any additional features visible in the elevation.
