The image below shows a ring box with the lid opened through 90° - Leaving Cert DCG - Question A-4 - 2022
Question A-4

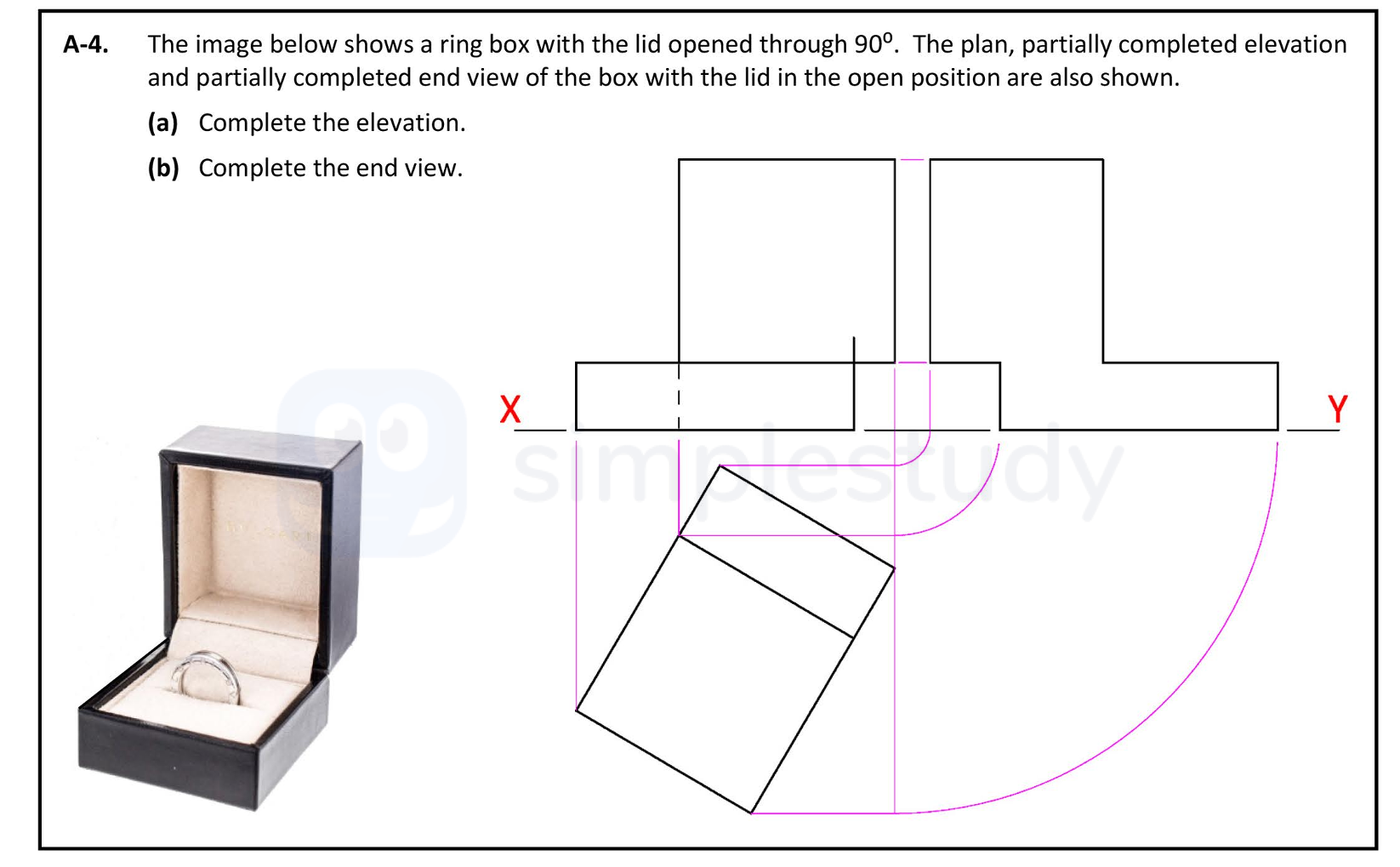

The image below shows a ring box with the lid opened through 90°. The plan, partially completed elevation and partially completed end view of the box with the lid in... show full transcript
Worked Solution & Example Answer:The image below shows a ring box with the lid opened through 90° - Leaving Cert DCG - Question A-4 - 2022
Step 1
Complete the elevation.
Answer
To complete the elevation of the ring box, we need to follow these steps:
- Projections from Plan: Use the given plan view to derive the vertical projections onto the elevation.
- Dimensions and Heights: Identify the dimensions provided in the plan view and apply these to the elevation. The height of the sides and the base of the box should be marked accurately.
- Detailing the Lid: Since the lid is open at 90°, make sure to show its angle correctly in the elevation view. The line representing the hinge should be depicted accurately.
- Finishing Touches: Add any significant details, such as the ring inside the box and texture if applicable. Make sure the lines are clear and distinct.
Step 2
Complete the end view.
Answer
To complete the end view of the ring box, follow these steps:
- Projections from Plan: Similar to the elevation, derive the projections from the plan view onto the end view, ensuring accuracy.
- Identify Correct Points: Identify the key points that align with the elevation and plan, including corners and edges of the box and lid.
- Completing the End View: Draw the outline of the box in its end position, noting that the lid is still open. Add the ring inside with its correct dimensions relative to the box.
- Hidden Details: Include any hidden detail lines to indicate the depths and other necessary features not visible from the end view, ensuring clarity in representation.
