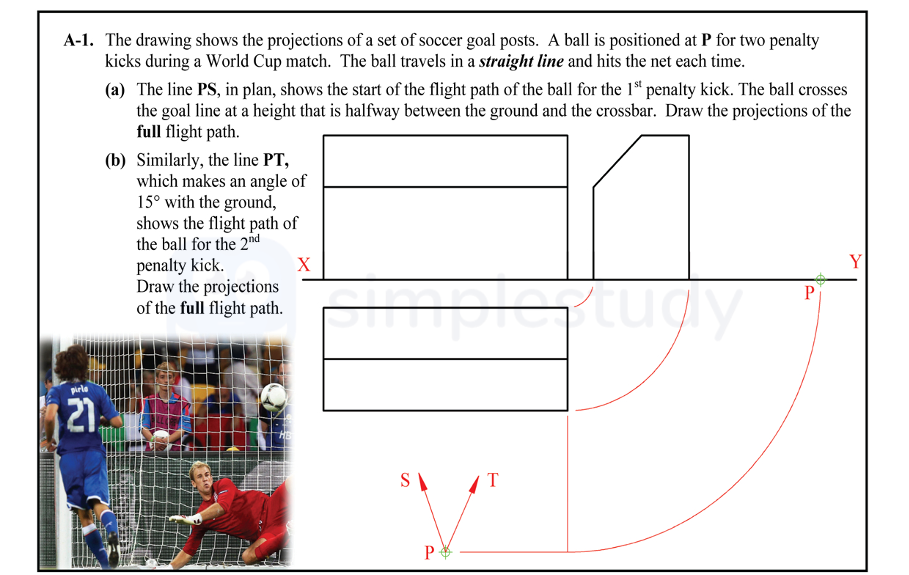

The drawing shows the projections of a set of soccer goal posts - Leaving Cert DCG - Question A-1 - 2014

In the end view, mark the entry point of the ball at the halfway height, which is determined by measuring the height of the goal and dividing it by two.

Draw a vertical line from the entry point to indicate where the ball strikes the net in the elevation view.

Finally, connect the points in both plan and elevation views to form a continuous trajectory, showing the complete flight path of the ball until it hits the net.

Extend the line PT from point P at a 15° angle to represent the flight path of the ball for the 2nd penalty kick in plan view.

In the auxiliary view, draw a line at a 15° angle from the horizontal that shows the correct slope of the ball’s flight path.

Mark the impact point at the appropriate height in the elevation view, ensuring that it corresponds with the trajectory shown in the plan view.

Draw the projections in both the plan and elevation views to finalize the complete flight path of the ball for the second penalty kick.
