The image below shows a storage bunker - Leaving Cert DCG - Question A-1 - 2022
Question A-1

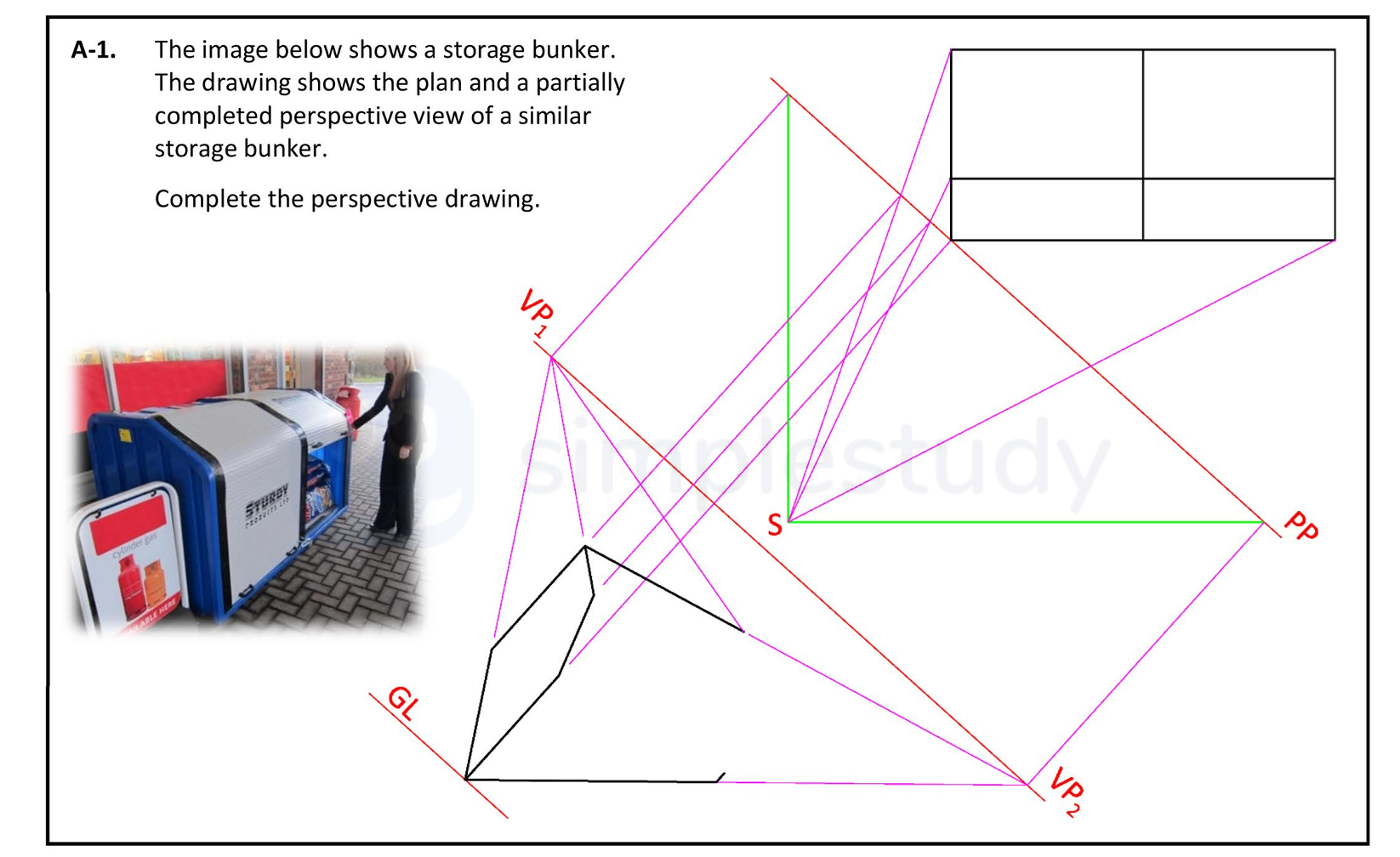

The image below shows a storage bunker. The drawing shows the plan and a partially completed perspective view of a similar storage bunker. Complete the perspective d... show full transcript
Worked Solution & Example Answer:The image below shows a storage bunker - Leaving Cert DCG - Question A-1 - 2022
Step 1
Radiate lines to correct vanishing points (3 lines)
Answer
Begin by determining the correct vanishing points (VP) from the perspective drawing. Using a ruler, draw three radiating lines connecting the prominent edges of the bunker (such as the top and bottom edges) to the respective vanishing points VP1 and VP2. Ensure these lines extend sufficiently to aid in the construction of the perspective view.
Step 2
Complete the bunker outline
Answer
Next, use the lines you radiated to draft the outline of the storage bunker. Start with the horizontal and vertical edges, ensuring that all lines converge towards the vanishing points. Pay close attention to the dimensions defined in the plan to represent the bunker accurately.
Step 3
Projections from plan or radiated lines
Answer
From the completed outline, use the radiated lines to project distinct features and edges of the bunker. This involves drawing lines that project from these edges to the ground line (GL) to maintain perspective accuracy, ensuring that each projection meets at the correct points.
Step 4
Radiate line to correct vanishing point for bunker division
Answer
Identify any divisions or segments within the bunker that need to be represented. Radiate a line from one of these internal divisions to the appropriate vanishing point, ensuring that it aligns properly with the overall perspective of the bunker.
Step 5
Complete bunker division
Answer
Use the newly radiated line to finalize the internal divisions of the bunker. Accurately sketch these divisions in the context of the entire structure, ensuring that they conform to the perspective created in earlier steps. Ensure symmetry and balance while representing the interiors.
