The graphic on the right shows a lady carrying a handbag - Leaving Cert DCG - Question C-3 - 2018
Question C-3

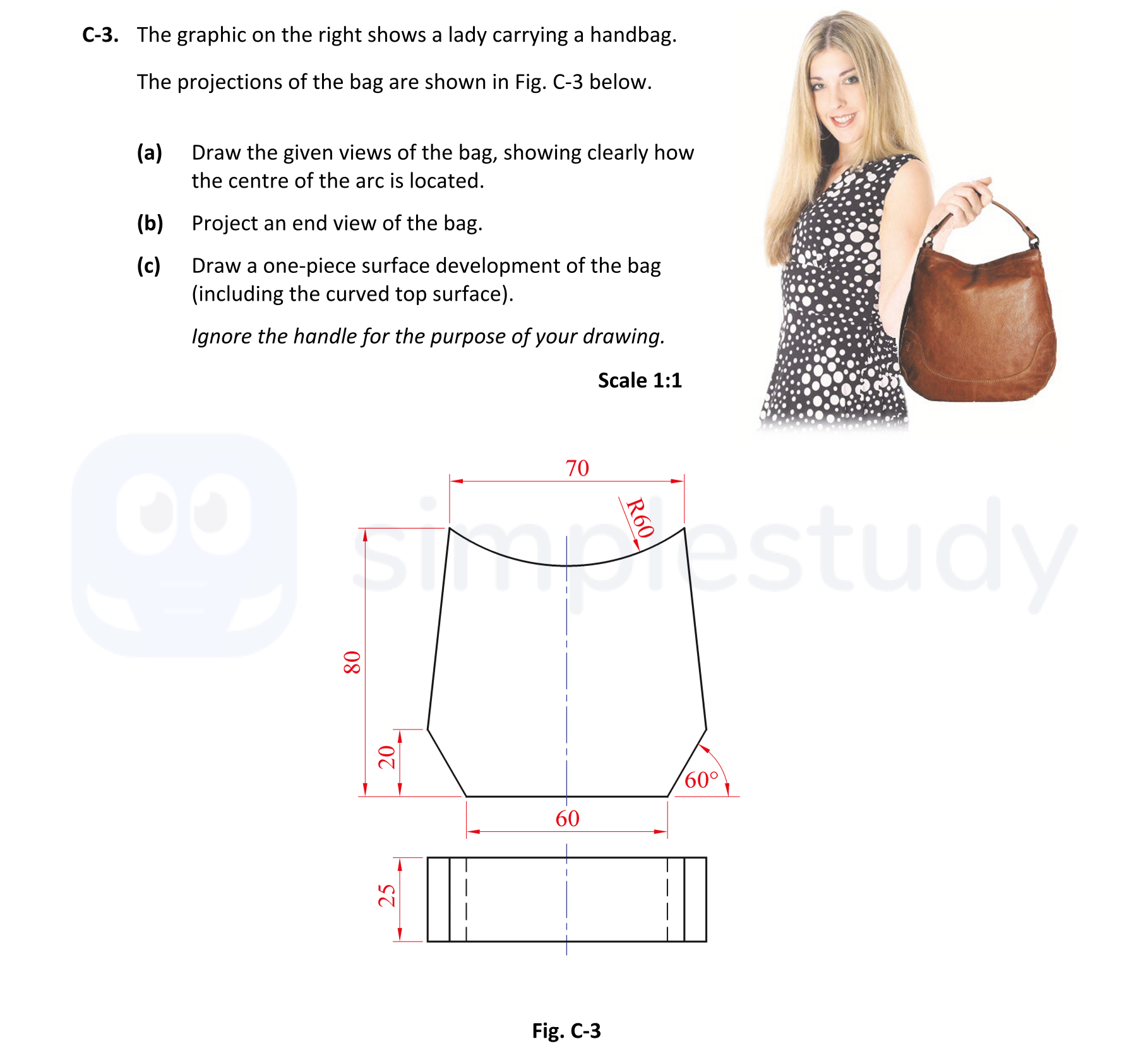

The graphic on the right shows a lady carrying a handbag. The projections of the bag are shown in Fig. C-3 below. (a) Draw the given views of the bag, showing cle... show full transcript
Worked Solution & Example Answer:The graphic on the right shows a lady carrying a handbag - Leaving Cert DCG - Question C-3 - 2018
Step 1
Draw the outline of the bag.
Answer
Begin by creating the elevation view of the handbag. Start with the main outline which consists of straight lines and curves. Clearly indicate the center of the arc at the top section of the bag, making sure to detail the transition from the flat surfaces to the curved areas.
Step 2
Step 3
Draw a one-piece surface development of the bag.
Answer
Start by sketching a flat layout of the bag's surfaces. Divide the development into sections: the front, back, and any sides. Include the bottom surface as a rectangular section. Each inclined surface must be represented, particularly the long and short slants that transition between flat and curved areas. Finally, ensure that the curved top surface is correctly represented and labeled. Pay attention to how the pieces fit together when folded into the 3D shape.
