The 3D graphic on the right shows a headrest for a sports car - Leaving Cert DCG - Question C-3 - 2014

Question icon

Question C-3

The-3D-graphic-on-the-right-shows-a-headrest-for-a-sports-car-Leaving Cert DCG-Question C-3-2014.png

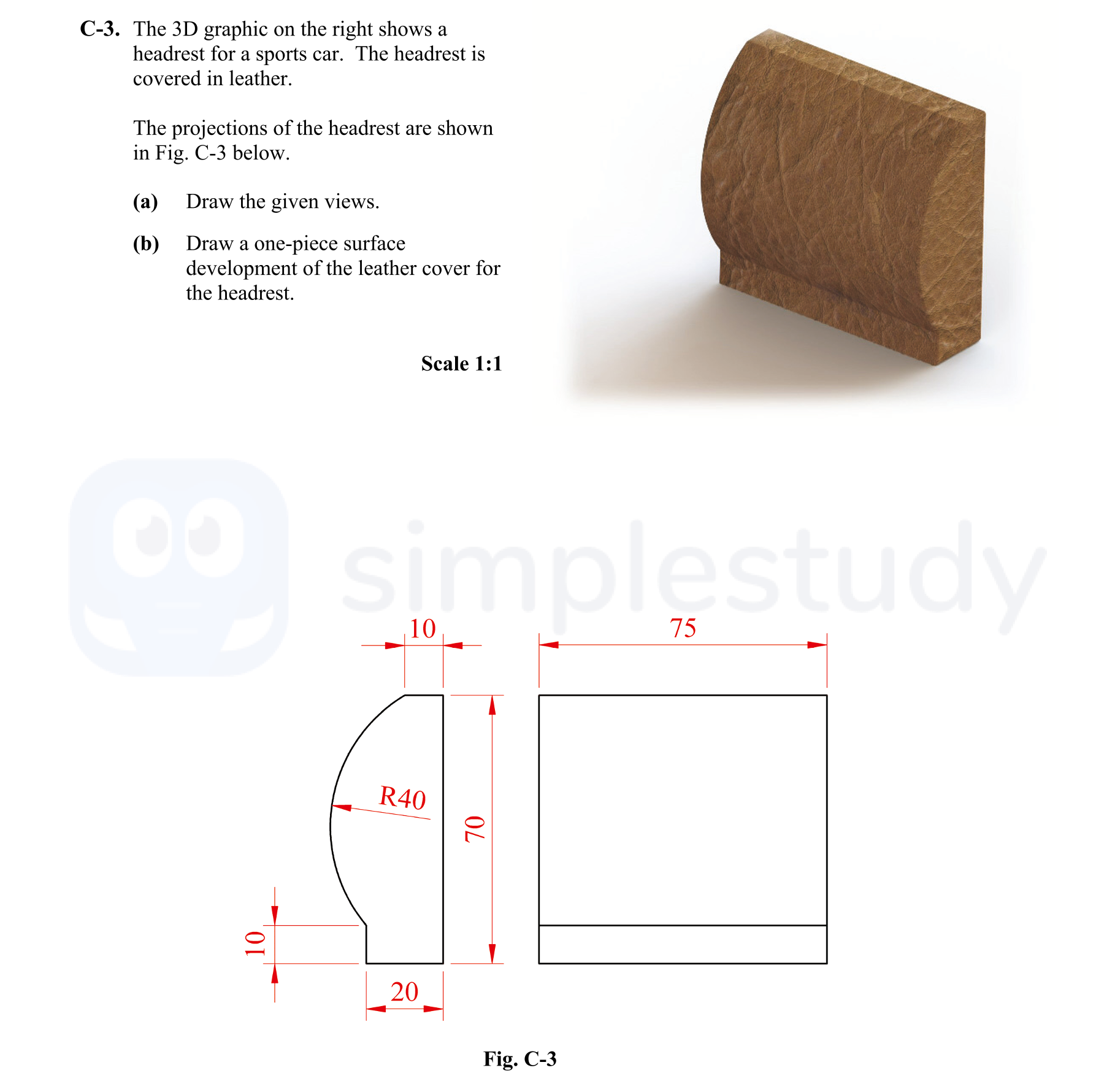

The 3D graphic on the right shows a headrest for a sports car. The headrest is covered in leather. The projections of the headrest are shown in Fig. C-3 below. (a)... show full transcript

Worked Solution & Example Answer:The 3D graphic on the right shows a headrest for a sports car - Leaving Cert DCG - Question C-3 - 2014

Step 1

Draw the outline elevation

96%

114 rated

Answer

To draw the outline elevation, begin with the basic shape of the headrest as indicated by the provided dimensions in Fig. C-3. This will include a height of 70 mm and a width of 75 mm. Consider the radius at the top of the headrest, which is set at R40, to represent the rounded edge correctly.

Step 2

Complete the elevation

99%

104 rated

Answer

After establishing the outline, fill in any internal features seen in the figure, ensuring that the contours and curves of the headrest are accurately depicted. Include the lower edge of 10 mm and 20 mm allocation as shown.

Step 3

Draw the edges of the end elevation

96%

101 rated

Answer

Illustrate the end elevation by representing the side profile of the headrest, incorporating the height and curve as established earlier. Verify that the projection meets the outlined top contour accurately.

Step 4

Establish centre and draw curve

98%

120 rated

Answer

To accurately finish the end elevation, locate the center of the headrest shape, which is crucial for symmetry. Then draw the curved outline to match the R40 radius indicated, ensuring a smooth transition from the straight edges to the curved areas. This part is essential for the aesthetic and functional aspects of the headrest.

Step 5

Development of back surface

97%

117 rated

Answer

To create the surface development, start with the back of the headrest. It can be approximated as a flat surface with the height and width copied from the elevation view.

Step 6

Development of top surface

97%

121 rated

Answer

From the back surface, unfold the top surface based on its width of 75 mm and account for the rounded edge, incorporating it into the development.

Step 7

Development of side surfaces

96%

114 rated

Answer

Each side of the headrest should be developed into a flat plane, measuring the total height from the top surface down to the base and the contour along the R40 curvature.

Step 8

Development of under surface

99%

104 rated

Answer

The under surface will mirror the back surface in width while keeping the height consistent. Include the straight segments and any curvature transitions.

Step 9

Development of front vertical surface

96%

101 rated

Answer

The front vertical surface develops as a straight piece that connects the top and bottom surfaces, presenting the exposed edge of the headrest.

Step 10

Division of curved surface

98%

120 rated

Answer

This section divides the curved surface into manageable sections for realistic material cutting. Practically, you can use radial lines based on the R40 curve to divide it into equal segments.

Step 11

Development of curved surface

97%

117 rated

Answer

The development of the curved surface will be a series of a few small trapezoidal shapes that overlap slightly, providing a flexible surface for material deployment.

Step 12

Presentation

97%

121 rated

Answer

Ensure that your drawings are clean, with consistent line weights and labels for each section of the development. Clear differentiations between folded and flat areas will enhance understanding and presentation quality.
