Question c

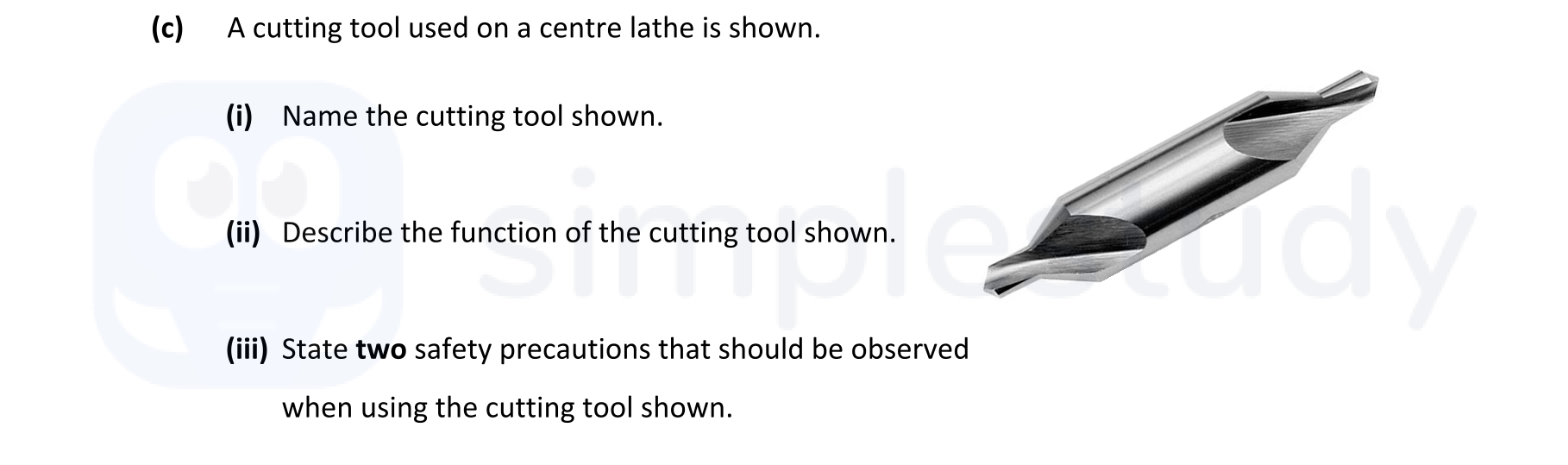

A cutting tool used on a centre lathe is shown.
(i) Name the cutting tool shown.
(ii) Describe the function of the cutting tool shown.
(iii) State two safety prec... show full transcript
Worked Solution & Example Answer:A cutting tool used on a centre lathe is shown - Leaving Cert Engineering - Question c - 2021
Step 1
Name the cutting tool shown.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The cutting tool shown is known as a slocombe or centre drill bit.
Step 2
Describe the function of the cutting tool shown.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The slocombe or centre drill bit is primarily used for drilling countersunk holes that accommodate lathe centres. It also initiates holes on centre when drilling on the lathe, ensuring precise starts for further operations.
Step 3
State two safety precautions that should be observed when using the cutting tool shown.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Always wear appropriate personal protective equipment (PPE), including goggles, to protect your eyes from debris.
Ensure that the drill is securely fastened and correctly positioned before drilling to prevent any accidents or injuries.
