Question 6

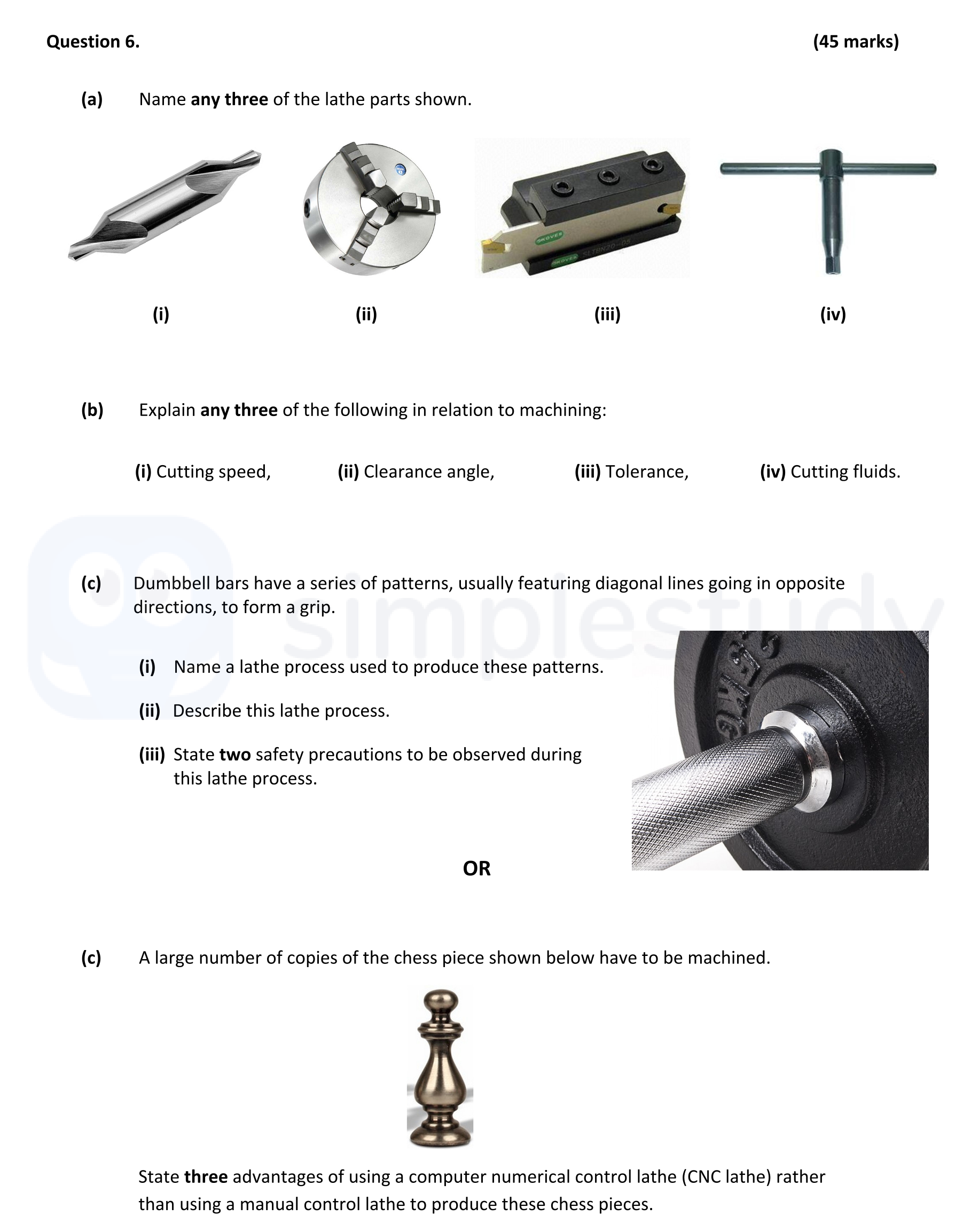

6.
(a) Name any three of the lathe parts shown.
(i)
(ii)
(iii)
(iv)
(b) Explain any three of the following in relation to machining:
(i) Cutting speed,... show full transcript
Worked Solution & Example Answer:6. (a) Name any three of the lathe parts shown - Leaving Cert Engineering - Question 6 - 2019
Step 1
Name any three of the lathe parts shown.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Slocomb drill / Centre drill
Self-centering three jaw chuck
Parting tool
Step 2
Explain any three of the following in relation to machining: Cutting speed.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Cutting speed is defined as the speed at which the work moves with respect to the tool.
Step 3
Explain any three of the following in relation to machining: Clearance angle.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Without a clearance angle, no cutting would take place. The clearance angle ensures that only the cutting edge of a tool makes contact with a piece. It provides clearance between the cutting tool face and the workpiece.
Step 4
Explain any three of the following in relation to machining: Tolerance.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Tolerance is the range within which the final size of a product can lie. Tolerance is the difference between the upper and lower limits.
Step 5
Explain any three of the following in relation to machining: Cutting fluids.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Cutting fluids are used in metal machining for a variety of reasons improving tool life, reducing the buildup of heat, improving surface finish and flushing away chips from the cutting zone.
Step 6
Name a lathe process used to produce these patterns.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Knurling
Step 7
Describe this lathe process.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A knurling tool is set against a piece of round section of bar. The lathe is set so that the chuck revolves at a low speed. The knurling tool is then pressed against the rotating steel and pressure is slowly increased until the tool produces a pattern on the bar.
Step 8
State two safety precautions to be observed during this lathe process.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Have no loose clothing hanging near the turning bar on the lathe/wear PPE.
Ensure that the workpiece is securely clamped before starting.
Step 9
State three advantages of using a computer numerical control lathe (CNC lathe) rather than using a manual control lathe to produce these chess pieces.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Easier and quicker to mass produce the piece shown on a CNC lathe.
Less chance of errors if made on a CNC lathe.
Reduced labor cost.
