Leaving Cert Engineering CNC & Centre Lathe: Name the cutting tool shown and

Question

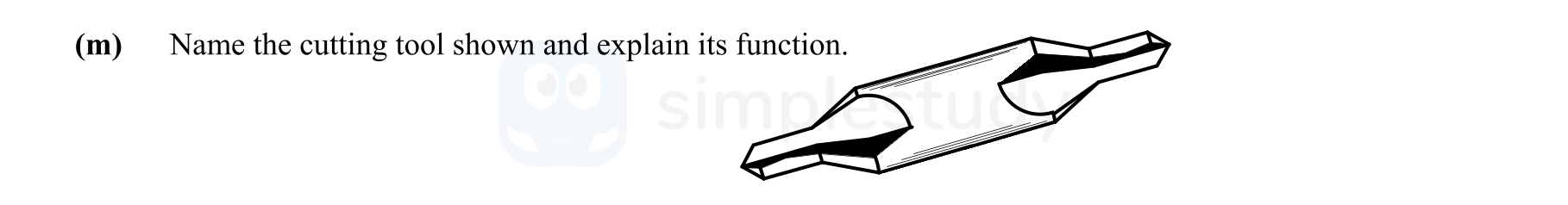

Name the cutting tool shown and explain its function.

The cutting tool shown is a combination centre drill, also known as a slocombe drill.

This tool is primarily used when working on a centre lathe. Its main function is to locate the centre of round bars during drilling. By creating a precise indent at the centre of the workpiece, it ensures that the subsequent drilling operations are accurate and well-aligned.

Additionally, a combination centre drill is utilized to produce the correct seating for the tailstock centre and/or headstock centre, which is essential for supporting work between centres. This functionality is vital for maintaining stability and accuracy in machining processes.

Name the cutting tool shown and explain its function - Leaving Cert Engineering - Question m - 2011

Worked Solution & Example Answer:Name the cutting tool shown and explain its function - Leaving Cert Engineering - Question m - 2011

Name the cutting tool shown

Explain its function
