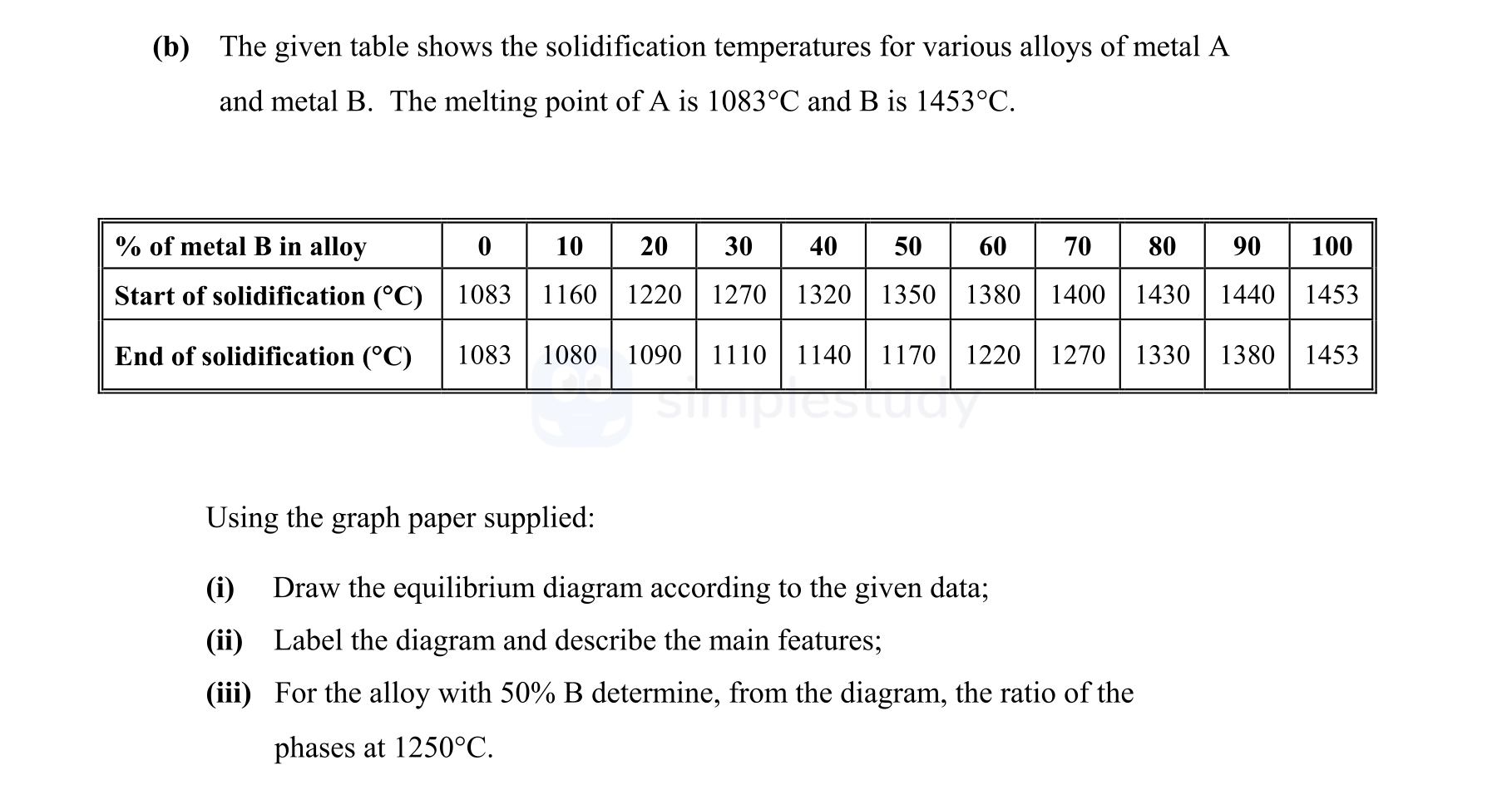

The given table shows the solidification temperatures for various alloys of metal A and metal B. The melting point of A is 1083°C and B is 1453°C. % of metal B in alloy | % of metal B in alloy | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | |-----------------------|---|----|----|----|----|----|----|----|----|----|----| | Start of solidification (°C) | 1083 | 1160 | 1220 | 1320 | 1350 | 1380 | 1440 | 1440 | 1440 | 1440 | 1453 | | End of solidification (°C) | 1083 | 1080 | 1090 | 1110 | 1140 | 1170 | 1220 | 1230 | 1330 | 1430 | 1453 | Using the graph paper supplied: (i) Draw the equilibrium diagram according to the given data; (ii) Label the diagram and describe the main features; (iii) For the alloy with 50% B determine, from the diagram, the ratio of the phases at 1250°C.

Photo AI

The given table shows the solidification temperatures for various alloys of metal A and metal B - Leaving Cert Engineering - Question b - 2007

Question b

The given table shows the solidification temperatures for various alloys of metal A and metal B. The melting point of A is 1083°C and B is 1453°C. % of metal B in a... show full transcript

Worked Solution & Example Answer:The given table shows the solidification temperatures for various alloys of metal A and metal B - Leaving Cert Engineering - Question b - 2007

Step 1

Draw the equilibrium diagram according to the given data

96%

114 rated

Answer

To draw the equilibrium diagram, plot the solidification temperatures against the percentage of metal B in the alloy.

Start with the temperature on the vertical axis ranging from 1083°C to 1453°C.
On the horizontal axis, plot the percentage of metal B from 0% to 100%.
Mark the start and end of solidification points for each percentage of metal B based on the provided data.
Connect the points for the start of solidification with a solid line (solidus line) and the end of solidification with a dashed line (liquidus line).

Ensure that the lines correctly represent the liquid and solid phases as per the melting temperatures of metals A and B.

Step 2

Label the diagram and describe the main features

99%

104 rated

Answer

The equilibrium diagram should include the following labels:

Liquid: The area above the liquidus line where the alloy is completely liquid.
Liquid + Solid: The region between the liquidus and solidus lines, indicating the alloy is in a pasty state.
Solid: The area below the solidus line, where the alloy is completely solid.

Descriptions:

Liquidus Line: Indicates the transition from fully liquid to pasty state. Above this line, the alloy is liquid.
Solidus Line: Marks the transition from pasty to solid state. Below this line, the alloy is cooling and entirely solid.
Both metals A and B are soluble in each other in the liquid state.

Step 3

For the alloy with 50% B determine, from the diagram, the ratio of the phases at 1250°C

96%

101 rated

Answer

From the diagram, find the positions corresponding to 50% B at the temperature of 1250°C:

Mass of solid (A): 26 units
Mass of liquid (C): 66 units

The ratio of phases at 1250°C consists of:

Solid: $26 - 50 = 24$
Liquid: $66 - 50 = 16$

Thus, the ratio of phases is:

$\text{Ratio of solid to liquid} = \frac{24}{16} = \frac{3}{2}$

The given table shows the solidification temperatures for various alloys of metal A and metal B - Leaving Cert Engineering - Question b - 2007

Worked Solution & Example Answer:The given table shows the solidification temperatures for various alloys of metal A and metal B - Leaving Cert Engineering - Question b - 2007

Draw the equilibrium diagram according to the given data

Label the diagram and describe the main features

For the alloy with 50% B determine, from the diagram, the ratio of the phases at 1250°C

Thus, the ratio of phases is:
