Question 2

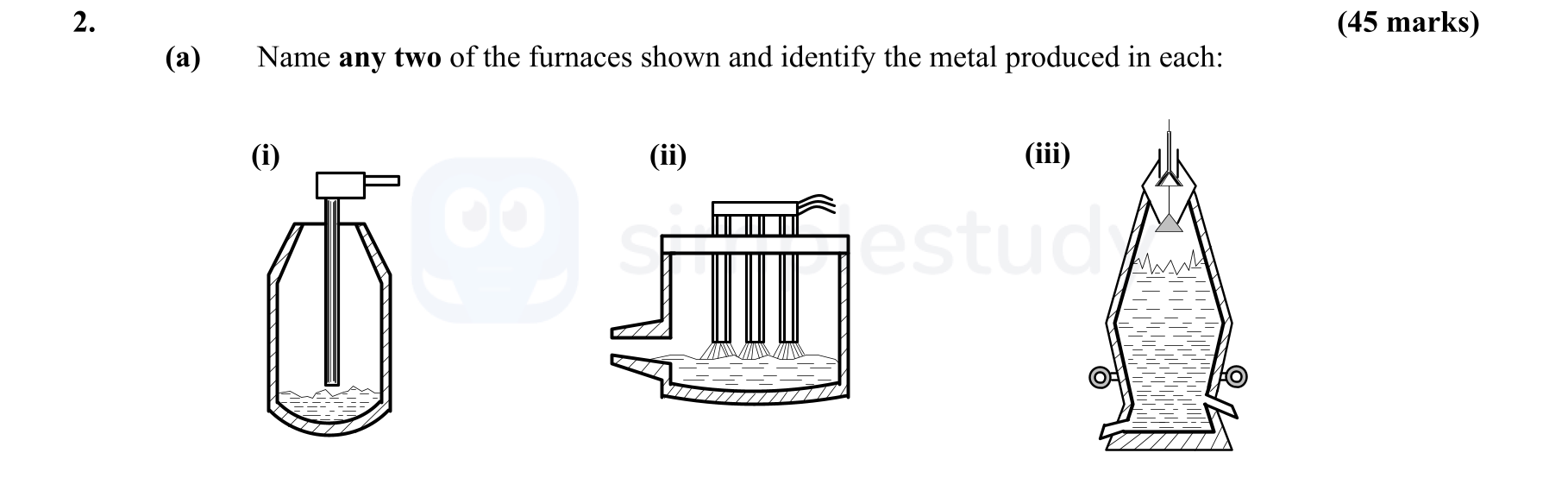

Name any two of the furnaces shown and identify the metal produced in each:
(i)
(ii)
(iii)
Worked Solution & Example Answer:Name any two of the furnaces shown and identify the metal produced in each:
(i)
(ii)
(iii) - Leaving Cert Engineering - Question 2 - 2007
Step 1
(i) Name the furnace and identify the metal produced
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The furnace shown in (i) is called the Basic Oxygen Furnace. It is used primarily in the steelmaking process, producing steel from molten iron and scrap metal.
Step 2
(ii) Name the furnace and identify the metal produced
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The furnace depicted in (ii) is the Electric Arc Furnace. This furnace also produces steel, utilizing electric arcs to melt steel scrap which then forms new steel.
