Question (c)(i)

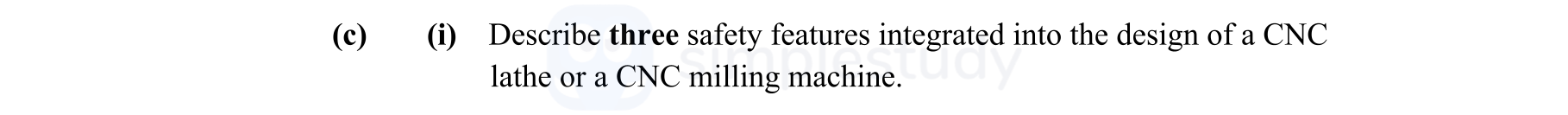

Describe three safety features integrated into the design of a CNC lathe or a CNC milling machine.
Worked Solution & Example Answer:Describe three safety features integrated into the design of a CNC lathe or a CNC milling machine. - Leaving Cert Engineering - Question (c)(i) - 2011
Step 1
Safety Feature 1: Acrylic Screen
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The machining area of CNC machines is often covered with a large acrylic screen. This transparent barrier acts as a physical shield, protecting operators from flying debris and minimizing the risk of accidental contact with moving parts.
Step 2
Safety Feature 2: Emergency Stop Button
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
An emergency stop button is prominently located on the front of the machine. This allows operators to quickly halt all machine operations in case of an emergency, minimizing potential injuries.
Step 3
Safety Feature 3: Interlocking Switches
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Interlocking switches are designed to prevent the machine from operating unless all necessary guards are securely in place. This safety feature ensures that the equipment cannot be used under unsafe conditions, thereby protecting the operator.
