Question 1

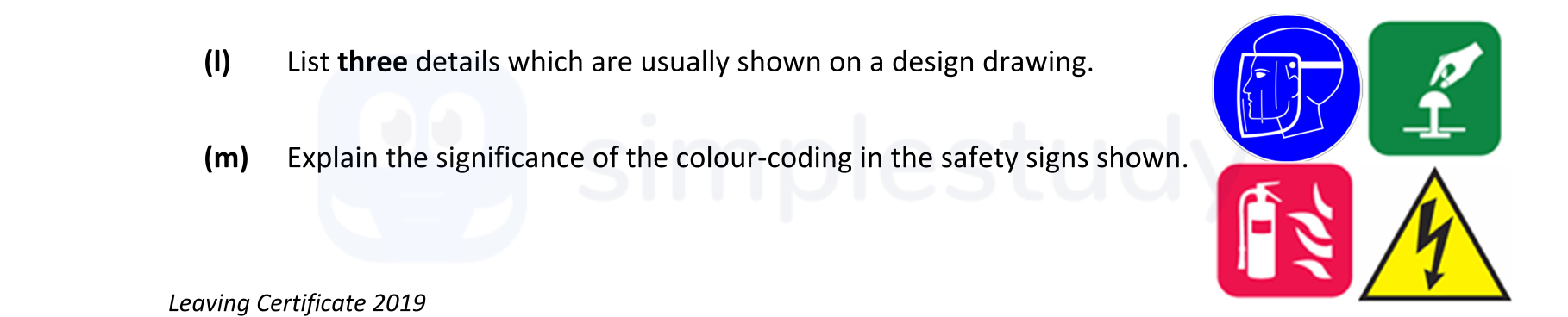

List three details which are usually shown on a design drawing. Explain the significance of the colour-coding in the safety signs shown.

Worked Solution & Example Answer:List three details which are usually shown on a design drawing - Leaving Cert Engineering - Question 1 - 2019

Step 1

96%

114 rated

Answer

Dimensions: Design drawings typically include precise measurements of the components to ensure proper sizing during manufacturing or construction.
Materials: The type of materials to be used, such as wood, metal, or plastic, is indicated in the drawing to guide selection and manufacturing processes.
Scale: A scale is indicated on the drawing, illustrating the ratio of the drawing's size to the actual size of the object, which helps in understanding the proportions of the design.

Step 2

99%

104 rated

Answer

Safety signs are designed to an international standard to include shape and colour. The following colours are used:

Red indicates prohibition, often related to fire safety or emergencies, signaling actions that should not be taken.
Yellow serves as a caution to alert individuals to possible dangers or hazards in the area.
Green signifies a positive action, denoting safe conditions or first aid locations.
Blue denotes mandatory actions or information signage, indicating requirements that must be followed.

The standardization of these colour codes allows workshop users to be aware of hazards in the workplace, promoting safety and efficiency.
