a) (i) Explain two heat treatment processes carried out at cutting edge A during the manufacture of the cold chisel shown - Leaving Cert Engineering - Question a - 2019

Question a

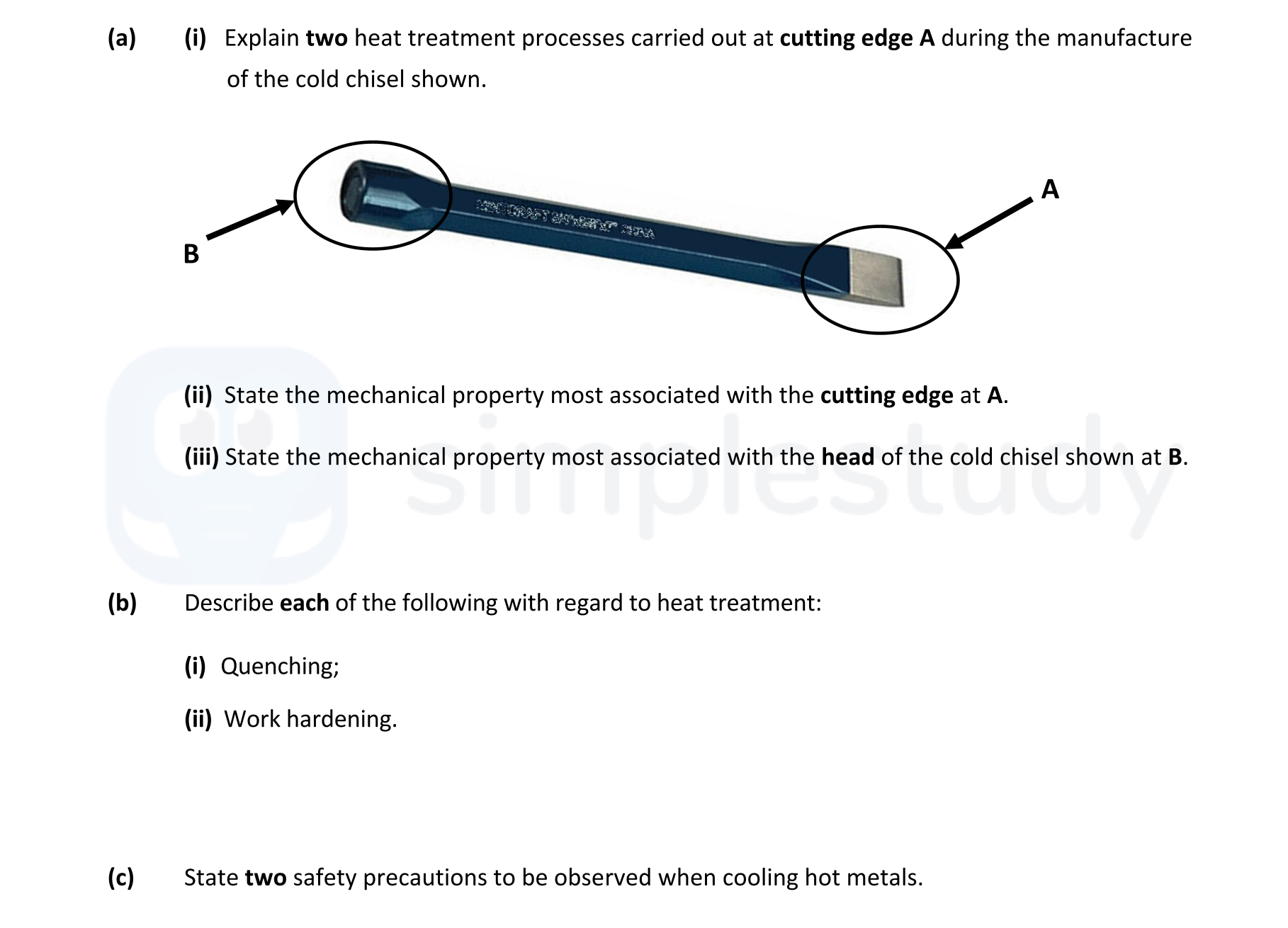

a)--(i)-Explain-two-heat-treatment-processes-carried-out-at-cutting-edge-A-during-the-manufacture-of-the-cold-chisel-shown-Leaving Cert Engineering-Question a-2019.png

a) (i) Explain two heat treatment processes carried out at cutting edge A during the manufacture of the cold chisel shown. (ii) State the mechanical property most ... show full transcript

Worked Solution & Example Answer:a) (i) Explain two heat treatment processes carried out at cutting edge A during the manufacture of the cold chisel shown - Leaving Cert Engineering - Question a - 2019

Step 1

Explain two heat treatment processes carried out at cutting edge A during the manufacture of the cold chisel shown.

96%

114 rated

Answer

Hardening: This process involves heating the cold chisel's cutting edge to a temperature where it becomes cherry red (around 900°C) and then rapidly cooling it by quenching in water. This treatment increases the hardness of the material, making it suitable for cutting operations.
Tempering: After hardening, tempering is performed to reduce brittleness. The tip A is heated to about 200°C to 300°C, allowing some relaxation of the internal stresses while maintaining hardness.

Step 2

State the mechanical property most associated with the cutting edge at A.

99%

104 rated

Answer

The mechanical property most associated with the cutting edge at A is hardness, as hardening processes enhance the material's ability to resist deformation and wear during cutting.

Step 3

State the mechanical property most associated with the head of the cold chisel shown at B.

96%

101 rated

Answer

The mechanical property most associated with the head B is toughness. This property allows the material to absorb energy and withstand impacts without fracturing.

Step 4

Describe each of the following with regard to heat treatment: Quenching.

98%

120 rated

Answer

Quenching is a rapid cooling process employed after heating. When a cherry red metal is immersed in cold water, it cools quickly, increasing its hardness. However, this can also induce brittleness, which may necessitate further treatments like tempering.

Step 5

Describe each of the following with regard to heat treatment: Work hardening.

97%

117 rated

Answer

Work hardening occurs when a metal is mechanically deformed, such as by hammering or shaping. This process increases the material's strength and hardness due to dislocation movements within the metal's crystal structure.

Step 6

State two safety precautions to be observed when cooling hot metals.

97%

121 rated

Answer

Wear protective clothing to guard against hot water splashes or rising steam.
Be cautious of flames when cooling hot metals in oils, to prevent fire hazards.
