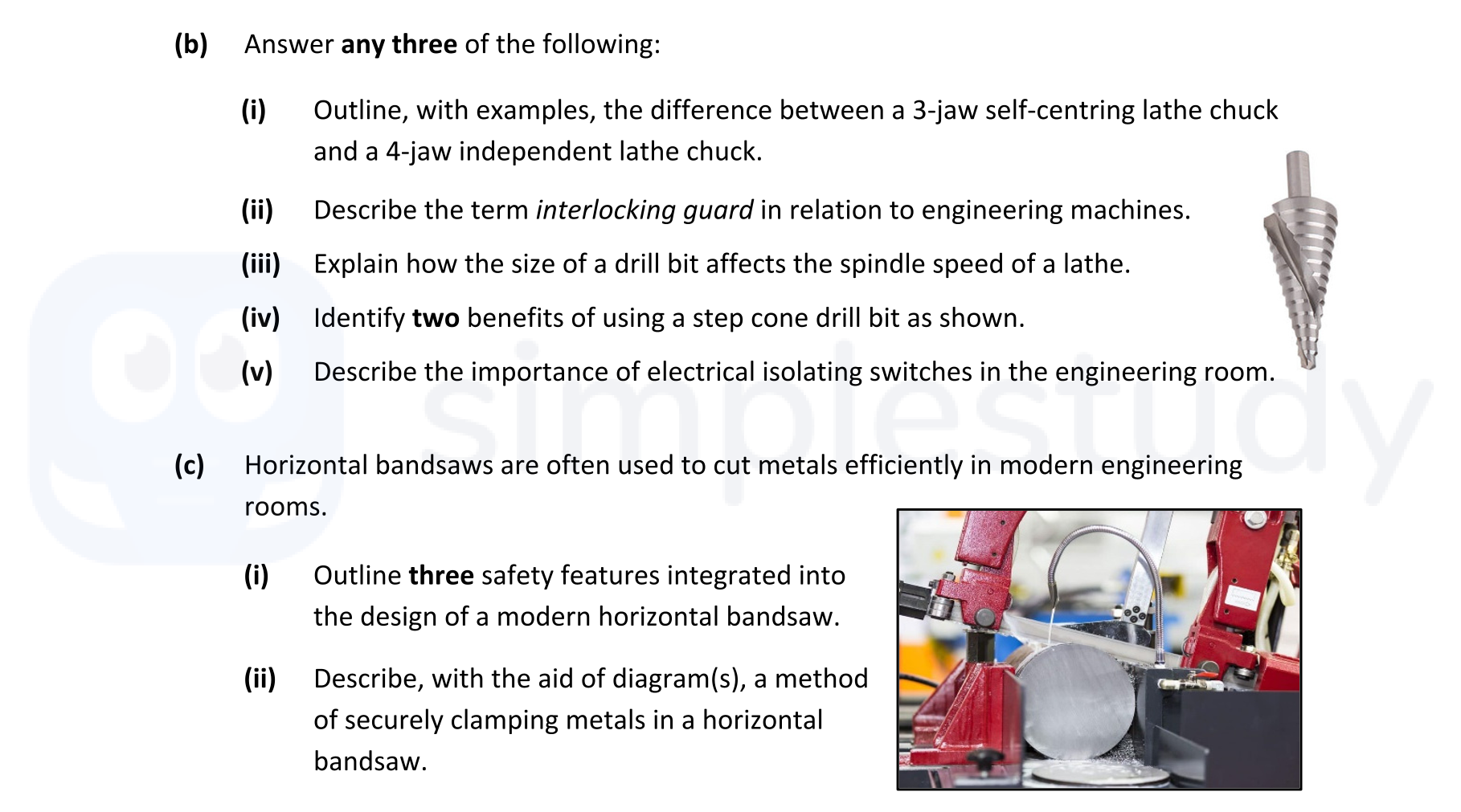

Answer any three of the following: (i) Outline, with examples, the difference between a 3-jaw self-centering lathe chuck and a 4-jaw independent lathe chuck - Leaving Cert Engineering - Question b - 2022

An interlocking guard is a safety device designed to prevent a machine from operating when a guard is opened. It typically involves a micro switch connected to the hinge point of the guard. If the guard is opened, the micro switch breaks the circuit and stops the machine from operating, thereby protecting the operator from potential hazards. Interlocking guards are standard on various machines, including lathes and drilling machines.

The spindle speed (N) of a lathe is determined by the formula:

$N = S \times \frac{1000}{\pi \times D}$

where "D" is the diameter of the drill bit. As the diameter of the drill bit increases, the spindle speed must decrease to maintain optimal cutting conditions. Therefore, a larger drill bit necessitates a slower spindle speed to prevent overheating and excessive wear on the tool, resulting in a smoother finish and greater tool life.

1. Reduced Need for Multiple Bits: A step cone drill bit allows for drilling various sizes with a single tool, eliminating the need to frequently change bits and thus increasing efficiency during operations.
2. Greater Precision and Control: The stepped design provides enhanced control when drilling into materials, minimizing the chances of wandering or misalignment, especially in softer materials.

Electrical isolating switches are crucial for the safety of workers in engineering environments. They ensure that equipment is safely disconnected from the power supply during maintenance or emergencies. This prevents unintentional machine operation, which could lead to accidents. These switches allow for quick isolation of machines and can be manually operated, providing a straightforward approach to managing electrical circuits safely.

1. Blade Guarding: The bandsaw is designed with a blade guard that covers the majority of the blade's length to prevent accidental contact.
2. Sturdy Bed Construction: A robust bed construction helps absorb vibrations and provides stability during cutting operations, enhancing both safety and precision.
3. Automatic Stop Feature: Modern bandsaws often have automatic stopping mechanisms that halt the machine if certain conditions are met, such as the blade becoming jammed or if excessive force is detected.

Securing materials in a horizontal bandsaw typically involves utilizing a clamping mechanism that holds the workpiece firmly against the saw bed. A typical design will include a moving clamp that can be adjusted along a guide rail.

The moving clamp is pushed against the material to ensure it is tightly held in place, preventing movement during cutting.

A diagram would illustrate the clamping mechanism, highlighting the locking lever that tightens the clamp against the material, reinforcing the stability needed to avoid crushing or damaging the workpiece.
