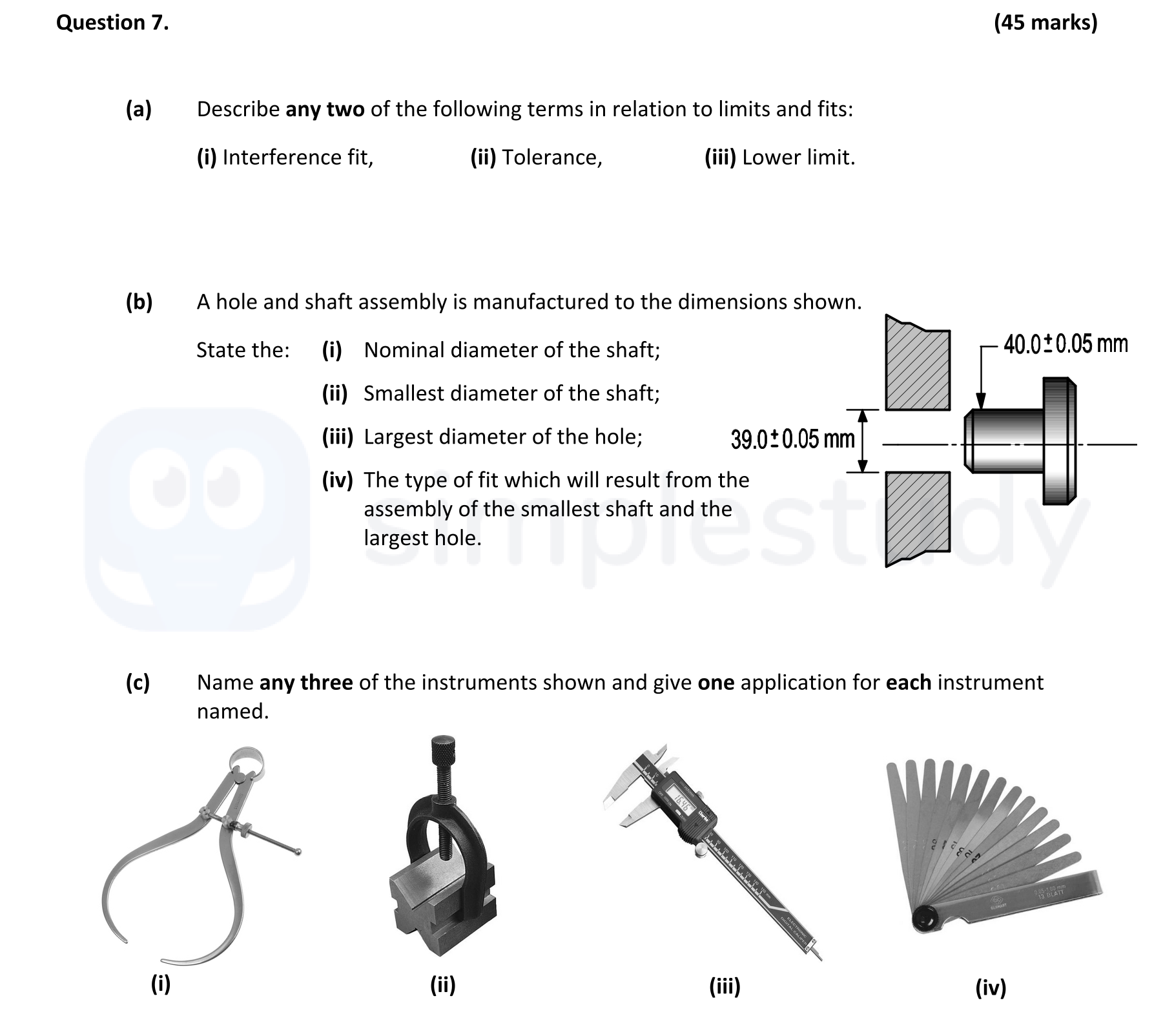

Question 7
Describe any two of the following terms in relation to limits and fits:
(i) Interference fit,
(ii) Tolerance,
(iii) Lower limit.
A hole and shaft assembly is manufa... show full transcript
Worked Solution & Example Answer:Describe any two of the following terms in relation to limits and fits:
(i) Interference fit,
(ii) Tolerance,
(iii) Lower limit - Leaving Cert Engineering - Question 7 - 2017
Step 1
(i) Interference fit
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Interference fit occurs when the smallest shaft is larger than the largest hole. This type of fit requires significant force for assembly, ensuring a tight, secure connection between components.
Step 2
(ii) Tolerance
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Tolerance is the allowable variation in dimensions, described as the difference between the upper and lower limits. For example, a component with a dimension of 15.00 mm could have a tolerance of ±0.07 mm, meaning the acceptable size would range from 14.93 mm to 15.07 mm.
Step 3
(i) Nominal diameter of the shaft
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The nominal diameter of the shaft is 40.00 mm.
Step 4
(ii) Smallest diameter of the shaft
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The smallest diameter of the shaft is 39.95 mm.
Step 5
(iii) Largest diameter of the hole
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The largest diameter of the hole is 40.05 mm.
Step 6
(iv) The type of fit
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The type of fit that will result from the assembly of the smallest shaft and the largest hole is an interference fit.
Step 7
(i) Outside calipers
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Outside calipers are used for gauging the outside diameter of round bars.
Step 8
(ii) Vee block & clamp
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A vee block and clamp is utilized for holding round bars when drilling or marking out.
Step 9
(iii) Digital calipers
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Digital calipers are used to accurately display the inside, outside, and depth measurements of components.
Step 10
(iv) Feeler gauges
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Feeler gauges are used to accurately set the gap or distance between two surfaces, such as in spark plug adjustments.
