Question iv

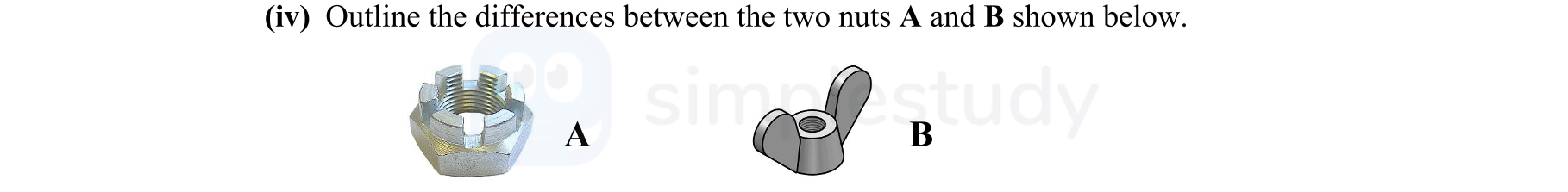

Outline the differences between the two nuts A and B shown below.
A
B
Worked Solution & Example Answer:Outline the differences between the two nuts A and B shown below - Leaving Cert Engineering - Question iv - 2011
Step 1
A: Describe Nut A
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Nut A is a castle nut designed with notches along the top edge. This allows it to be secured in place by inserting a pin through any of these top grooves. This feature enhances stability and is commonly used in applications requiring locking mechanisms.
Step 2
B: Describe Nut B
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Nut B is a wing nut which possesses protruding 'wings' on either side, allowing it to be tightened or loosened by hand. This makes it easily adjustable without the need for tools, making it suitable for applications where quick assembly or disassembly is necessary.
