Identify the mechanism shown opposite and give one appropriate use for it. - Leaving Cert Engineering - Question f - 2019
Question f

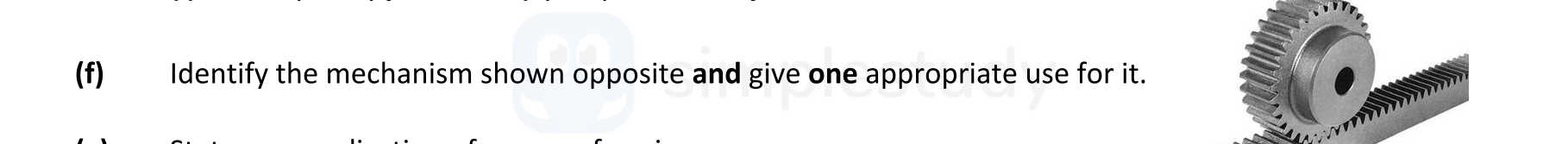

Identify the mechanism shown opposite and give one appropriate use for it.
Worked Solution & Example Answer:Identify the mechanism shown opposite and give one appropriate use for it. - Leaving Cert Engineering - Question f - 2019
Step 1
Identify the mechanism
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The mechanism shown in the image is known as a rack and pinion. This system consists of a circular gear (the pinion) that engages with a linear gear (the rack), allowing rotational motion to be converted into linear motion.
Step 2
Provide one appropriate use
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
One appropriate use for a rack and pinion mechanism is for adjusting the height of the table on a pillar drill. This allows for precision in drilling operations by facilitating easy height adjustments.
