Name the two drive systems shown at (i) and (ii) - Leaving Cert Engineering - Question m - 2014
Question m

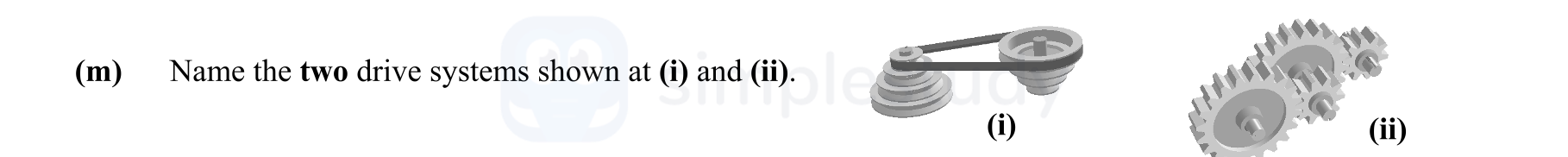

Name the two drive systems shown at (i) and (ii).
(i)
(ii)
Worked Solution & Example Answer:Name the two drive systems shown at (i) and (ii) - Leaving Cert Engineering - Question m - 2014
Step 1
(i)
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The drive system shown at (i) is known as Stepped pulleys. This system allows for variable speed adjustments in machinery by changing the position of the belt on different diameter pulleys.
Step 2
(ii)
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The drive system depicted at (ii) is referred to as a Compound gear train. This configuration allows for multiple gears to transmit torque and rotational speed, enabling the design of more compact and efficient mechanisms.
