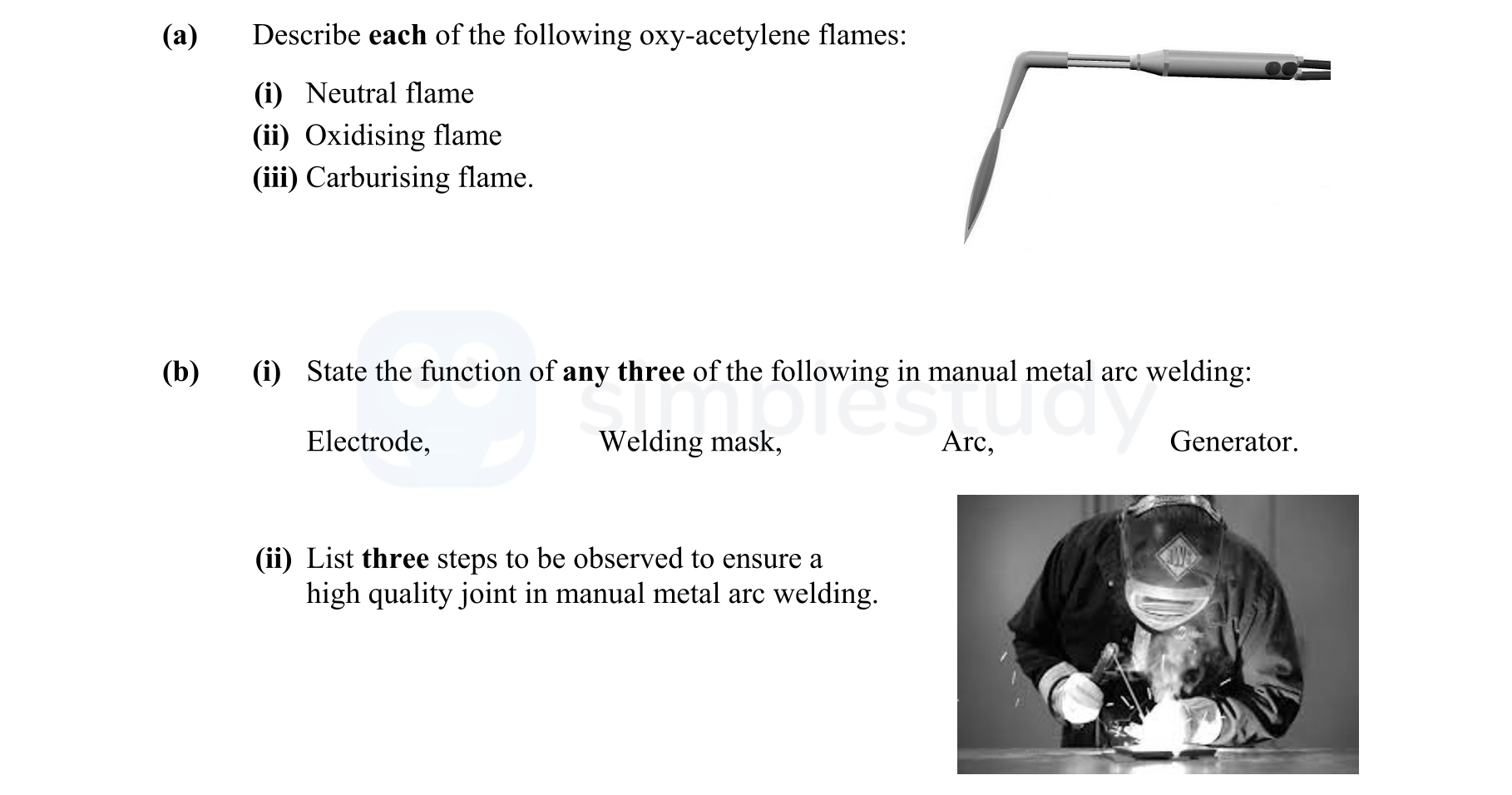

Describe each of the following oxy-acetylene flames:
(i) Neutral flame - Leaving Cert Engineering - Question a - 2016
Question a
Describe each of the following oxy-acetylene flames:
(i) Neutral flame.
(ii) Oxidising flame.
(iii) Carburising flame.
Worked Solution & Example Answer:Describe each of the following oxy-acetylene flames:
(i) Neutral flame - Leaving Cert Engineering - Question a - 2016
Step 1
Neutral flame
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A neutral flame has equal proportions of acetylene and oxygen, which provides a balanced combustion. It is characterized by a rounded inner cone and is used primarily for general welding tasks.
Step 2
Oxidising flame
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
An oxidising flame contains more oxygen than acetylene. It can be identified by its pointed inner blue cone and is mainly used for brazing and welding of brasses, where a higher temperature is required.
Step 3
Carburising flame
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A carburising flame has a greater ratio of acetylene than oxygen. It is recognized by an additional feather on the inner cone. The excess acetylene can be used to add carbon to a mild steel welded joint, which enhances hardness.
