Examine the diagram above which illustrates the development of a volcanic hot spot and answer each of the following questions - Leaving Cert Geography - Question 5 - 2021
Question 5

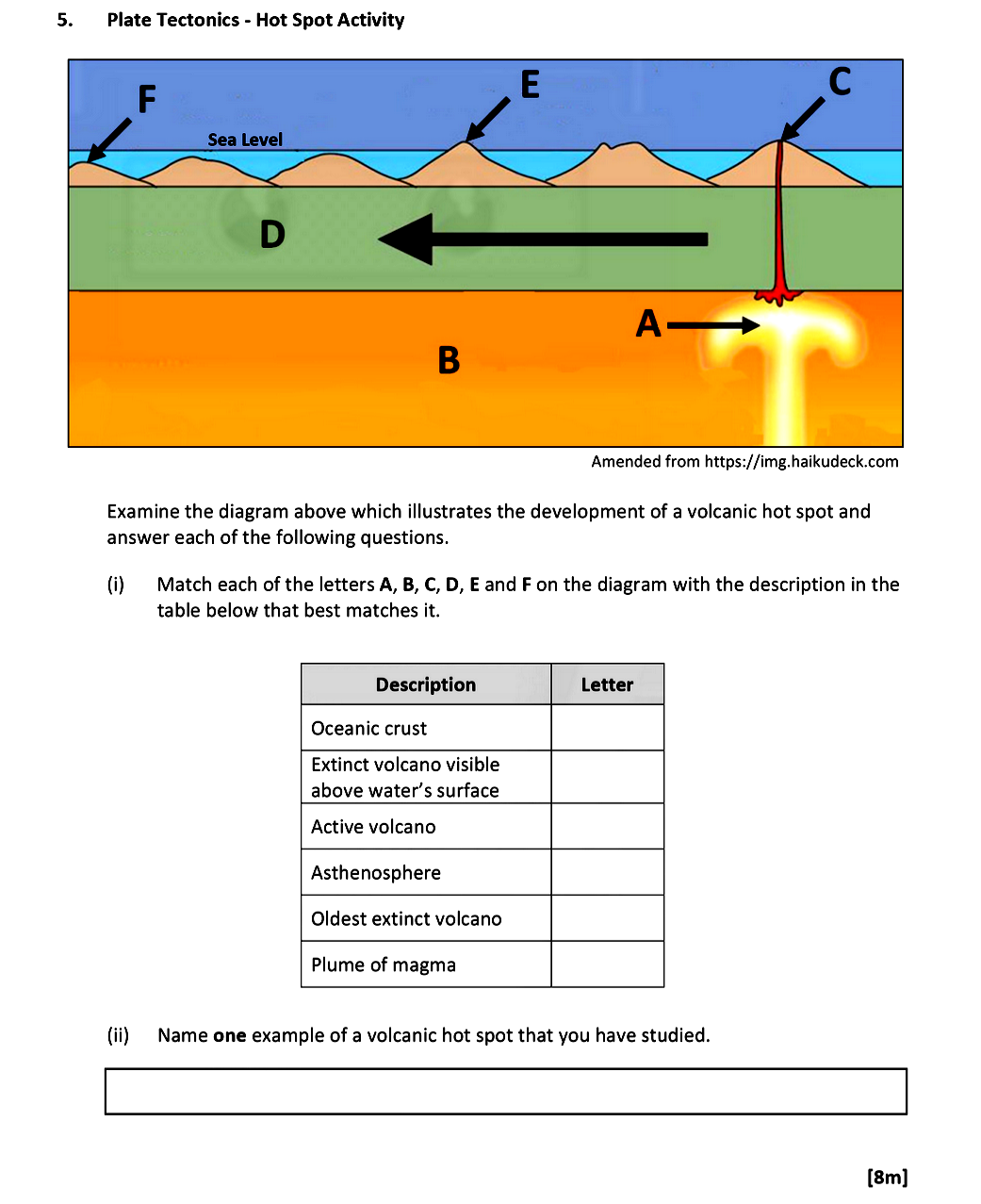

Examine the diagram above which illustrates the development of a volcanic hot spot and answer each of the following questions.
(i) Match each of the letters A, B, C... show full transcript
Worked Solution & Example Answer:Examine the diagram above which illustrates the development of a volcanic hot spot and answer each of the following questions - Leaving Cert Geography - Question 5 - 2021
Step 1
Match each of the letters A, B, C, D, E and F with the description
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Description
Letter
Oceanic crust
D
Extinct volcano visible above water’s surface
E
Active volcano
C
Asthenosphere
B
Oldest extinct volcano
F
Plume of magma
A
Step 2
Name one example of a volcanic hot spot that you have studied
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
One example of a volcanic hot spot is the Hawaiian Islands.
