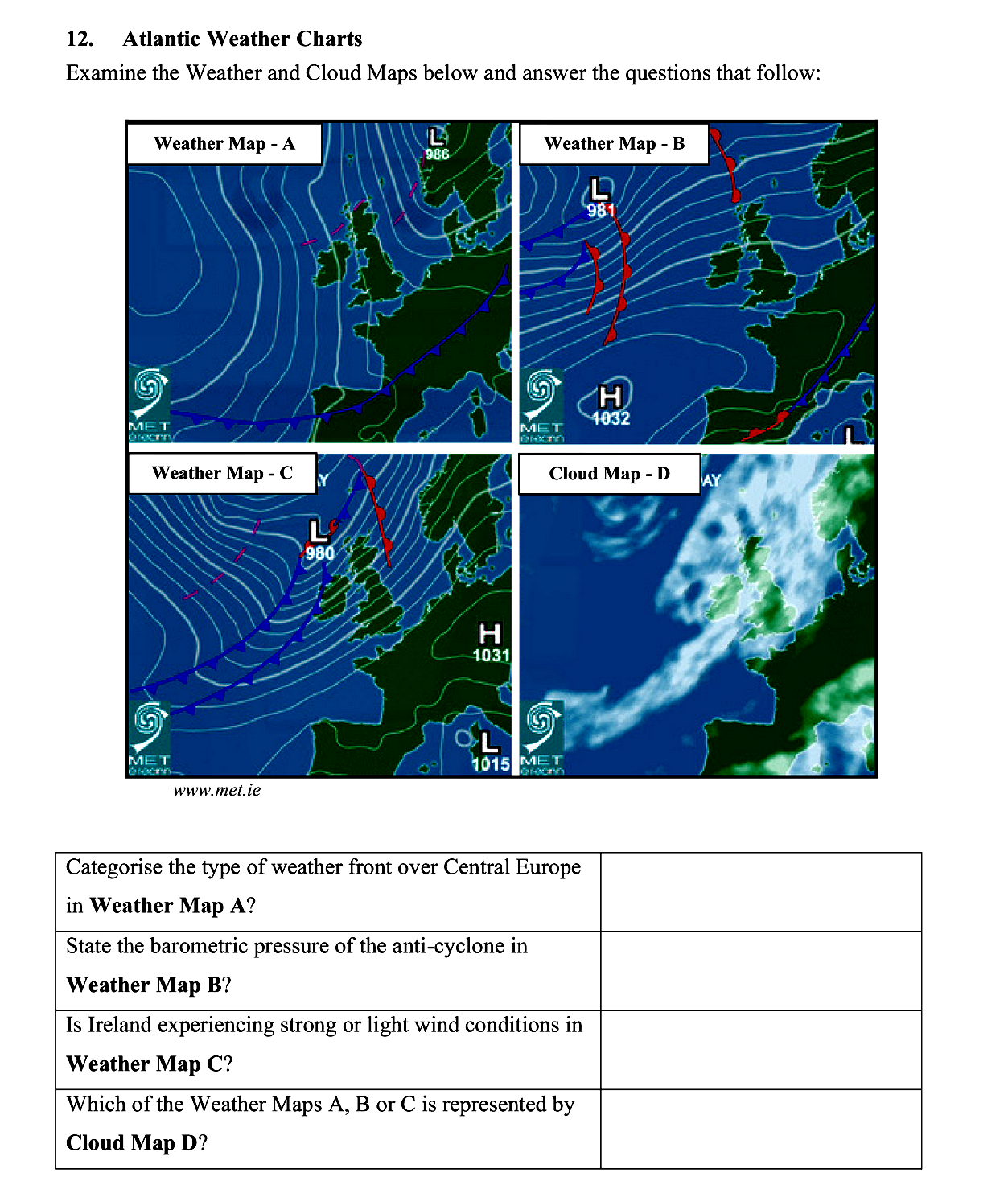

Examine the Weather and Cloud Maps below and answer the questions that follow:
Categorise the type of weather front over Central Europe in Weather Map A?
State the barometric pressure of the anti-cyclone in Weather Map B?
Is Ireland experiencing strong or light wind conditions in Weather Map C?
Which of the Weather Maps A, B or C is represented by Cloud Map D? - Leaving Cert Geography - Question 12 - 2009
Question 12
Examine the Weather and Cloud Maps below and answer the questions that follow:
Categorise the type of weather front over Central Europe in Weather Map A?
State the... show full transcript
Worked Solution & Example Answer:Examine the Weather and Cloud Maps below and answer the questions that follow:
Categorise the type of weather front over Central Europe in Weather Map A?
State the barometric pressure of the anti-cyclone in Weather Map B?
Is Ireland experiencing strong or light wind conditions in Weather Map C?
Which of the Weather Maps A, B or C is represented by Cloud Map D? - Leaving Cert Geography - Question 12 - 2009
Step 1
Categorise the type of weather front over Central Europe in Weather Map A?
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The weather front depicted in Weather Map A is identified as a Cold Front. This classification is based on the typical symbols used to represent cold fronts, which feature triangular shapes pointing in the direction of movement.
Step 2
State the barometric pressure of the anti-cyclone in Weather Map B?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The barometric pressure of the anti-cyclone in Weather Map B is 1032 mb (hectopascals). This value indicates a high-pressure system, which is typically associated with fair weather.
Step 3
Is Ireland experiencing strong or light wind conditions in Weather Map C?
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Ireland is experiencing strong wind conditions in Weather Map C. This conclusion can be drawn from the closely spaced isobars, which indicate a significant pressure gradient and thus imply brisk winds.
Step 4
Which of the Weather Maps A, B or C is represented by Cloud Map D?
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Cloud Map D is represented by Weather Map C. This identification is made based on the cloud cover characteristics shown in Map D and the corresponding weather patterns in Map C.
