A company has to design a rectangular box for a new range of jellybeans - Leaving Cert Mathematics - Question 7 - 2014

Question icon

Question 7

A-company-has-to-design-a-rectangular-box-for-a-new-range-of-jellybeans-Leaving Cert Mathematics-Question 7-2014.png

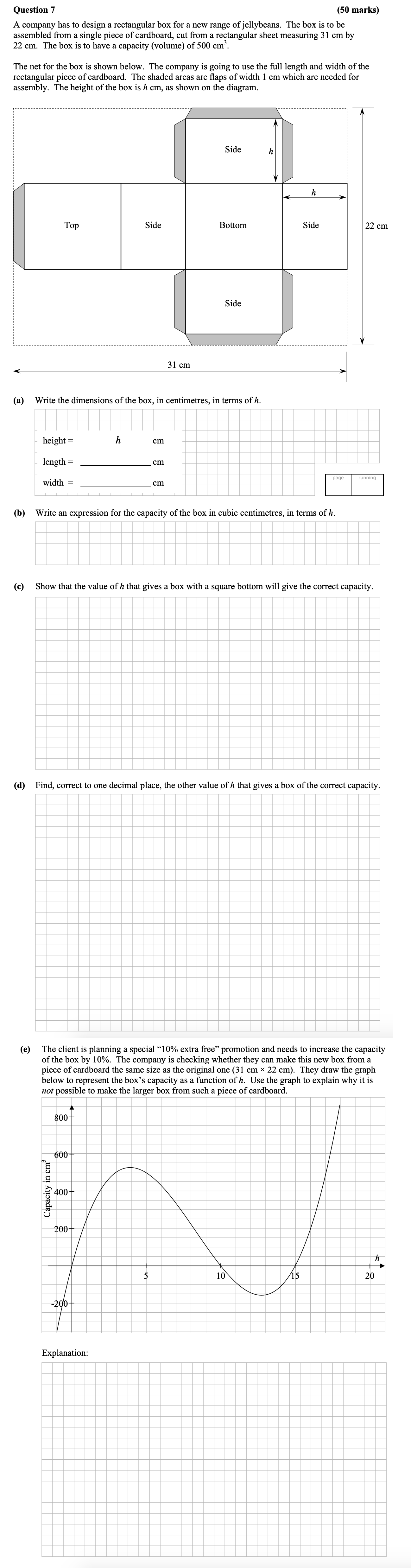

A company has to design a rectangular box for a new range of jellybeans. The box is to be assembled from a single piece of cardboard, cut from a rectangular sheet me... show full transcript

Worked Solution & Example Answer:A company has to design a rectangular box for a new range of jellybeans - Leaving Cert Mathematics - Question 7 - 2014

Step 1

Write the dimensions of the box, in centimetres, in terms of $h$.

96%

114 rated

Answer

To find the dimensions of the box:

  • The height is given as hh cm.

  • The length can be determined by the total length of the cardboard minus the flaps. Since the total length is 31 cm and the width of the flaps is 1 cm on each side, the equation is:

    l = 15 - h \, cm$$
  • The width can also be calculated similarly, given the total width of the cardboard:

    w = 20 - 2h \, cm$$

Thus, the dimensions of the box are:

  • height = hh cm
  • length = (15h)(15 - h) cm
  • width = (202h)(20 - 2h) cm

Step 2

Write an expression for the capacity of the box in cubic centimetres, in terms of $h$.

99%

104 rated

Answer

The capacity of the box VV can be expressed as:

V=extlengthimesextwidthimesextheight V = ext{length} imes ext{width} imes ext{height}

Substituting the expressions for length, width, and height:

V=(15h)(202h)(h)V = (15 - h)(20 - 2h)(h)

Expanding this gives:

= 2h^3 - 50h^2 + 300h \, cm³$$

Step 3

Show that the value of $h$ that gives a box with a square bottom will give the correct capacity.

96%

101 rated

Answer

For the bottom of the box to be square, the length must equal the width:

Setting length equal to width:

15h=202h15 - h = 20 - 2h

Solving this equation:

h = 5 $$ Using $h = 5$ into the capacity equation $$ V = (15 - 5)(20 - 2 imes 5)(5) \ = (10)(10)(5) \ \\ = 500 \, cm³$$ Thus, $h = 5$ gives the correct capacity.

Step 4

Find, correct to one decimal place, the other value of $h$ that gives a box of the correct capacity.

98%

120 rated

Answer

To find the other value of hh, we must solve the equation for capacity:

2h350h2+300h500=02h^3 - 50h^2 + 300h - 500 = 0

Factoring out the previous value of h=5h = 5 provides:

2h350h2+300h500=(h5)(2h240h+100)2h^3 - 50h^2 + 300h - 500 = (h - 5)(2h^2 - 40h + 100)

Now, using the quadratic formula on 2h240h+100=02h^2 - 40h + 100 = 0 leads to:

= \frac{40 \pm \sqrt{1600 - 800}}{4} \ = \frac{40 \pm \sqrt{800}}{4} \ = \frac{40 \pm 20\sqrt{2}}{4} \ = 10 \pm 5\sqrt{2}$$ Calculating both results gives: $$h \approx 17.1, 2.9$$ The other value of $h$ is approximately 2.9 when rounded to one decimal place.

Step 5

Explain why it is not possible to make the larger box.

97%

117 rated

Answer

The client requires a new box with a capacity increased by 10%:

550=1.1×500550 = 1.1 \times 500

Referring to the graph, the capacity represented will only intersect with the horizontal line at one point, which is greater than 15 for hh. The maximum allowable height is set to ensure that hh must be greater than 1 and less than 15 for feasibility. Thus, if the height exceeds 15, it violates the material constraints of the original cardboard.

Therefore, it is not physically possible to construct a larger box from the same piece of cardboard.
