The circle c has centre P(-2, -1) and passes through the point Q(3, 1) - Leaving Cert Mathematics - Question 4 - 2013

Question icon

Question 4

The-circle-c-has-centre-P(-2,--1)-and-passes-through-the-point-Q(3,-1)-Leaving Cert Mathematics-Question 4-2013.png

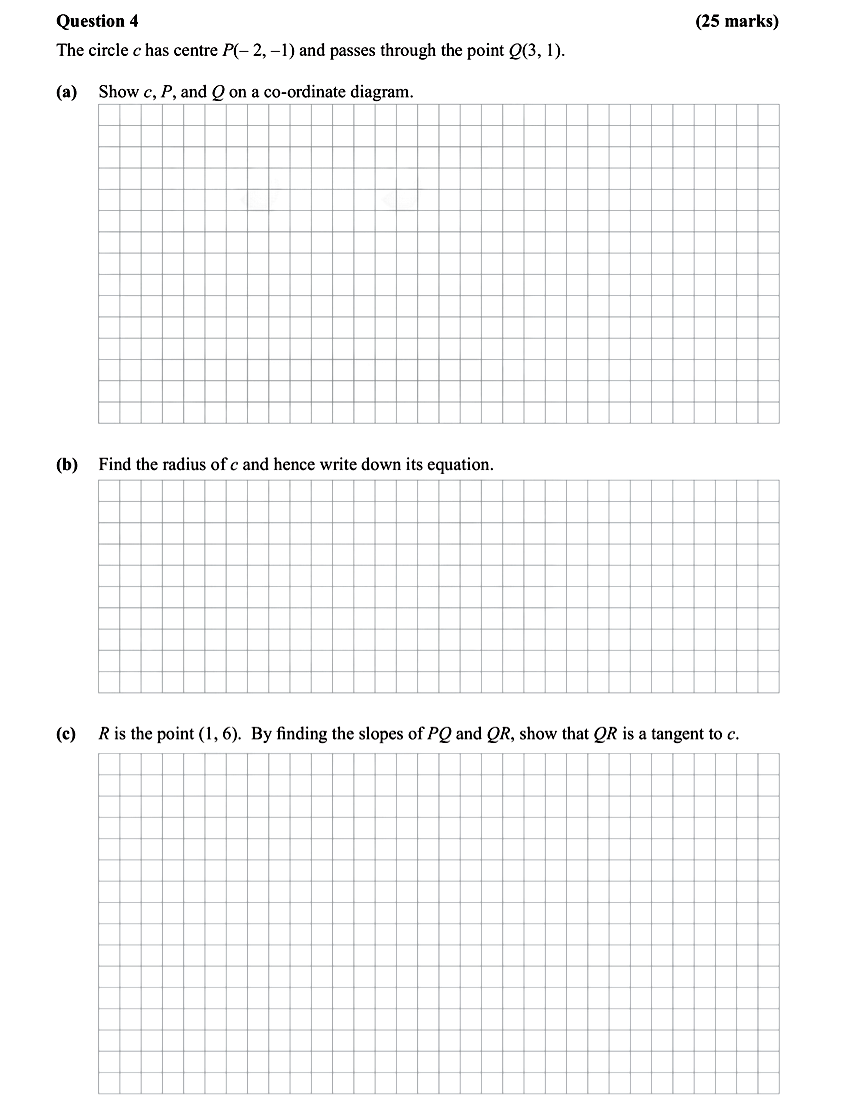

The circle c has centre P(-2, -1) and passes through the point Q(3, 1). (a) Show c, P, and Q on a co-ordinate diagram. (b) Find the radius of c and hence write dow... show full transcript

Worked Solution & Example Answer:The circle c has centre P(-2, -1) and passes through the point Q(3, 1) - Leaving Cert Mathematics - Question 4 - 2013

Step 1

Show c, P, and Q on a co-ordinate diagram.

96%

114 rated

Answer

To show circles and points on a coordinate diagram:

  1. Identify the center of the circle, P, at the point (-2, -1).
  2. Plot the point Q at (3, 1).
  3. Draw the circle c using the radius calculated in part (b).
  4. Ensure that the circle passes through point Q.

Step 2

Find the radius of c and hence write down its equation.

99%

104 rated

Answer

To find the radius of circle c:

  1. Calculate the distance from center P(-2, -1) to point Q(3, 1) using the distance formula:

    r=extdistance(P,Q)=sqrt(xQxP)2+(yQyP)2=sqrt(3(2))2+(1(1))2=sqrt(5)2+(2)2=sqrt25+4=sqrt29r = ext{distance}(P, Q) = \\sqrt{(x_Q - x_P)^2 + (y_Q - y_P)^2} = \\sqrt{(3 - (-2))^2 + (1 - (-1))^2} = \\sqrt{(5)^2 + (2)^2} = \\sqrt{25 + 4} = \\sqrt{29}

  2. The radius r is thus ( r = \sqrt{29} ).

  3. The equation of the circle is given by

    (x+2)2+(y+1)2=29(x + 2)^2 + (y + 1)^2 = 29.

Step 3

R is the point (1, 6). By finding the slopes of PQ and QR, show that QR is a tangent to c.

96%

101 rated

Answer

To determine if QR is a tangent to circle c:

  1. Calculate the slope of line segment PQ:

    • Using the slope formula ( m = \frac{y_2 - y_1}{x_2 - x_1} ):

    mPQ=1(1)3(2)=25m_{PQ} = \frac{1 - (-1)}{3 - (-2)} = \frac{2}{5}

  2. Determine the coordinates of point R, which is (1, 6).

  3. Calculate the slope of segment QR:

    mQR=6113=52=52m_{QR} = \frac{6 - 1}{1 - 3} = \frac{5}{-2} = -\frac{5}{2}

  4. For a tangent line, the product of the slopes of the two lines (PQ and QR) should equal -1:

    mPQ×mQR=25×(52)=1m_{PQ} \times m_{QR} = \frac{2}{5} \times \left(-\frac{5}{2}\right) = -1

  5. This calculation confirms that line QR is tangential to circle c.
