The depth of water, in metres, at a certain point in a harbour varies with the tide and can be modelled by a function of the form $$f(t) = a + b \cos ct$$ where $t$ is the time in hours from the first high tide on a particular Saturday and $a$, $b$, and $c$ are constants - Leaving Cert Mathematics - Question 9 - 2017

Question icon

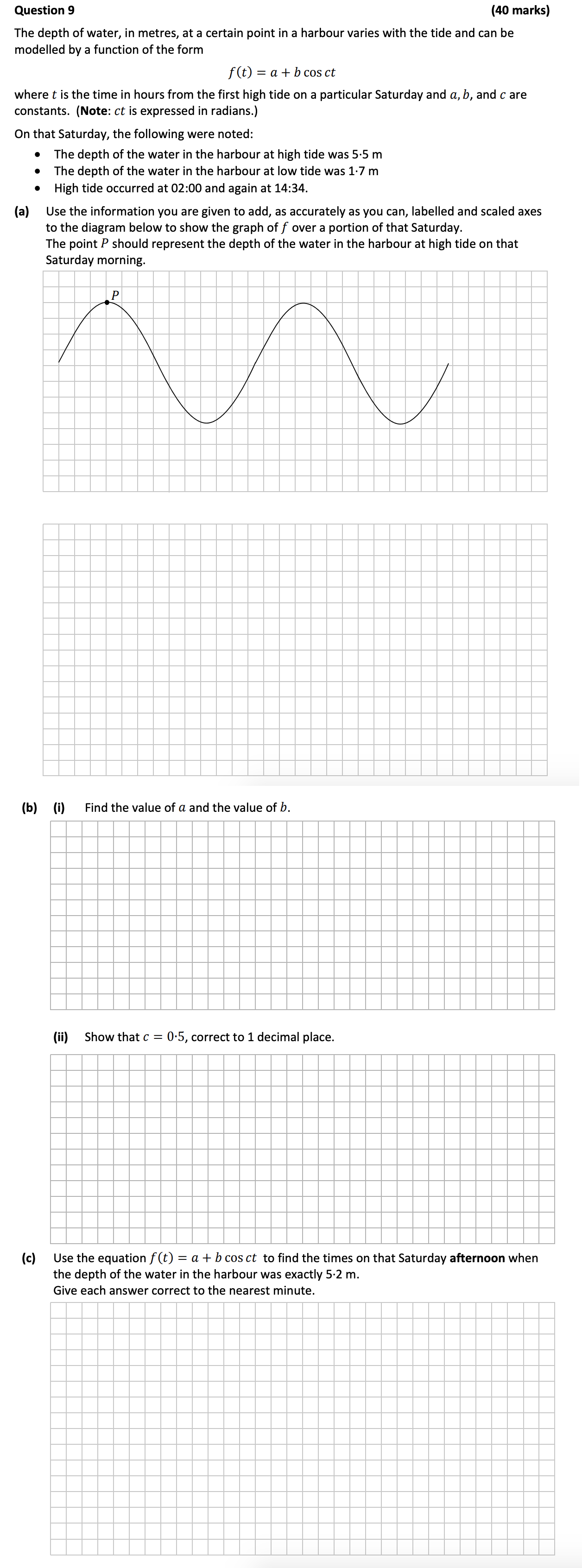

Question 9

The-depth-of-water,-in-metres,-at-a-certain-point-in-a-harbour-varies-with-the-tide-and-can-be-modelled-by-a-function-of-the-form--$$f(t)-=-a-+-b-\cos-ct$$--where-$t$-is-the-time-in-hours-from-the-first-high-tide-on-a-particular-Saturday-and-$a$,-$b$,-and-$c$-are-constants-Leaving Cert Mathematics-Question 9-2017.png

The depth of water, in metres, at a certain point in a harbour varies with the tide and can be modelled by a function of the form $$f(t) = a + b \cos ct$$ where $t... show full transcript

Worked Solution & Example Answer:The depth of water, in metres, at a certain point in a harbour varies with the tide and can be modelled by a function of the form $$f(t) = a + b \cos ct$$ where $t$ is the time in hours from the first high tide on a particular Saturday and $a$, $b$, and $c$ are constants - Leaving Cert Mathematics - Question 9 - 2017

Step 1

(a) Use the information you are given to add, as accurately as you can, labelled and scaled axes to the diagram below to show the graph of f over a portion of that Saturday.

96%

114 rated

Answer

To graph the function f(t)=a+bcosctf(t) = a + b \cos ct, we need to determine the constants aa, bb, and cc based on the provided information.

  1. The height at high tide (maximum) is 5.5 m, and at low tide (minimum) is 1.7 m.
  2. Calculate the average depth: a=5.5+1.72=3.6 ma = \frac{5.5 + 1.7}{2} = 3.6 \text{ m}
  3. The amplitude is half the difference between high and low tides: b=5.51.72=1.9 mb = \frac{5.5 - 1.7}{2} = 1.9 \text{ m}

Using these values, we can plot the graph over a tidal cycle (12 hours) emphasizing the maximum and minimum heights at the correct times.

Step 2

(b) (i) Find the value of a and the value of b.

99%

104 rated

Answer

From the high tide of 5.5 m and low tide of 1.7 m:

  1. Average depth (value of aa): a=5.5+1.72=3.6a = \frac{5.5 + 1.7}{2} = 3.6
  2. Amplitude (value of bb): b=5.51.72=1.9b = \frac{5.5 - 1.7}{2} = 1.9

Step 3

(b) (ii) Show that c = 0.5, correct to 1 decimal place.

96%

101 rated

Answer

The period of the tide is from one high tide to the next which is 12 hours.

The formula for the period is given by: Period=2πc\text{Period} = \frac{2\pi}{c}

Setting the period to 12 hours: 12=2πc12 = \frac{2\pi}{c}

Rearranging this gives: c=2π12=π60.5c = \frac{2\pi}{12} = \frac{\pi}{6} \approx 0.5 (correct to 1 decimal place).

Step 4

(c) Use the equation f(t) = a + b cos ct to find the times on that Saturday afternoon when the depth of the water in the harbour was exactly 5.2 m.

98%

120 rated

Answer

We set the equation equal to 5.2 m:

5.2=3.6+1.9cos(0.5t)5.2 = 3.6 + 1.9 \cos(0.5t)

To find tt:

  1. Rearranging gives: 1.9cos(0.5t)=5.23.61.9 \cos(0.5t) = 5.2 - 3.6 1.9cos(0.5t)=1.61.9 \cos(0.5t) = 1.6 cos(0.5t)=1.61.90.8421\cos(0.5t) = \frac{1.6}{1.9} \approx 0.8421

  2. Taking arccosine: 0.5t=cos1(0.8421)0.5790.5t = \cos^{-1}(0.8421) \approx 0.579 t1.158 hours=1exthour9extminutest \approx 1.158 \text{ hours} = 1 ext{ hour } 9 ext{ minutes}

For other possible solutions on the cosine function, repeat for tt:

  • Solutions would yield:
    • 14:341:0914:34 - 1:{09}
    • 13:2613:26 and 15:4215:42
