Question 6

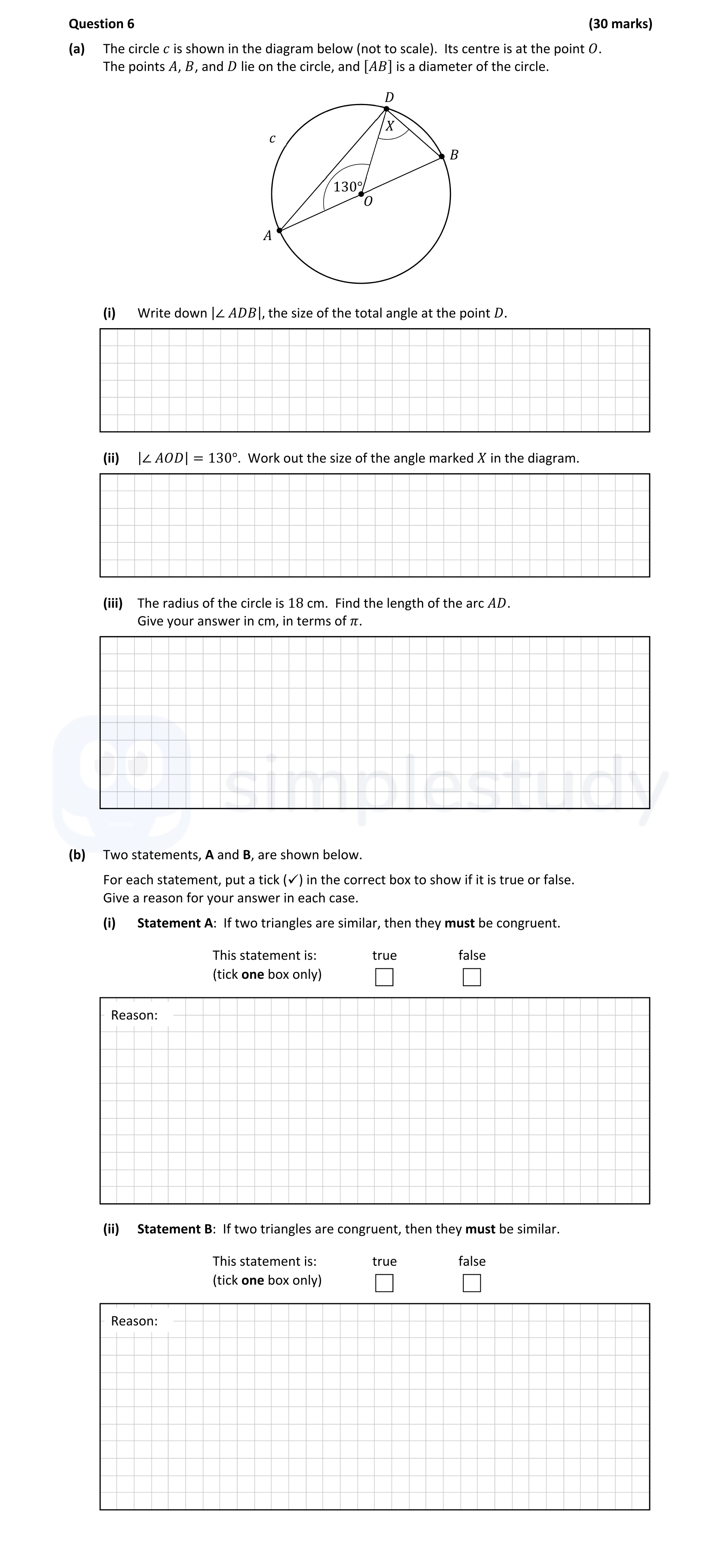

The circle c is shown in the diagram below (not to scale). Its centre is at the point O. The points A, B, and D lie on the circle, and [AB] is a diameter of the circ... show full transcript
Worked Solution & Example Answer:The circle c is shown in the diagram below (not to scale) - Leaving Cert Mathematics - Question 6 - 2022
Step 1
|∠ADB|, the size of the total angle at the point D.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The angle |∠ADB| formed by the arc is subtended by the diameter, hence it measures 90°.
Step 2
|∠AOD| = 130°. Work out the size of the angle marked X in the diagram.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Since |∠AOD| = 130°, the inscribed angle |∠AXB|, directly related to angle |∠AOD| where the arc subtended is angle AXB, is given by the formula:
X=21∣∠AOD∣=21(130°)=65°.
Step 3
The radius of the circle is 18 cm. Find the length of the arc AD.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The arc length can be calculated using the formula:
Arc Length=360θ×2πr,
where θ is the angle at the center for arc AD, which is 130° and r is the radius.
Substituting the values:
Arc Length=360130×2π×18=3613×36π=13π cm.
Step 4
Statement A: If two triangles are similar, then they must be congruent.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This statement is: false.
Reason: Similar triangles have the same shape but may differ in size; therefore, they are not necessarily congruent.
Step 5
Statement B: If two triangles are congruent, then they must be similar.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This statement is: true.
Reason: Congruent triangles are indeed similar, as they have both the same shape and size, including the corresponding angles.
