Prove that if three parallel lines cut off equal segments on some transversal line, then they will cut off equal segments on any other transversal line - Leaving Cert Mathematics - Question 9B(a) - 2010

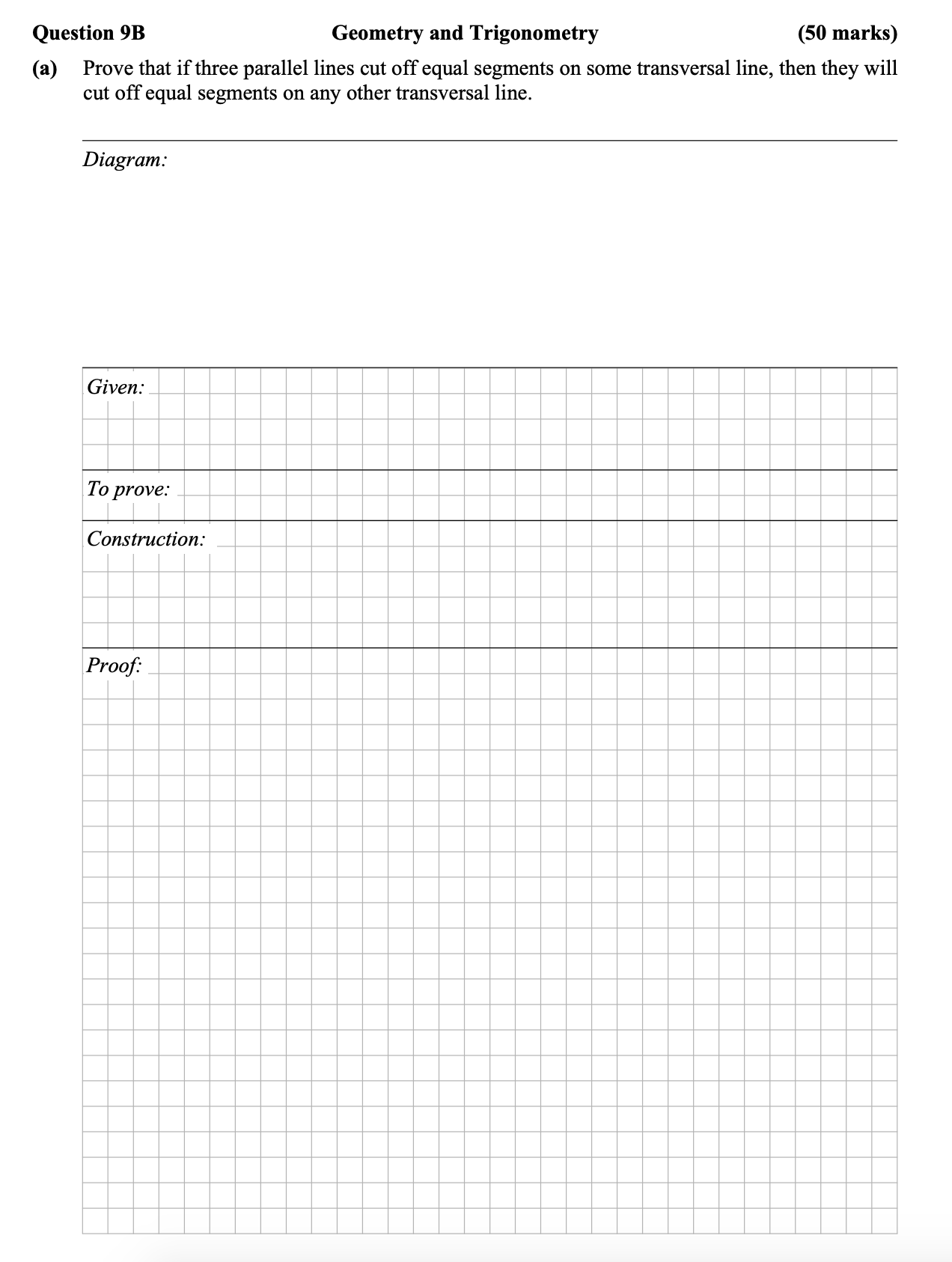

Question 9B(a)
Prove that if three parallel lines cut off equal segments on some transversal line, then they will cut off equal segments on any other transversal line.
Diagram:
G... show full transcript
Worked Solution & Example Answer:Prove that if three parallel lines cut off equal segments on some transversal line, then they will cut off equal segments on any other transversal line - Leaving Cert Mathematics - Question 9B(a) - 2010
Step 1
Given:
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
AD || BE || CF, as in the diagram, with |AB| = |BC|.
Step 2
To prove:
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
|DE| = |EF|
Step 3
Construction:
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Draw AE || DE, cutting EB at E' and CF at F'. Draw FB || AB, cutting EB at B', as in the diagram.
Step 4
Proof:
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Use the fact that B'F' = |BC| = |AB|.
By assumption, |AB| = |BC|.
Since AE || DE and FB || AB, we have alternate angles: |∠ABE| = |∠E'FB'|.
By vertically opposite angles, |∠A'E'B| = |∠F'E'B|.
Therefore, triangles AMEB' and FB'E' are congruent by ASA (Angle-Side-Angle).
Thus, |AE'| = |F'E'|.
Also, by the property of parallelograms, |AE'| = |DE| and |F'E'| = |FE|.
Thus, we conclude that |DE| = |EF|.
