The first three patterns in a sequence of patterns are shown below - Leaving Cert Mathematics - Question 7 - 2015

Question icon

Question 7

The-first-three-patterns-in-a-sequence-of-patterns-are-shown-below-Leaving Cert Mathematics-Question 7-2015.png

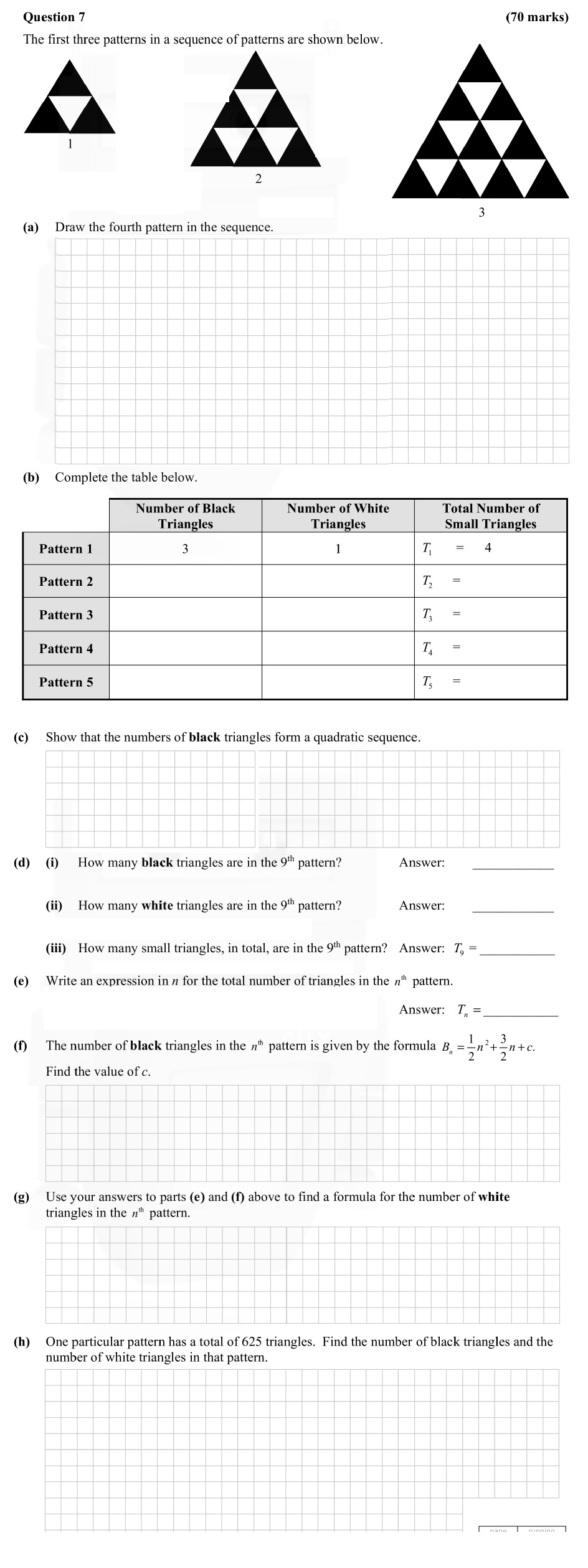

The first three patterns in a sequence of patterns are shown below. (a) Draw the fourth pattern in the sequence. (b) Complete the table below. | Number of Black T... show full transcript

Worked Solution & Example Answer:The first three patterns in a sequence of patterns are shown below - Leaving Cert Mathematics - Question 7 - 2015

Step 1

Draw the fourth pattern in the sequence.

96%

114 rated

Answer

The fourth pattern consists of four rows of triangles, with the topmost row having 1 black triangle, the second row having 2 black triangles, and so on, ending with 4 rows. The new pattern should visually appear as:

   ▲
  ▲ ▲
 ▲ ▲ ▲
▲ ▲ ▲ ▲

The arrangement follows the established pattern with black triangles at the peak.

Step 2

Complete the table below.

99%

104 rated

Answer

Number of Black TrianglesNumber of White TrianglesTotal Number of Small Triangles
Pattern 131
Pattern 263
Pattern 3106
Pattern 41510
Pattern 52115

Step 3

Show that the numbers of black triangles form a quadratic sequence.

96%

101 rated

Answer

To show that the numbers of black triangles are quadratic, we first list the known counts: 3, 6, 10, 15, 21.

We find the first difference:

  • 6 - 3 = 3
  • 10 - 6 = 4
  • 15 - 10 = 5
  • 21 - 15 = 6

Now the second differences:

  • 4 - 3 = 1
  • 5 - 4 = 1
  • 6 - 5 = 1

Since the second difference is constant, the sequence is quadratic.

Step 4

How many black triangles are in the 9th pattern?

98%

120 rated

Answer

The black triangles follow the formula

Bn=12n2+3nB_n = \frac{1}{2}n^2 + 3n

For n = 9:

B9=12(92)+3(9)=12(81)+27=40.5+27=55B_9 = \frac{1}{2}(9^2) + 3(9) = \frac{1}{2}(81) + 27 = 40.5 + 27 = 55

Thus, there are 55 black triangles in the 9th pattern.

Step 5

How many white triangles are in the 9th pattern?

97%

117 rated

Answer

Using the earlier calculation, the total number of triangles in the 9th pattern is:

Tn=(n+1)2T_n = (n + 1)^2

For n = 9:

T9=(9+1)2=102=100T_9 = (9 + 1)^2 = 10^2 = 100

The number of white triangles:

Wn=TnBn=10055=45W_n = T_n - B_n = 100 - 55 = 45

So, there are 45 white triangles in the 9th pattern.

Step 6

How many small triangles, in total, are in the 9th pattern?

97%

121 rated

Answer

Using the formula for the total number of triangles:

Tn=(n+1)2T_n = (n+1)^2 for n = 9, gives us T9=100T_9 = 100.

Thus, in the 9th pattern, there are 100 small triangles in total.

Step 7

Write an expression in n for the total number of triangles in the nth pattern.

96%

114 rated

Answer

The expression for the total number of triangles in the nth pattern is given by:

Tn=(n+1)2T_n = (n + 1)^2

Step 8

Find the value of c.

99%

104 rated

Answer

The formula for black triangles is:

Bn=12n2+3n+cB_n = \frac{1}{2}n^2 + 3n + c

If we plug in n = 1:

B1=112(12)+3(1)+c=1\n12+3+c=1 c=13.5=2.5B_1 = 1 \Rightarrow \frac{1}{2}(1^2) + 3(1) + c = 1\n\Rightarrow\frac{1}{2} + 3 + c = 1 \Rightarrow\ c = 1 - 3.5 = -2.5

Step 9

Use your answers to parts (e) and (f) above to find a formula for the number of white triangles in the nth pattern.

96%

101 rated

Answer

Given:

Wn+Bn=TnW_n + B_n = T_n

Thus,

Wn=TnBnWn=(n+1)2(12n2+3n2.5)W_n = T_n - B_n \Rightarrow W_n = (n + 1)^2 - \left(\frac{1}{2}n^2 + 3n - 2.5\right)

This simplifies to:

Wn=12n2+n+2.5W_n = \frac{1}{2}n^2 + n + 2.5

Step 10

Find the number of black triangles and the number of white triangles in that pattern.

98%

120 rated

Answer

For the pattern having a total of 625 triangles:

Tn=625=(n+1)2n+1=25n=24T_n = 625 = (n + 1)^2 \Rightarrow n + 1 = 25 \Rightarrow n = 24

Now, for black triangles:

B24=12(24)2+3(24)+c=288+722.5=357.5B_{24} = \frac{1}{2}(24)^2 + 3(24) + c = 288 + 72 - 2.5 = 357.5

Number of white triangles:

W24=625357.5=300W_{24} = 625 - 357.5 = 300

Thus, there are 325 black triangles and 300 white triangles.
