The circle c has centre P(−2, −1) and passes through the point Q(3, 1) - Leaving Cert Mathematics - Question 4 - 2014

Question icon

Question 4

The-circle-c-has-centre-P(−2,-−1)-and-passes-through-the-point-Q(3,-1)-Leaving Cert Mathematics-Question 4-2014.png

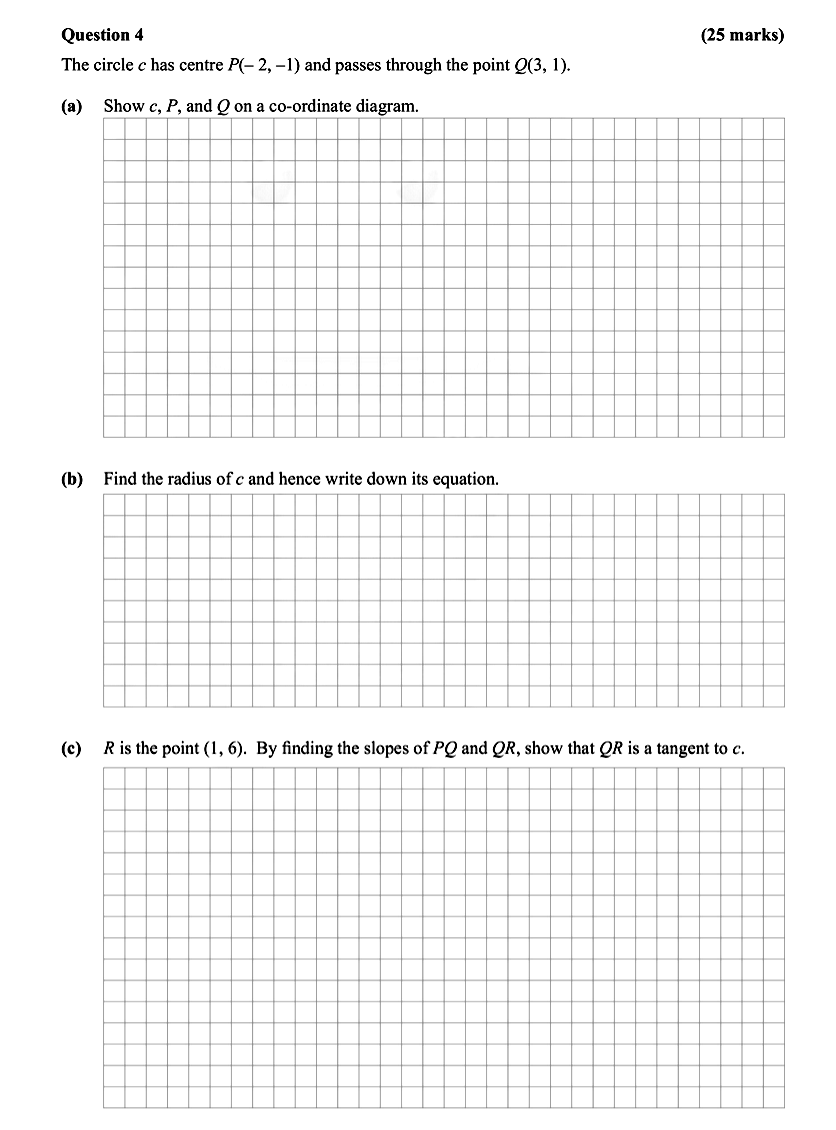

The circle c has centre P(−2, −1) and passes through the point Q(3, 1). (a) Show c, P, and Q on a co-ordinate diagram. (b) Find the radius of c and hence write dow... show full transcript

Worked Solution & Example Answer:The circle c has centre P(−2, −1) and passes through the point Q(3, 1) - Leaving Cert Mathematics - Question 4 - 2014

Step 1

Show c, P, and Q on a co-ordinate diagram.

96%

114 rated

Answer

To show the circle c on a coordinate diagram, we need to plot the center P(-2, -1) and the point Q(3, 1). The circle will be drawn using the formula of a circle with center P:

The general form is:

(xh)2+(yk)2=r2(x - h)^2 + (y - k)^2 = r^2

where (h, k) is the center of the circle and r is the radius.

Step 2

Find the radius of c and hence write down its equation.

99%

104 rated

Answer

To find the radius, we calculate the distance from center P(-2, -1) to point Q(3, 1) using the distance formula:

r=extdistance(P,Q)=sqrt(x2x1)2+(y2y1)2r = ext{distance}(P, Q) = \\sqrt{(x_2 - x_1)^2 + (y_2 - y_1)^2}

Substituting the points:

r=sqrt(3(2))2+(1(1))2=sqrt(3+2)2+(1+1)2=sqrt(5)2+(2)2=sqrt25+4=sqrt29r = \\sqrt{(3 - (-2))^2 + (1 - (-1))^2} = \\sqrt{(3 + 2)^2 + (1 + 1)^2} = \\sqrt{(5)^2 + (2)^2} = \\sqrt{25 + 4} = \\sqrt{29}

Thus, the radius of the circle c is 29\sqrt{29}, and the equation of the circle is:

(x+2)2+(y+1)2=29(x + 2)^2 + (y + 1)^2 = 29

Step 3

R is the point (1, 6). By finding the slopes of PQ and QR, show that QR is a tangent to c.

96%

101 rated

Answer

To show that QR is a tangent to the circle, we first find the slopes of lines PQ and QR.

  1. Calculating the slope of PQ: mPQ=y2y1x2x1=1(1)3(2)=25m_{PQ} = \frac{y_2 - y_1}{x_2 - x_1} = \frac{1 - (-1)}{3 - (-2)} = \frac{2}{5}

  2. Now calculate the slope of QR: mQR=6113=52=52m_{QR} = \frac{6 - 1}{1 - 3} = \frac{5}{-2} = -\frac{5}{2}

  3. Since QR is tangent to the circle at point Q, the slopes should satisfy: mPQ×mQR=1m_{PQ} \times m_{QR} = -1 Substitute the slopes: (25)×(52)=1\left(\frac{2}{5}\right) \times \left(-\frac{5}{2}\right) = -1 Thus, the slopes are negative reciprocals, confirming QR is tangent to the circle c.
