Cones is a sculpture in the National Gallery of Australia - Leaving Cert Mathematics - Question 7 - 2017

Question icon

Question 7

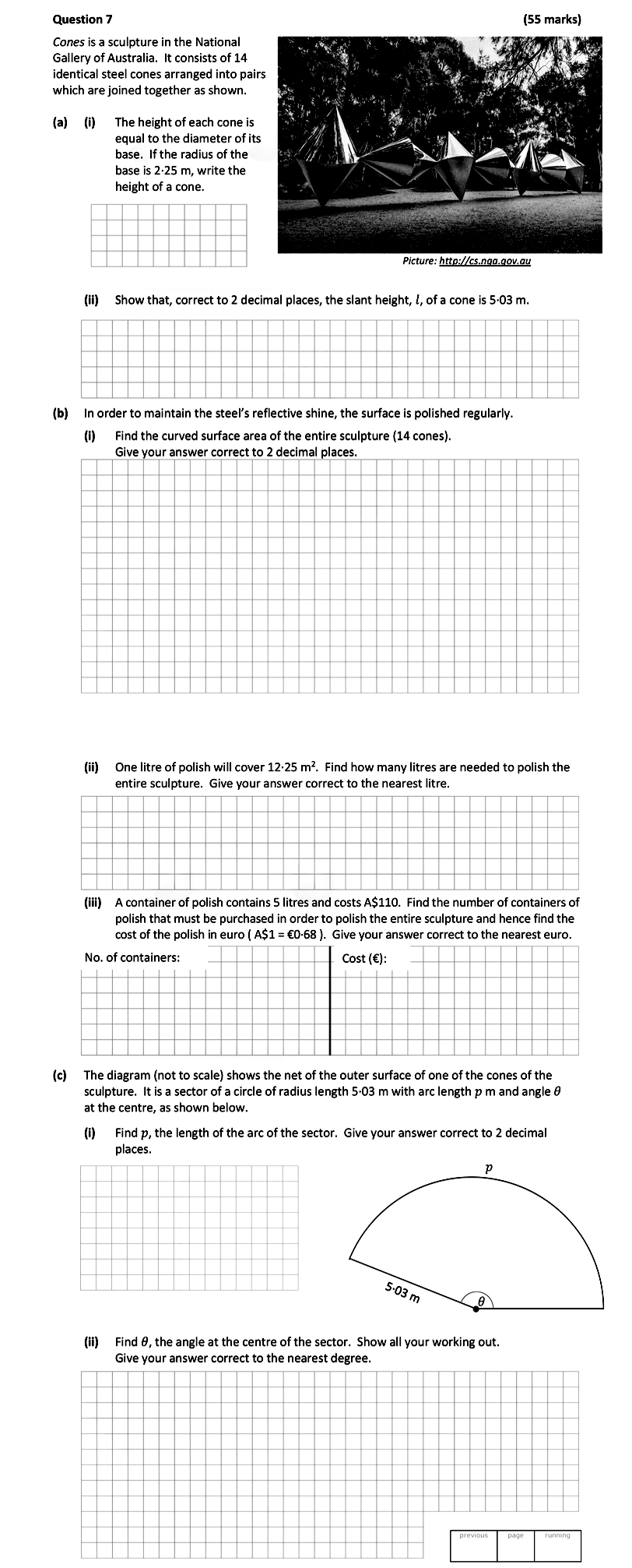

Cones-is-a-sculpture-in-the-National-Gallery-of-Australia-Leaving Cert Mathematics-Question 7-2017.png

Cones is a sculpture in the National Gallery of Australia. It consists of 14 identical steel cones arranged into pairs which are joined together as shown. (i) The h... show full transcript

Worked Solution & Example Answer:Cones is a sculpture in the National Gallery of Australia - Leaving Cert Mathematics - Question 7 - 2017

Step 1

The height of each cone is equal to the diameter of its base. If the radius of the base is 2.25 m, write the height of a cone.

96%

114 rated

Answer

The height, h, of each cone can be calculated using the relationship of radius and diameter. Since the diameter is twice the radius, we have:

h=2rh = 2r

Substituting the radius value:

h=2(2.25)=4.5extmh = 2(2.25) = 4.5 ext{ m}

Step 2

Show that, correct to 2 decimal places, the slant height, l, of a cone is 5.03 m.

99%

104 rated

Answer

To find the slant height, we can use the Pythagorean theorem where:

l2=h2+r2l^2 = h^2 + r^2

Substituting the known values:

l2=(4.5)2+(2.25)2l^2 = (4.5)^2 + (2.25)^2

Calculating:

l2=20.25+5.0625=25.3125l^2 = 20.25 + 5.0625 = 25.3125

Thus,

l=extsqrt(25.3125)5.03extml = ext{sqrt}(25.3125) \approx 5.03 ext{ m}

Step 3

Find the curved surface area of the entire sculpture (14 cones). Give your answer correct to 2 decimal places.

96%

101 rated

Answer

The curved surface area (CSA) of one cone is given by:

CSA=extπrlCSA = ext{π} r l

Substituting for one cone:

CSA=extπ(2.25)(5.03)CSA = ext{π} (2.25)(5.03)

Calculating:

CSA35.358CSA \approx 35.358

Therefore, for 14 cones:

extTotalCSA=14×35.358495.003 m2 ext{Total CSA} = 14 \times 35.358 \approx 495.003 \text{ m}^2

Step 4

One litre of polish will cover 12.25 m². Find how many litres are needed to polish the entire sculpture. Give your answer correct to the nearest litre.

98%

120 rated

Answer

To find the number of litres needed:

No. of litres=Total AreaCoverage per litre\nNo. of litres=495.00312.2540.41\n\text{No. of litres} = \frac{\text{Total Area}}{\text{Coverage per litre}}\n\text{No. of litres} = \frac{495.003}{12.25} \approx 40.41\n

Rounding to the nearest litre, we need 41 litres.

Step 5

A container of polish contains 5 litres and costs A$110. Find the number of containers of polish that must be purchased in order to polish the entire sculpture and hence find the cost of the polish in euro (A$1 = €0.68). Give your answer correct to the nearest euro.

97%

117 rated

Answer

First, calculate the number of containers needed:

No. of containers=415=8.29extcontainers\n\text{No. of containers} = \frac{41}{5} = 8.2 \approx 9 ext{ containers}\n

Next, calculate the total cost:

Cost=9×110=990 AUD\n\text{Cost} = 9 \times 110 = 990 \text{ AUD}\n

Now convert to euro:

Cost in euro=990×0.68=673.2\n\text{Cost in euro} = 990 \times 0.68 = 673.2\n

Thus, rounding to the nearest euro, the cost is €673.

Step 6

Find p, the length of the arc of the sector. Give your answer correct to 2 decimal places.

97%

121 rated

Answer

The arc length p is given by the formula:

p=2πr(θ360)\np = 2\pi r\left(\frac{\theta}{360}\right)\n

Substituting r and solving for p:

p=2π(2.25)(180360)14.14extmp = 2\pi(2.25) \left(\frac{180}{360}\right) \approx 14.14 ext{ m}

Step 7

Find θ, the angle at the centre of the sector. Show all your working out. Give your answer correct to the nearest degree.

96%

114 rated

Answer

Using the arc length formula:

p=θ3602πr\nθ=p3602πr\np = \frac{\theta}{360} \cdot 2\pi r \n\Rightarrow \theta = \frac{p \cdot 360}{2\pi r}\n

Substituting the values:

θ=14.143602π5.03161.48 degrees161°\theta = \frac{14.14 \cdot 360}{2 \cdot \pi \cdot 5.03} \approx 161.48 \text{ degrees} \approx 161\degree
