Question 8

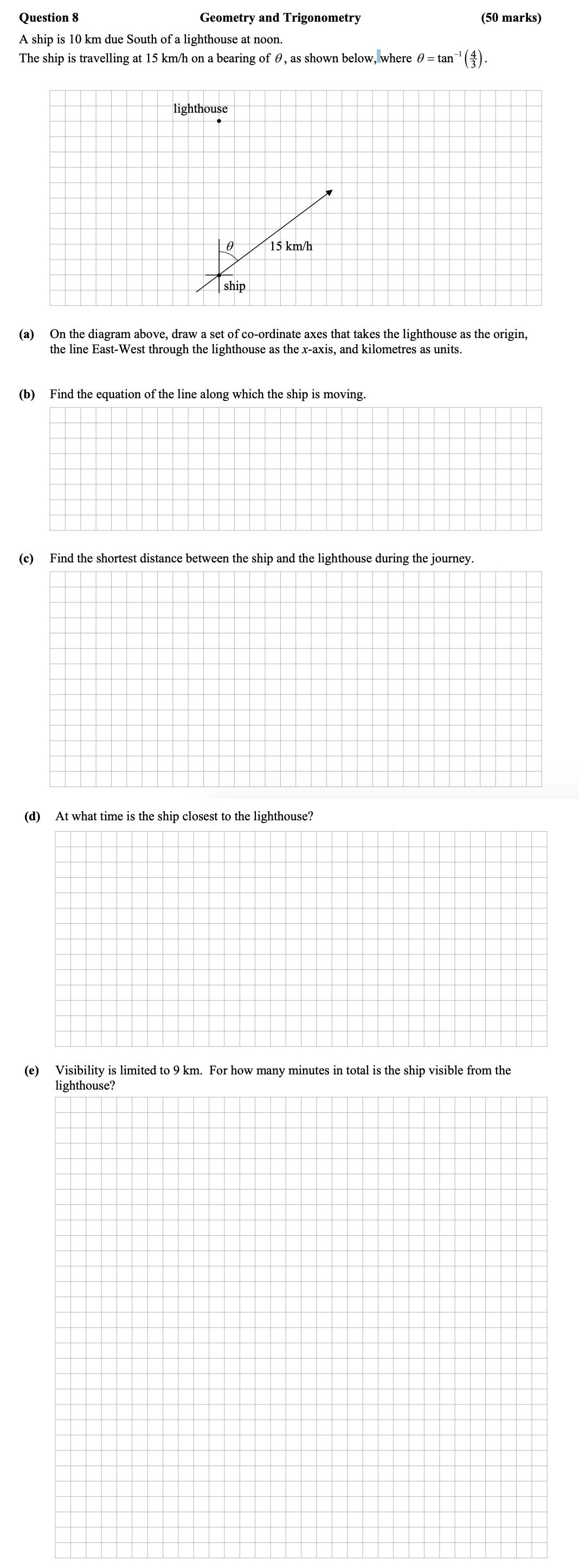

A ship is 10 km due South of a lighthouse at noon.
The ship is travelling at 15 km/h on a bearing of $\theta$, as shown below, where $\theta = \tan^{-1}\left(\frac{... show full transcript
Worked Solution & Example Answer:A ship is 10 km due South of a lighthouse at noon - Leaving Cert Mathematics - Question 8 - 2010
Step 1
On the diagram above, draw a set of co-ordinate axes that takes the lighthouse as the origin, the line East-West through the lighthouse as the x-axis, and kilometres as units.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
On the axes, place the lighthouse at the origin (0, 0).
The ship starts at (0, -10) km (10 km south of the lighthouse).
The x-axis represents East-West direction, and the y-axis represents North-South.
Step 2
Find the equation of the line along which the ship is moving.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Given that tan(θ)=34, we have:
Slope m=43.
Using the point-slope form starting from (0, -10):
[ y + 10 = \frac{3}{4}(x - 0) ]
[ y = \frac{3}{4}x - 10 ]
This equation represents the path of the ship.
Step 3
Find the shortest distance between the ship and the lighthouse during the journey.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To find the shortest distance d, we can use the perpendicular distance formula:
[ d = \frac{|ax + by + c|}{\sqrt{a^2 + b^2}} ]
For the lighthouse at (0, 0) and ship's line y=43x−10:
Let a=3, b=−4, and c=−40:
[ d = \frac{|3(0) - 4(0) - 40|}{\sqrt{3^2 + (-4)^2}} ]
[ d = \frac{40}{5} = 8 \text{ km} ]
Step 4
At what time is the ship closest to the lighthouse?
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The minimum distance occurs when:
[ \tan(\theta) = \frac{8}{x} ]
Setting this equal to x8 and solving:
[ 8 = \frac{8}{3}(x) ]
Solving gives x=6 km, when y is:
Time taken = (distance/speed) = 156 hours which equals 24 minutes.
Thus, the ship is closest to the lighthouse at 12:24 pm.
Step 5
Visibility is limited to 9 km. For how many minutes in total is the ship visible from the lighthouse?
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Using the right triangle visibility, we have:
[ y^2 + 8^2 = 9^2 ]
[ y^2 = 81 - 64 ]
[ y^2 = 17 \Rightarrow y = \sqrt{17} \text{ km} ]
Distance travelled from visibility point to nearest approach:
[ Total time = \frac{2 \sqrt{17}}{15} \text{ hours} ]
This equals [ \approx 32.98 \text{ minutes} \approx 33 minutes. ]
