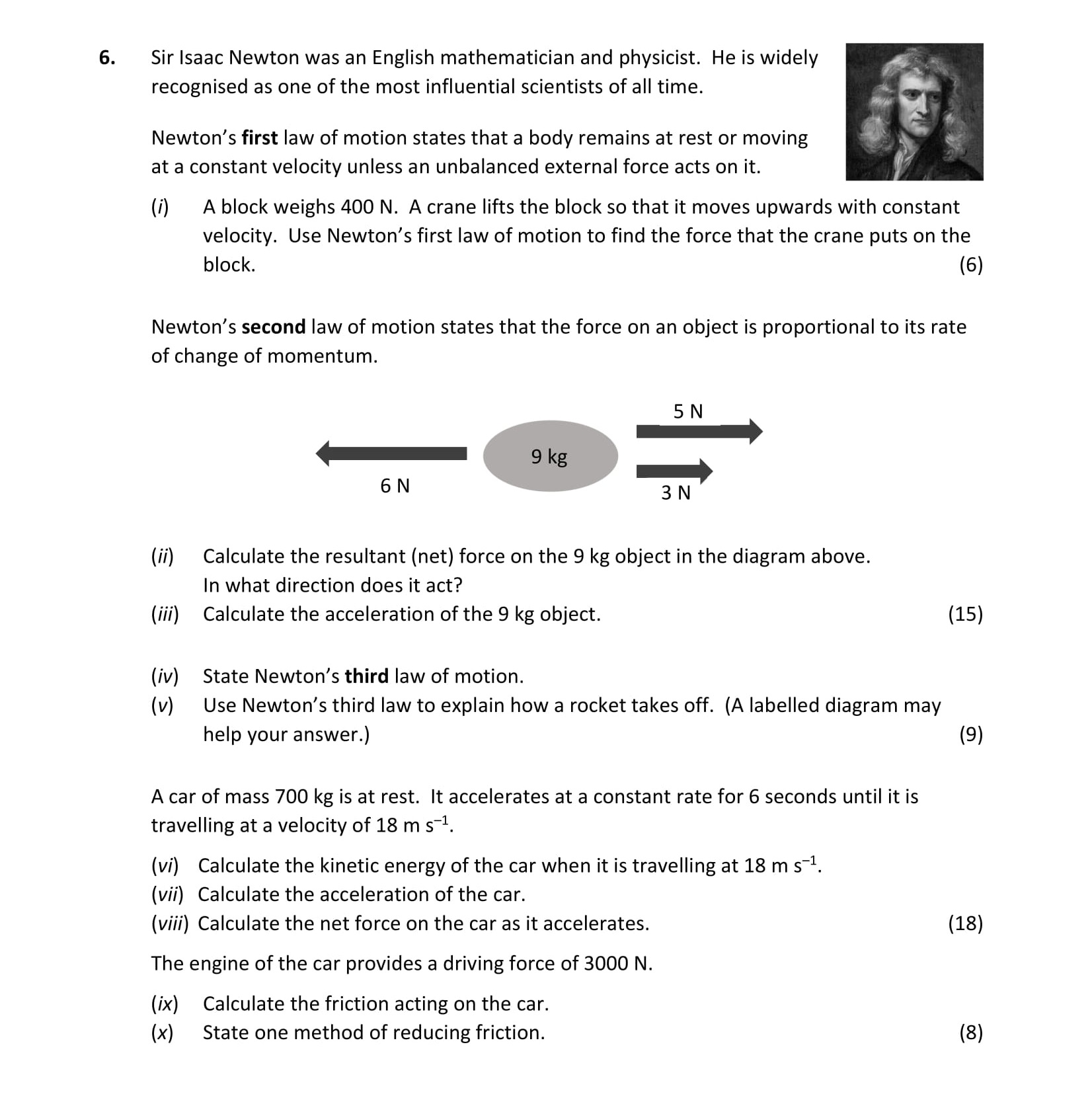

Question 6
Sir Isaac Newton was an English mathematician and physicist. He is widely recognised as one of the most influential scientists of all time.
Newton's first law of mo... show full transcript
Worked Solution & Example Answer:Sir Isaac Newton was an English mathematician and physicist - Leaving Cert Physics - Question 6 - 2020
Step 1
Calculate the resultant (net) force on the 9 kg object in the diagram above. In what direction does it act?
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To calculate the resultant force, consider the forces acting on the object:
The force due to gravity (weight) is given by:
Fg=mimesg=9extkgimes9.8extm/s2=88.2extNext(downwards)
The given horizontal forces are 5 N to the right and the resultant of 6 N left (net force: 6 N). Thus, we can compute:
Fextnet=5extN(right)−6extN(left)=−1extNext(totheleft)
The resultant force is 1 N to the left.
Step 2
Calculate the acceleration of the 9 kg object.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Using Newton's second law of motion, the relationship between force and acceleration is:
F=mimesa
We rearrange to find acceleration:
a=mF=9extkg−1extN=−0.11extm/s2
This indicates the object is decelerating to the left.
Step 3
State Newton's third law of motion.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Newton's third law of motion states that for every action, there is an equal and opposite reaction. This means that when one object exerts a force on another, the second object exerts a force of equal magnitude and opposite direction back on the first object.
Step 4
Use Newton's third law to explain how a rocket takes off. (A labelled diagram may help your answer.)
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A rocket takes off by expelling gases downwards at high speed. According to Newton's third law, the force exerted on the gases (action) results in an equal and opposite force exerted on the rocket (reaction), pushing it upwards. A diagram can illustrate the rocket, fuel, and ejected gases.
Step 5
Calculate the kinetic energy of the car when it is travelling at 18 m s⁻¹.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Kinetic energy (KE) is calculated using the formula:
KE=21mv2
Substituting the given values:
KE=21×700extkg×(18extm/s)2=113400extJ
Step 6
Calculate the acceleration of the car.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Using the formula for acceleration from Newton's second law:
a=mF
The net force is:
F=m×a⟹a=mF where F is (18m/s)=6exts(700extkg)=3extm/s2
Step 7
Calculate the net force on the car as it accelerates.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The net force can be calculated using:
Fnet=mimesa=700extkg×3extm/s2=2100extN
Step 8
Calculate the friction acting on the car.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The frictional force can be found using:
Ffriction=Fengine−Fnet=3000extN−2100extN=900extN
Step 9
State one method of reducing friction.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
One method of reducing friction is using lubricants, such as oil or grease, which form a film between surfaces to minimize direct contact.
