An electric heater has a power rating of 1500 W - Leaving Cert Physics - Question e - 2020
Question e

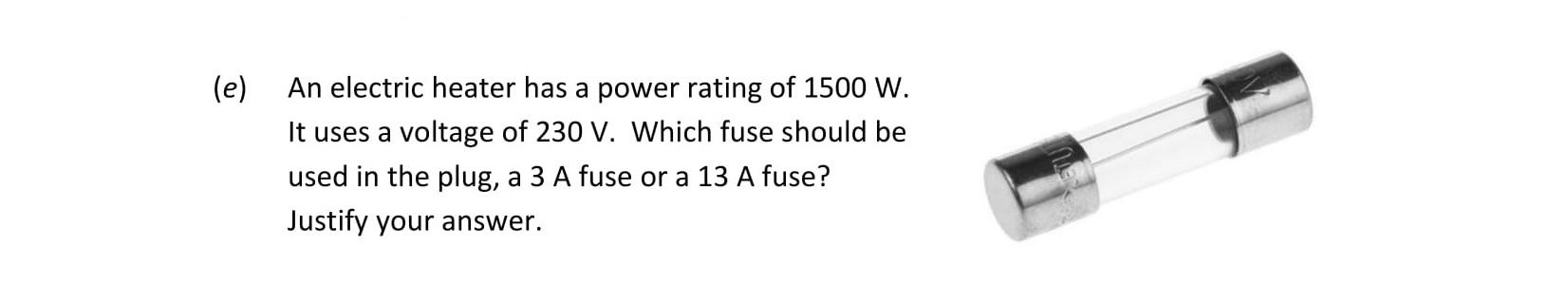

An electric heater has a power rating of 1500 W. It uses a voltage of 230 V. Which fuse should be used in the plug, a 3 A fuse or a 13 A fuse? Justify your answer.
Worked Solution & Example Answer:An electric heater has a power rating of 1500 W - Leaving Cert Physics - Question e - 2020
Step 1
Calculate the current using the formula $I = \frac{P}{V}$
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
First, we need to calculate the current drawn by the heater using the formula:
I=VP
Substituting the values:
I=230V1500W≈6.52 A
This indicates that the heater will draw approximately 6.52 A of current.
Step 2
Determine the suitable fuse rating
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Since the calculated current is approximately 6.52 A, we need to choose a fuse rating that can safely handle this current without blowing under normal operation.
A 3 A fuse would not be suitable, as it would blow under the operating conditions of the heater. However, a 13 A fuse can handle the current comfortably.
Thus, the appropriate choice for the fuse is a 13 A fuse.
