Question 1

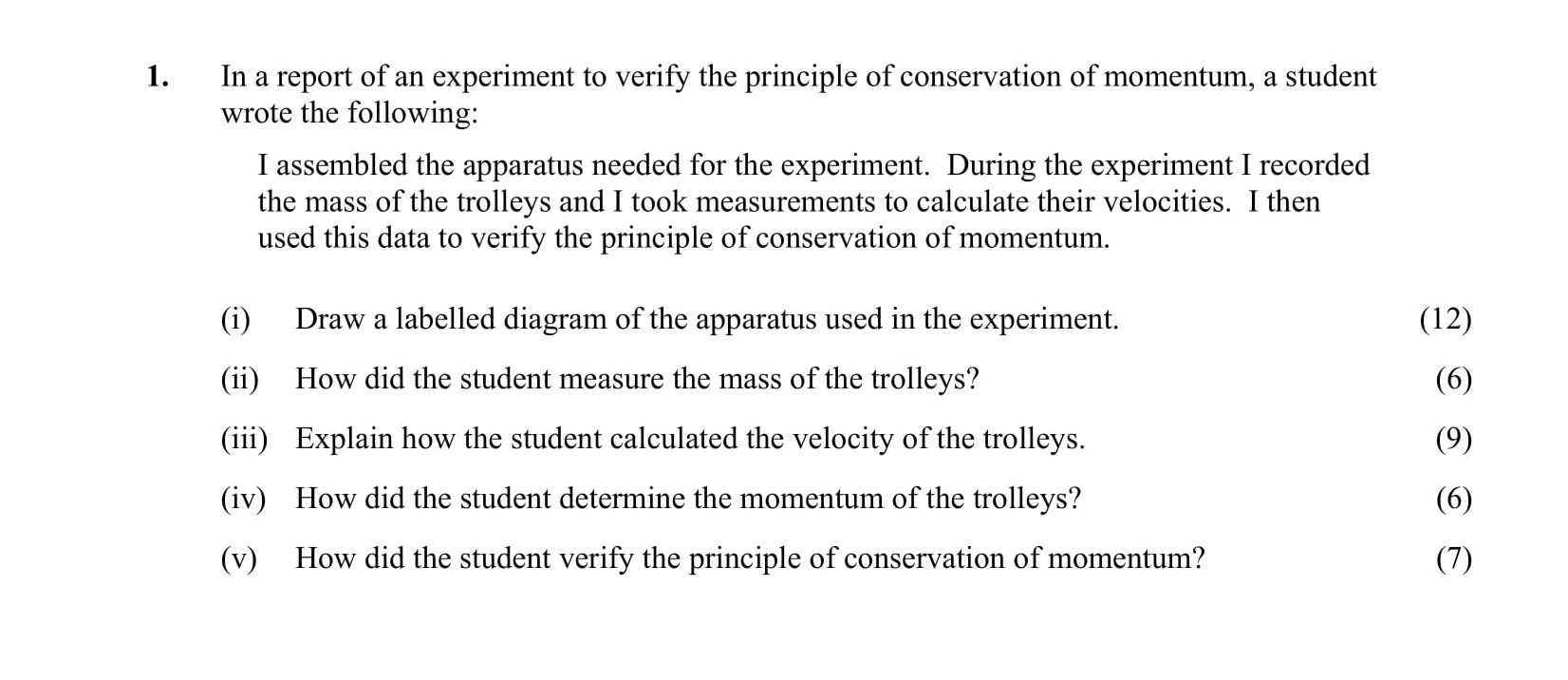

In a report of an experiment to verify the principle of conservation of momentum, a student wrote the following:
I assembled the apparatus needed for the experiment... show full transcript
Worked Solution & Example Answer:In a report of an experiment to verify the principle of conservation of momentum, a student wrote the following:
I assembled the apparatus needed for the experiment - Leaving Cert Physics - Question 1 - 2006
Step 1
Draw a labelled diagram of the apparatus used in the experiment.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To draw the apparatus for the experiment, ensure to represent the following components:
A straight runway representing the air track.
Two trolleys placed on the runway.
Timer devices to record motion: this can be either a photogate or a motion sensor.
A diagrammatic representation of how the trolleys are attached or positioned, if applicable. Labels should clearly indicate each component’s purpose.
Step 2
How did the student measure the mass of the trolleys?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The student used an electronic balance or scales to measure the mass of the trolleys. This method ensures accuracy by providing a direct measurement of the mass.
Step 3
Explain how the student calculated the velocity of the trolleys.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The student calculated the velocity of the trolleys using the formula:
velocity=timedistance
The distance was measured using a ruler or measuring tape, and the time was recorded using a timer. The student would perform the calculation as:
velocity=td
where:
d = distance traveled by the trolley
t = time taken for that distance.
Step 4
How did the student determine the momentum of the trolleys?
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The momentum of the trolleys was determined using the formula:
momentum=mass×velocity
The student multiplied the mass of each trolley (obtained from the measurement) by its velocity (calculated in the previous step).
Step 5
How did the student verify the principle of conservation of momentum?
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The student verified the principle of conservation of momentum by comparing the total momentum of the system before and after the collision or interaction of the trolleys. This involves:
Calculating the total momentum before the interaction using the formula:
totalmomentumbefore=momentumtrolley1+momentumtrolley2
Calculating the total momentum after the interaction using the same formula.
Showing that the total momentum before equals the total momentum after, confirming the conservation principle.
