Question 4

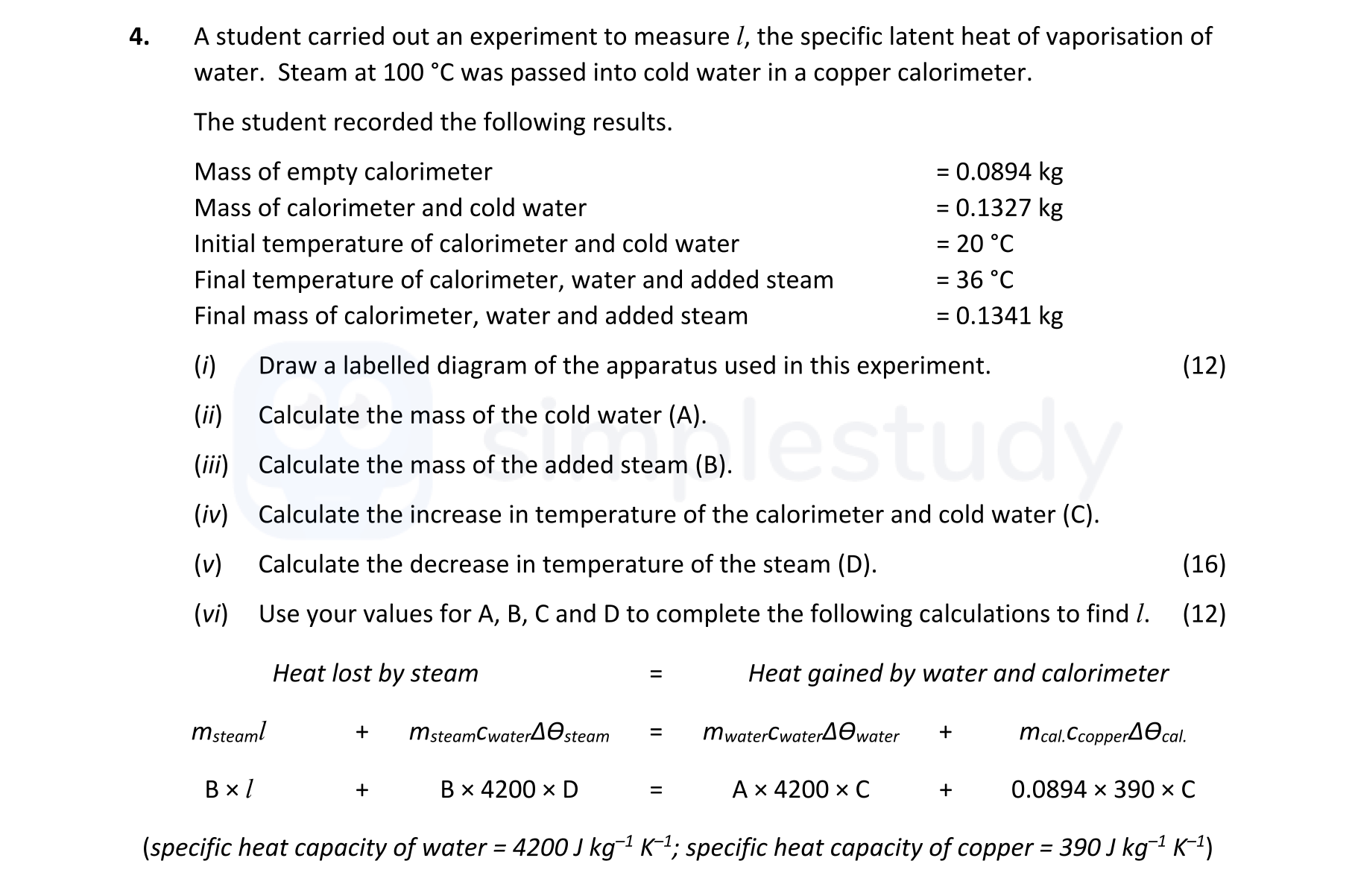

A student carried out an experiment to measure l, the specific latent heat of vaporisation of water. Steam at 100 °C was passed into cold water in a copper calorimet... show full transcript
Worked Solution & Example Answer:A student carried out an experiment to measure l, the specific latent heat of vaporisation of water - Leaving Cert Physics - Question 4 - 2023
Step 1
Draw a labelled diagram of the apparatus used in this experiment.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The labelled diagram should include the following components:
Calorimeter
Steam source
Thermometer
Insulation to maintain temperatures
Cold water container
Make sure to clearly label each component.
Step 2
Calculate the mass of the cold water (A).
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To find the mass of cold water (A):
A=mcal+water−mcal=0.1327extkg−0.0894extkg=0.0433extkg
Step 3
Calculate the mass of the added steam (B).
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
For mass of added steam (B):
B=mfinal−minitial=0.1341extkg−0.1327extkg=0.0014extkg
Step 4
Calculate the increase in temperature of the calorimeter and cold water (C).
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To calculate the increase in temperature (C):
C=Tfinal−Tinitial=36°C−20°C=16°C
Step 5
Calculate the decrease in temperature of the steam (D).
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To find the decrease in temperature (D) of the steam:
D=100°C−Tfinal=100°C−36°C=64°C
Step 6
Use your values for A, B, C and D to complete the following calculations to find l.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
According to the energy balance:
Heat lost by steam = Heat gained by water and calorimeter:
Bimesl+(0.1327−0.0894)imes4200imes16=0.0894imes390imes64
Substituting the values:
0.0014imesl+0.0433imes4200imes16=0.0894imes390imes64
Solving the equation will give:
l=extvalueaftercalculating
