The diagram shows the relative positions of electromagnetic radiations in terms of their wavelength - Leaving Cert Physics - Question b - 2006
Question b

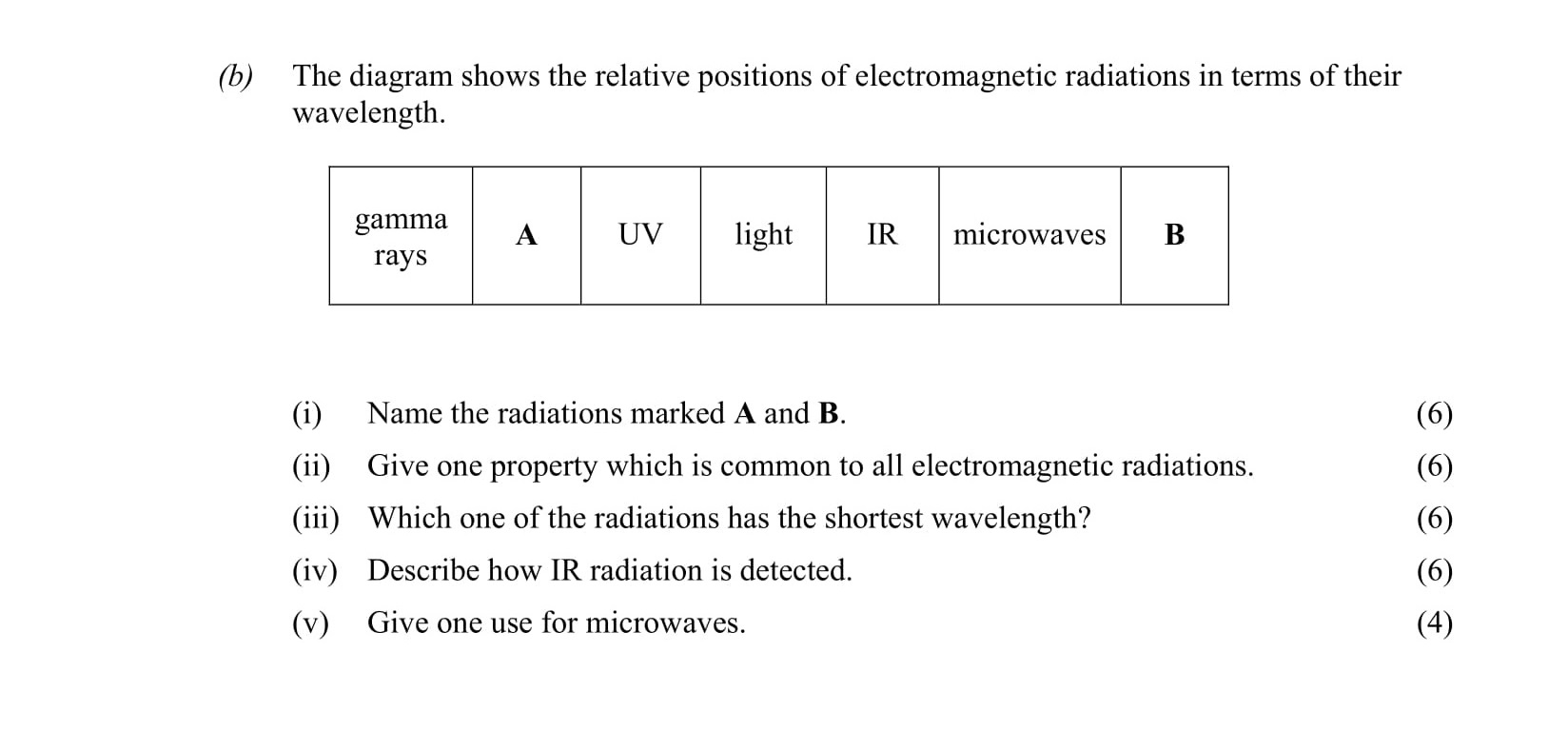

The diagram shows the relative positions of electromagnetic radiations in terms of their wavelength.
gamma rays A UV light IR microwaves B
(i) Name the radi... show full transcript
Worked Solution & Example Answer:The diagram shows the relative positions of electromagnetic radiations in terms of their wavelength - Leaving Cert Physics - Question b - 2006
Step 1
Name the radiations marked A and B.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A = X-rays
B = radio waves / VHF / UHF etc.
Step 2
Give one property which is common to all electromagnetic radiations.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
All electromagnetic radiations travel at the speed of light.
Step 3
Which one of the radiations has the shortest wavelength?
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Gamma rays have the shortest wavelength.
Step 4
Describe how IR radiation is detected.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
IR radiation is detected using a thermometer or heat sensor. It can also be captured on a thermographic or photographic film.
Step 5
Give one use for microwaves.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Microwaves are used in cooking, such as in microwave ovens.
