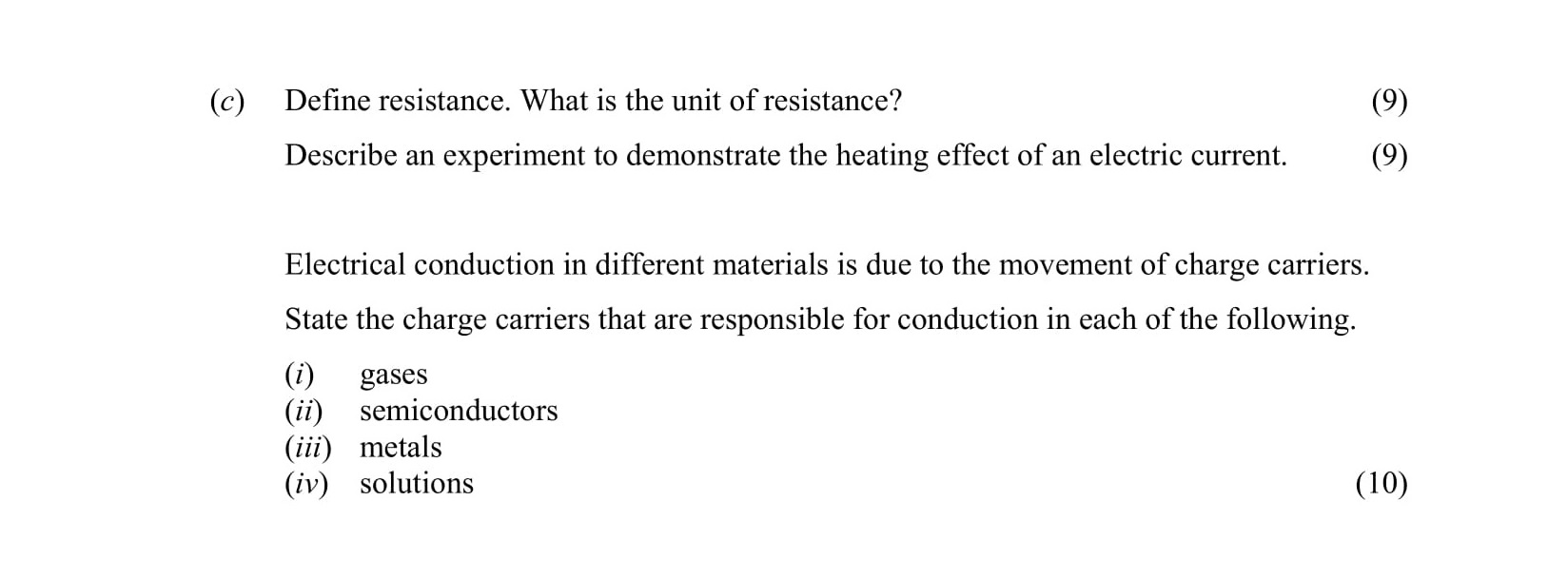

Define resistance. What is the unit of resistance?
Describe an experiment to demonstrate the heating effect of an electric current.
Electrical conduction in differ... show full transcript
Worked Solution & Example Answer:Define resistance - Leaving Cert Physics - Question c - 2015
Step 1
Define resistance. What is the unit of resistance?
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Resistance is defined as the opposition to the flow of electric current in a conductor. It is determined by the material's properties and its dimensions. The unit of resistance is the ohm (Ω), which is defined as the resistance that allows a current of one ampere to flow when a voltage of one volt is applied across it. Mathematically, resistance (R) can be represented by the equation:
R=IV
where V is the voltage across the conductor and I is the current flowing through it.
Step 2
Describe an experiment to demonstrate the heating effect of an electric current.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To demonstrate the heating effect of an electric current, the following experiment can be conducted:
Apparatus:
Battery
Resistance wire (such as a nichrome wire)
Electric heater or hairdryer
Switch
Procedure:
Connect the battery, resistance wire, and electric heater in series with a switch.
Ensure all connections are secure and the circuit is complete.
Close the switch to allow current to flow through the circuit.
Observation/Conclusion:
The resistance wire will become hot due to the electric current flowing through it, demonstrating the heating effect of the electric current.
Step 3
State the charge carriers that are responsible for conduction in each of the following.
(i) gases
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In gases, the charge carriers responsible for conduction are ions.
Step 4
State the charge carriers that are responsible for conduction in each of the following.
(ii) semiconductors
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In semiconductors, the charge carriers are electrons and holes.
Step 5
State the charge carriers that are responsible for conduction in each of the following.
(iii) metals
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In metals, the charge carriers are electrons.
Step 6
State the charge carriers that are responsible for conduction in each of the following.
(iv) solutions
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In solutions, the charge carriers are ions.
