Draw a labelled diagram to represent the second harmonic of a stationary wave in a pipe that is open at both ends. - Leaving Cert Physics - Question 10 - 2021
Question 10

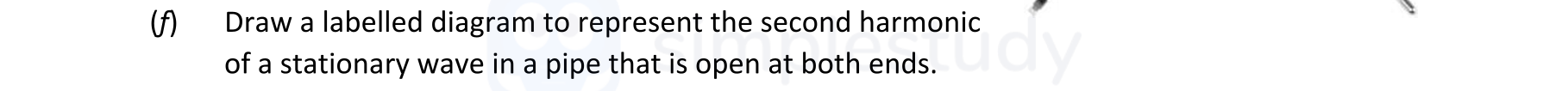

Draw a labelled diagram to represent the second harmonic of a stationary wave in a pipe that is open at both ends.
Worked Solution & Example Answer:Draw a labelled diagram to represent the second harmonic of a stationary wave in a pipe that is open at both ends. - Leaving Cert Physics - Question 10 - 2021
Step 1
Antinode shown at both ends
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In the second harmonic of a stationary wave in a pipe open at both ends, there are antinodes located at each end of the pipe. This indicates that maximum displacement occurs at both ends.
Step 2
One full wave shown (i.e. antinode-node-antinode)
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In the diagram, there should be one complete wave represented, consisting of an antinode at one end, a node in the middle, and another antinode at the opposite end. This forms a complete sine wave shape within the length of the pipe.
