Question 10
A cathode ray tube and an X-ray tube are practical applications of thermionic emission. In these tubes thermionic emission releases electrons, which are then acceler... show full transcript
Worked Solution & Example Answer:A cathode ray tube and an X-ray tube are practical applications of thermionic emission - Leaving Cert Physics - Question 10 - 2012
Step 1

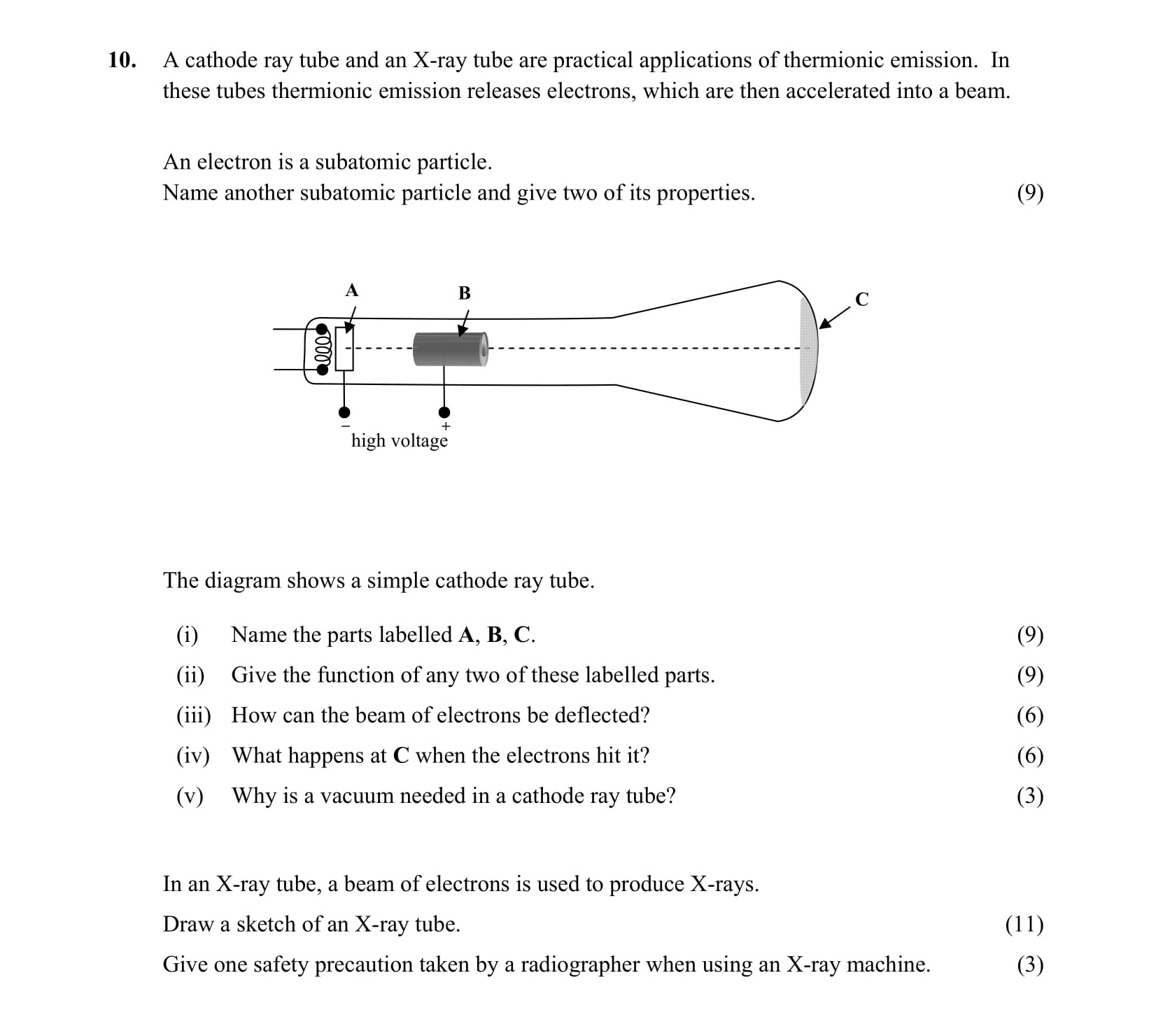

Name the parts labelled A, B, C in the diagram.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A - cathode / hot metal
B - anode
C - screen
Step 2
Give the function of any two of these labelled parts.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Cathode emits electrons when heated due to thermionic emission.
Anode attracts/accelerates electrons towards it.
Step 3
How can the beam of electrons be deflected?
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The beam can be deflected by an electric field, magnetic field, or by using X-Y plates.
Step 4
What happens at C when the electrons hit it?
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
When the electrons hit the screen at C, they produce light, forming a visible spot or image.
Step 5
Why is a vacuum needed in a cathode ray tube?
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A vacuum is necessary to prevent the electrons from colliding with air molecules, which would scatter the beam and degrade the image quality.
Step 6
Draw a sketch of an X-ray tube.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The sketch should represent the key components: an anode, cathode, glass tube, target, high voltage supply, and cooling fins.
Step 7
Give one safety precaution taken by a radiographer when using an X-ray machine.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Radiographers use lead shielding to protect themselves from unnecessary exposure to X-rays.
