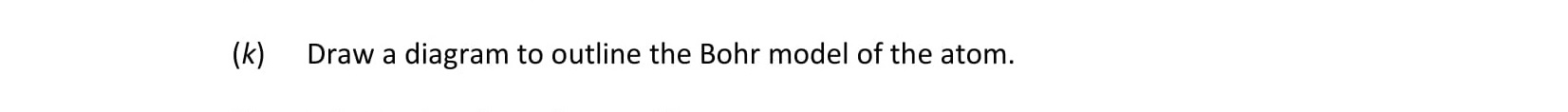

Draw a diagram to outline the Bohr model of the atom.
Worked Solution & Example Answer:Draw a diagram to outline the Bohr model of the atom. - Leaving Cert Physics - Question (k) - 2021
Step 1
Draw the nucleus
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Begin by drawing a small circle at the center of your diagram. This represents the nucleus of the atom, which contains protons and neutrons. Label it clearly as 'Nucleus'.
Step 2
Add the first electron shell
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Draw a concentric circle around the nucleus to represent the first electron shell. This shell should be positioned at a certain distance from the nucleus. Indicate the presence of electrons in this shell by placing a few small dots on this circle.
Step 3
Add a second electron shell
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Next, draw another concentric circle around the first shell. This will be the second electron shell. Again, place some dots to symbolize the electrons in this shell, ensuring that this shell is further away from the nucleus than the first.
Step 4
Label the diagram
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Make sure to label all components of your diagram clearly, including the nucleus and each electron shell. This will help in understanding the structure of the atom as per the Bohr model.
