Name an instrument used to detect radioactivity - Leaving Cert Physics - Question (i) - 2008

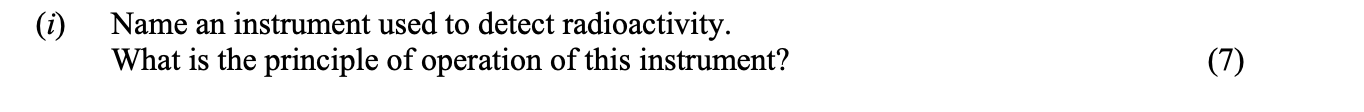

Question (i)
Name an instrument used to detect radioactivity.
What is the principle of operation of this instrument?
Worked Solution & Example Answer:Name an instrument used to detect radioactivity - Leaving Cert Physics - Question (i) - 2008
Step 1
Name an instrument used to detect radioactivity.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
One common instrument used to detect radioactivity is the Geiger-Muller (GM) tube.
Step 2
What is the principle of operation of this instrument?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The principle of operation of the GM tube is based on ionization. When ionizing radiation passes through the gas inside the tube, it ionizes the gas molecules, creating positive ions and free electrons. This creates ion-pairs. The resulting free electrons are attracted to a positively charged electrode, resulting in an electric current. This current is then amplified and can be counted, giving a measure of the radioactivity.
