What is the photoelectric effect?

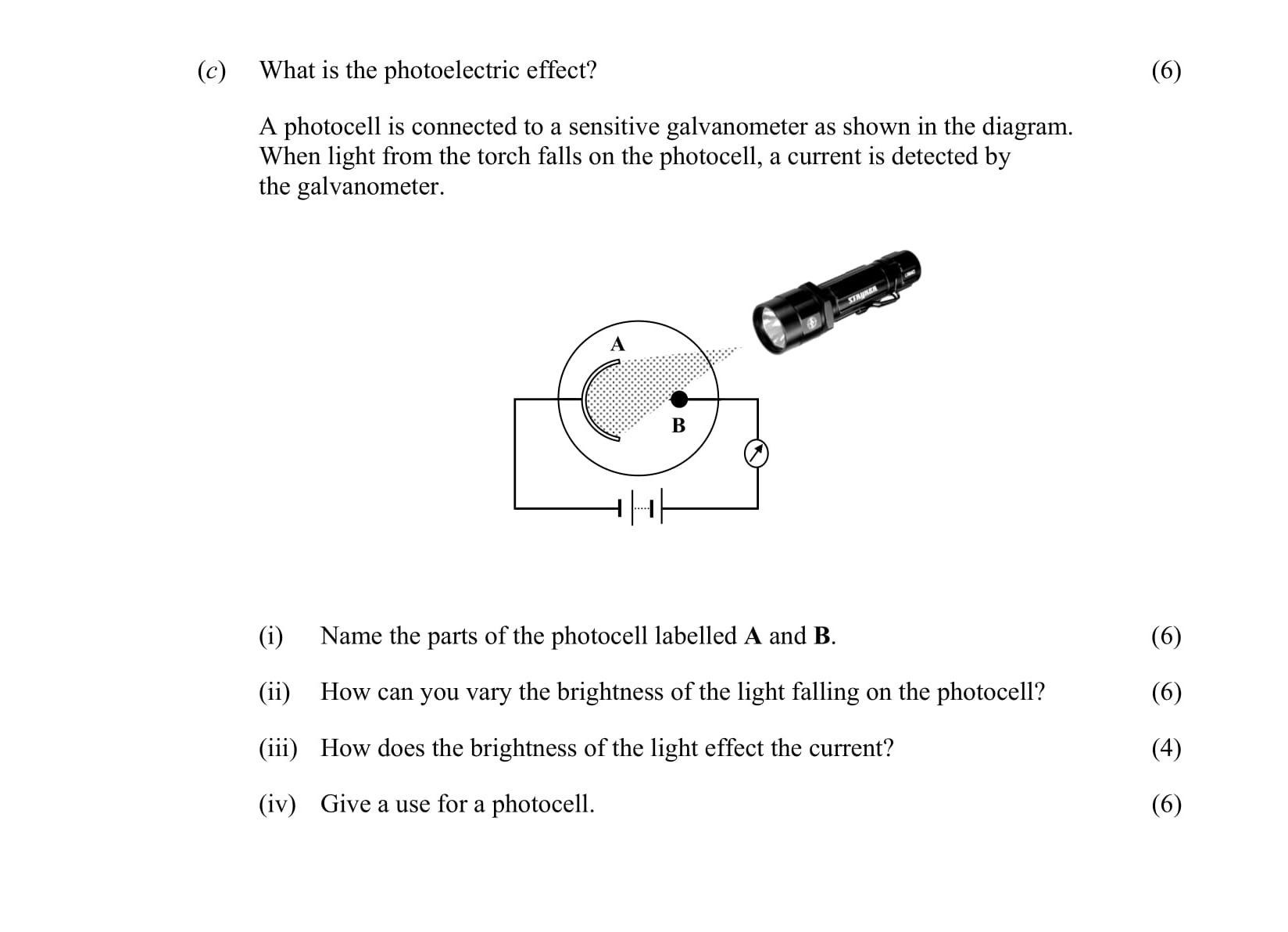

A photocell is connected to a sensitive galvanometer as shown in the diagram - Leaving Cert Physics - Question c - 2008
Question c
What is the photoelectric effect?
A photocell is connected to a sensitive galvanometer as shown in the diagram. When light from the torch falls on the photocell, a ... show full transcript
Worked Solution & Example Answer:What is the photoelectric effect?
A photocell is connected to a sensitive galvanometer as shown in the diagram - Leaving Cert Physics - Question c - 2008
Step 1
Name the parts of the photocell labelled A and B.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A = photo(-)cathode
B = photo(-)anode
Step 2
How can you vary the brightness of the light falling on the photocell?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
You can vary the brightness of the light falling on the photocell by:
Moving the light source closer or further away from the photocell.
Using a different torch with varying light intensity.
Step 3
How does the brightness of the light effect the current?
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The brightness of the light affects the current as follows: the greater the brightness, the greater the current detected. Conversely, if the brightness decreases, the current will also decrease.
Step 4
Give a use for a photocell.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Photocells can be used in various applications such as:
Burglar alarms
Automatic door systems in heating systems
Streetlights
Solar cells
Sound track in film
Motion sensors for lighting
