The ear canal acts as a cylindrical pipe closed at one end - Leaving Cert Physics - Question e - 2016
Question e

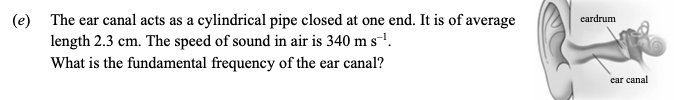

The ear canal acts as a cylindrical pipe closed at one end. It is of average length 2.3 cm. The speed of sound in air is 340 m s⁻¹.
What is the fundamental frequency... show full transcript
Worked Solution & Example Answer:The ear canal acts as a cylindrical pipe closed at one end - Leaving Cert Physics - Question e - 2016
Step 1
Calculate the Wavelength
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To find the wavelength (
\lambda
), we use the formula adapted for a pipe closed at one end:
λ=n4L
where:
L is the length of the ear canal (2.3 cm = 0.023 m)
n is the harmonic number, which is 1 for the fundamental frequency.
Thus,
λ=4×0.023m=0.092m
Step 2
Calculate the Fundamental Frequency
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Now, we can calculate the fundamental frequency (f) using the wave speed equation:
f=λc
Substituting the values:
Speed of sound (c) = 340 m s⁻¹
Wavelength (\n \lambda
) = 0.092 m
Therefore,
f=0.092m340m/s≈3696Hz
