Pythagoras’ Theorem Simplified Revision Notes

Revision notes with simplified explanations to understand Pythagoras’ Theorem quickly and effectively.

user avatar
user avatar
user avatar
user avatar
user avatar

221+ students studying

Pythagoras' Theorem

Pythagoras' Theorem is a really useful tool in maths. It helps us find the length of a side in a right-angled triangle if we know the lengths of the other two sides. But remember, this only works for right-angled triangles (triangles with one angle that is exactly 90degrees90 degrees).

What is Pythagoras' Theorem?

The theorem says:

In a right-angled triangle, the square of the hypotenuse is equal to the sum of the squares of the other two sides.\text{In a right-angled triangle, the square of the hypotenuse is equal to the sum of the squares of the other two sides.}

That might sound complicated, but here's what it means in simpler terms:

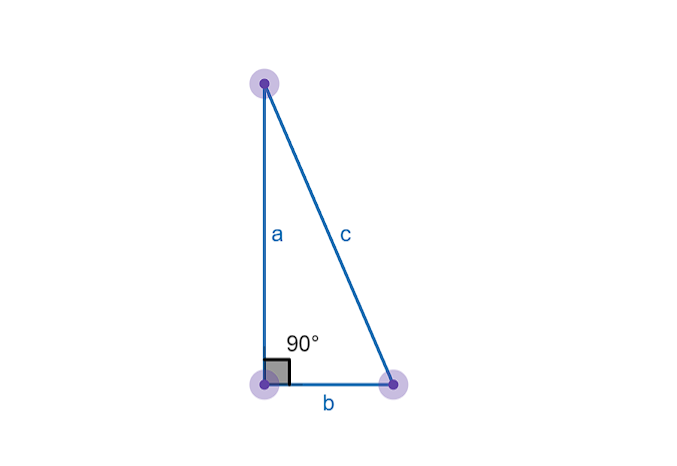

  • The hypotenuse is the longest side of the triangle. It's the side that is directly opposite the right angle (the 90degree90-degree angle).
  • The other two sides are sometimes called the legs of the triangle.

The formula for Pythagoras' Theorem is:

c2=a2+b2c^2 = a^2 + b^2

Where:

  • cc is the hypotenuse (the longest side).
  • aa and bb are the other two sides.

Step 1: Identify the Sides of the Triangle

  • Hypotenuse: This is always the longest side and is opposite the right angle.
  • Other sides: These are the two sides that make up the right angle.

Step 2: Write Down the Formula

The formula is:

c2=a2+b2c^2 = a^2 + b^2

If you're trying to find the hypotenuse, you'll use the formula as it is. But if you're trying to find one of the other sides, you need to rearrange the formula.

To find side aa:

a2=c2b2a^2 = c^2 - b^2

To find side bb:

b2=c2a2b^2 = c^2 - a^2

infoNote

Example 1: Finding the Hypotenuse

Let's start with a problem where we need to find the hypotenuse.

Problem: You have a right-angled triangle where one side is 3 cm and the other side is 4 cm. Find the length of the hypotenuse.

Step 1: Identify the sides.

  • a=3cma = 3 \, \text{cm}
  • b=4cmb = 4 \, \text{cm}
  • cc is the hypotenuse (unknown). Step 2: Write down the formula. c2=a2+b2c^2 = a^2 + b^2

Step 3: Substitute the known values. c2=32+42c^2 = 3^2 + 4^2

Step 4: Calculate the squares. c2=9+16c^2 = 9 + 16

Step 5: Add the squares. c2=25c^2 = 25

Step 6: Find cc by taking the square root. c=25=5cmc = \sqrt{25} = 5 \, \text{cm}

Final Answer: The length of the hypotenuse is 5 cm.

infoNote

Example 2: Finding One of the Other Sides

Now, let's try a problem where you need to find one of the other sides.

Problem: You have a right-angled triangle where the hypotenuse is 13 cm and one side is 5 cm. Find the length of the other side.

Step 1: Identify the sides.

  • c=13cmc = 13 \, \text{cm} (hypotenusehypotenuse)
  • a=5cma = 5 \, \text{cm}
  • bb is the unknown side. Step 2: Rearrange the formula to solve for b b. b2=c2a2b^2 = c^2 - a^2

Step 3: Substitute the known values. b2=13252b^2 = 13^2 - 5^2

Step 4: Calculate the squares. b2=16925b^2 = 169 - 25

Step 5: Subtract the squares. b2=144b^2 = 144

Step 6: Find bb by taking the square root. b=144=12cmb = \sqrt{144} = 12 \, \text{cm}

Final Answer: The length of side b b is 12 cm.

infoNote

Exam Tip: Show Your Work!

When using Pythagoras' Theorem in an exam, make sure to show every step of your working out. Even if you make a small mistake, you can still get marks for using the right method. And remember to double-check your units—use cm,m cm, m, etc., and squared numbers (like area) need squared units.


Summary of Steps to Follow:

  1. Draw a diagram: Label the sides and identify the hypotenuse and the other two sides.
  2. Write down the formula: Start with the Pythagoras' Theorem formula, c2=a2+b2c^2 = a^2 + b^2.
  3. Substitute the known values: Plug the numbers from your problem into the formula.
  4. Calculate the squares: Work out the squares of the numbers.
  5. Solve for the unknown side: Add or subtract the squares as needed, then take the square root to find the length of the unknown side.
  6. Include units: Don't forget to write the correct units (e.g., cm,mcm, m) in your final answer.
