Advanced Line and Angle Constructions

Overview

Advanced constructions involve more complex tasks, such as dividing line segments into equal parts, creating parallel lines, and constructing angles with specific measures. These constructions use only a compass and straight edge, relying on geometric principles.

---

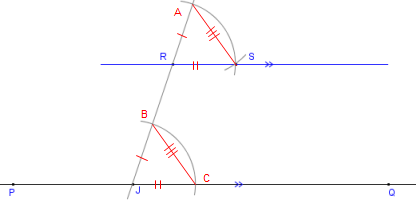

Line Parallel to a Given Line Through a Given Point

Objective: To construct a line parallel to a given line that passes through a specified point.

Method

1. Draw a transversal from the given point to the given line, intersecting it at a point.
2. At the given point, construct an angle equal to the angle between the transversal and the given line using the compass.
3. Extend the constructed angle to form a line passing through the given point. Result: The new line is parallel to the given line.

---

Division of a Segment into 2 or 3 Equal Parts Without Measuring It

Objective: To divide a segment into two or three equal parts.

Method

1. Draw a ray from one endpoint of the segment at an arbitrary angle.
2. Using the compass, mark two or three equal segments along the ray.
3. Connect the last mark on the ray to the other endpoint of the original segment.
4. Draw parallel lines through the intermediate marks on the ray, using a compass and straight edge. Result: The segment is divided into two or three equal parts.

---

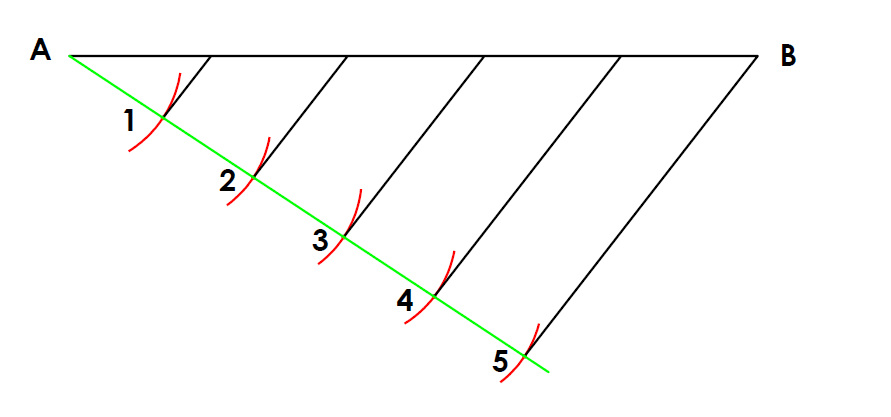

Division of a Segment into Any Number of Equal Parts

Objective: To divide a segment into $n$ equal parts.

Method

1. Draw a ray from one endpoint of the segment at an arbitrary angle.
2. Using the compass, mark $n$ equal segments along the ray.
3. Connect the last mark on the ray to the other endpoint of the original segment.
4. Draw parallel lines through the remaining marks on the ray, using a compass and straight edge. Result: The segment is divided into $n$ equal parts.

---

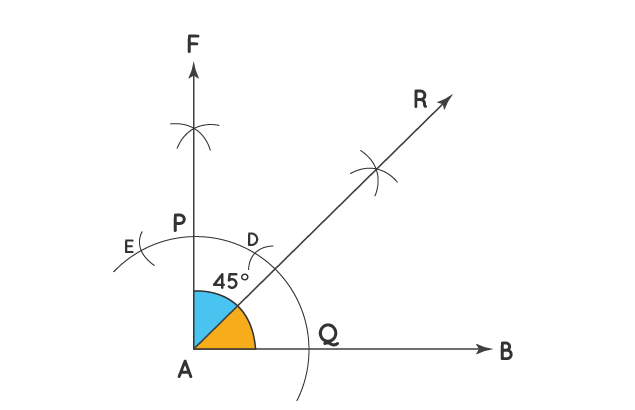

Angle of a Given Number of Degrees with a Given Ray as One Arm

Objective: To construct an angle of a specific measure using a ray as one arm.

Method

1. Draw a circle centred at the vertex of the given ray, creating an arc that intersects the ray.
2. Using a protractor, measure the desired angle on the arc and mark a point.
3. Draw a ray connecting the vertex to the marked point. Result: The constructed angle measures the desired number of degrees.

---

Summary

1. Parallel Line Construction: Creates a line parallel to a given line through a specified point.
2. Division into Equal Parts: Segments can be divided into 2, 3, or any number of equal parts without direct measurement.
3. Angle Construction: An angle with a specific measure can be constructed using a ray as one arm. These advanced constructions expand the range of geometric problems that can be solved with a compass and straight edge.
