Perimeter, area and volume

Definition of Perimeter

Perimeter is the total length of the outside of a shape or the continuous line forming the boundary of a closed geometric figure.
It is calculated by adding together the lengths of each side.
Units of measurement: millimetres (mm), centimetres (cm), metres (m), or kilometres (km).

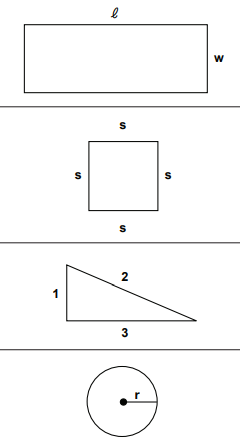

Perimeter Formulae for Common Shapes

Shape	Formula
Rectangle	$P = 2 \times \text{length} + 2 \times \text{width}$
Square	$P = 4 \times \text{side}$
Triangle	$P = \text{side}_1 + \text{side}_2 + \text{side}_3$
Circle (circumference)	$P=2π×radiusP = 2\pi \times \text{radius}$

Measuring Perimeter

For rectangles, squares, and triangles, use a ruler to measure each side and sum the values.
For circles, use string to trace the outline, then measure the string length using a ruler.
The perimeter of a circle is called its circumference.

infoNote

Worked Example 1: Calculating Perimeter

Question:

Mr. and Mrs. Dlamini have a rectangular backyard with a length of 5 cm and width of 4.2 cm in a diagram. What is the actual perimeter in metres if the diagram scale is 1:100?

Solution:

Calculate the perimeter using the rectangle formula:

P = 2(5) + 2(4.2) = 18.4 \text{ cm}

Convert using the scale:

18.4 \text{ cm} \times 100 = 18.4 \text{ m}

Final Answer: 18.4 m

Worked Example 2: Applying Scale to Find Actual Size

Mrs Dlamini wants to dig up some of the lawn and plant a triangular vegetable garden as shown in the diagram alongside

The scale given is 1:100, meaning 1 cm on the diagram represents 100 cm in reality.

b) Converting to Actual Perimeter

12 \text{ cm} \times 100 = 1 200 \text{ cm}

Since 1 200 cm = 12 m, the actual perimeter of the garden is 12 metres.

Area

Definition of Area

Area is the measure of the surface enclosed by a shape.
Units of measurement: square millimetres (mm²), square centimetres (cm²), square metres (m²), square kilometres (km²).

Area Formulae for Common Shapes

Shape	Formula
Rectangle	$A = \text{length} \times \text{width}$
Square	$A = \text{side}^2$
Triangle	$A = \frac{1}{2} \times \text{base} \times \text{height}$
Circle	$A = \pi \times \text{radius}^2$

infoNote

Worked Example 2: Calculating Area

Question:

Calculate the area of a triangular garden with a base of 4 cm and a height of 12 cm.

Solution:

$A = \frac{1}{2} \times 4 \times 12$

$= 24 \text{ cm}^2$

Final Answer: 24 cm²

Combining Areas of Different Shapes

Sometimes, complex shapes are formed by combining multiple basic shapes.
Steps: 3. Break the shape into simpler parts (e.g., rectangle + triangle). 4. Find the area of each shape separately. 5. Add or subtract areas accordingly.

infoNote

Worked Example 3: Combining Shapes

Question:

A rare coin has a circular shape with a square cut-out.

The circle has a diameter of 3 cm.
The square has a side length of 0.9 cm.
Find the remaining area of the coin.

Solution:

Calculate the area of the circle:

A \ circle= \pi \times \left(\frac{3}{2}\right)^2

= 3.142 \times 2.25 = 7.07 \text{ cm}^2

Calculate the area of the square:

A\ square = 0.9 \times 0.9 = 0.81 \text{ cm}^2

Subtract the square from the circle:

A\ coin = 7.07 - 0.81 = 6.26 \text{ cm}^2

Final Answer: 6.26 cm²

Volume

Definition of Volume

Volume is the amount of space occupied by a 3D object.
Units of measurement: cubic millimetres (mm³), cubic centimetres (cm³), cubic metres (m³).
Key conversion: $:highlight[1 m^3 = 1000 \text{ L}]$

Volume Formulae for Common Shapes

Shape	Formula
Rectangular box	$V = \text{length} \times \text{width} \times \text{height}$
Cylinder	$V = \pi \times \text{radius}^2 \times \text{height}$

infoNote

Worked Example 4: Calculating Volume

Question:

Cedric is building a rectangular foundation with dimensions 8 m × 0.5 m × 0.5 m.

Calculate the volume and cost of concrete if it costs R180/m³.

Solution:

Calculate volume: $V = 8 \times 0.5 \times 0.5 = 2 \text{ m}^3$
Find total cost: $2 \times R180 = R360$

Final Answer: R360

4. Multi-Step Problems

Complex problems require multiple steps, including unit conversions, cost calculations, or combining shapes.
Example: Swimming Pool Calculation
- Length = 15 m, Depth = 1.3 m, Width = 5 m.
- Convert to litres: $:highlight[1 m^3 = 1000 \text{ L}]$
- Find time to fill the pool (using a pump rate of 2 L/sec). Solution Summary:

Calculate volume: $15 \times 1.3 \times 5 = 97.5 \text{ m}^3$
Convert to litres: $97.5 \times 1000 = 97 500 \text{ L}$
Calculate time: $97 500 \div 2 = 48 750 \text{ seconds} = :success[13 \text{ hours } 32 \text{ min}]$

infoNote

Final Summary

Perimeter: Sum of all sides.
Area: Space inside a shape.
Volume: Space inside a 3D object.
Use correct formulae for each shape.
Apply real-world problem-solving using conversion factors, cost calculations, and combined shapes.
