Motors and generators

1. Principles of Electromagnetic Induction

• Electromagnetic induction occurs when a conductor moves in a magnetic field, changing the magnetic flux and inducing an emf (electromotive force).
• The magnetic flux $(Φ)$ is the product of the magnetic field strength (B) and the surface area (A) it passes through.
• Induced current follows Faraday's Law, which states: $\text{Induced emf} \propto \frac{\text{Change in magnetic flux}}{\text{Time taken}}$

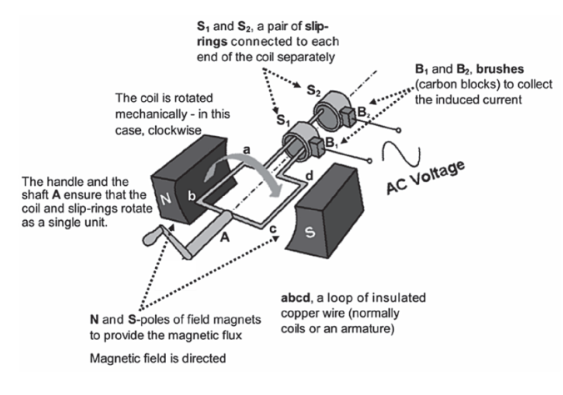

2. Alternating Current (AC) Generators

• Purpose: Convert mechanical energy into electrical energy.
• Components:
  • Coil: Rotates in a magnetic field.
  • Slip rings: Maintain continuous contact with external circuit.
  • Carbon brushes: Conduct electricity to external circuit.
• Working Principle:

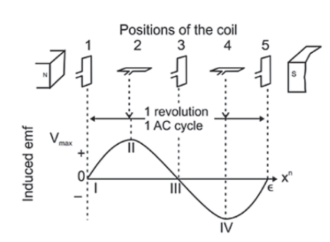

  • As the coil rotates, it cuts through the magnetic field, inducing an alternating current (AC).
  • The current changes direction every half-cycle.

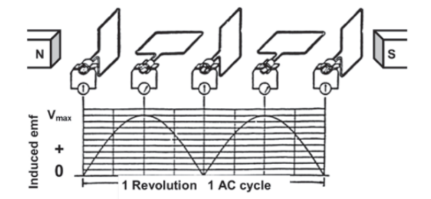

3. Direct Current (DC) Generators

• Purpose: Convert mechanical energy into direct current.
• Key Differences from AC Generators:
  • Uses a split-ring commutator instead of slip rings.
  • Ensures current flows in one direction.

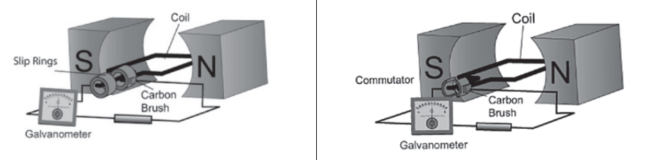

4. AC vs. DC Generators

Feature	AC Generator	DC Generator
Output current	Alternating current (AC)	Direct current (DC)
Commutator type	Slip rings	Split-ring commutator
Current direction	Changes every half-cycle	Stays the same
Application	Power stations, household electricity	Batteries, car alternators

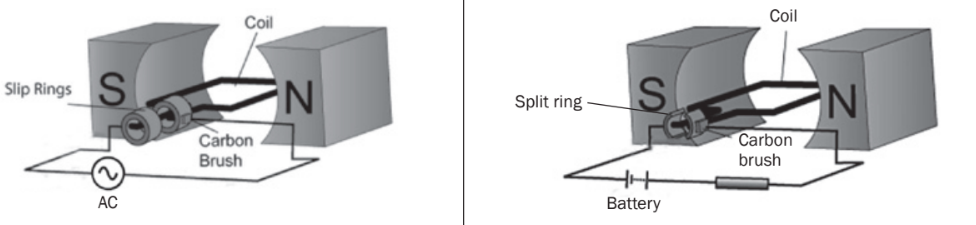

5. Electric Motors

• Purpose: Convert electrical energy into mechanical energy.
• Types:
  • DC Motors (use a split-ring commutator).
  • AC Motors (use slip rings).

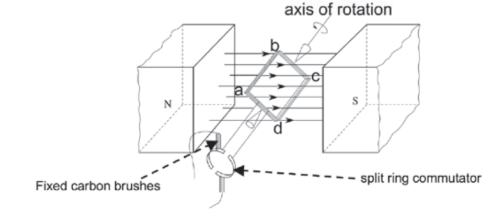

Working of a DC Motor

1. Current flows through the coil → Generates a magnetic force.
2. Interaction with the magnetic field → Produces rotation.
3. Commutator reverses current every half-turn → Ensures continuous rotation.

Fleming's Right-Hand Rule (For Generators)

• Thumb: Motion of the conductor.
• First Finger: Magnetic field direction.
• Second Finger: Induced current direction.

Fleming's Left-Hand Rule (For Motors)

• Thumb: Direction of force (motion).
• First Finger: Magnetic field direction.
• Second Finger: Current direction.

6. AC vs. DC Motors

Feature	AC Motor	DC Motor
Power source	Alternating current (AC)	Direct current (DC)
Commutator type	Slip rings	Split-ring commutator
Current flow	Changes direction continuously	Flows in one direction
Application	Washing machines, electric drills	Car starters, electric toys

7. Real-World Applications

• Generators: Used in power plants to produce electricity.
• Motors: Used in cars, appliances, and industrial machinery.
• Alternators: Charge car batteries by converting mechanical rotation into electrical energy.
