7.4.2 Nitration of Benzene

Reactions of Benzene

Despite containing carbon-carbon double bonds, benzene does not readily undergo addition reactions as might be expected. For instance, benzene does not decolorize bromine water and generally resists other addition reactions.

This resistance to addition reactions is due to the stability of the delocalized electron system in benzene. Any reaction that would disrupt this delocalized structure, such as addition reactions, is not energetically favorable. Instead, benzene tends to undergo substitution reactions, which preserve the stability of the delocalized electron ring.

Electrophilic Substitution Reactions of Benzene

Benzene's delocalized electrons create an electron-rich region that is attractive to electrophiles, making benzene prone to electrophilic substitution reactions. Two key electrophilic substitution reactions of benzene are nitration and halogenation.

Nitration of Benzene

Benzene reacts with a mixture of concentrated nitric acid $(HNO₃$) and sulfuric acid ($H₂SO₄$)** under reflux conditions at 50-55°C, producing nitrobenzene.

Reaction Steps:

1. Formation of the Electrophile (NO₂⁺):

• Sulfuric acid, being a stronger acid than nitric acid, protonates nitric acid, allowing it to act as a base:

$$H₂SO₄ + HNO₃→H₂NO₃⁺ + HSO₄⁻$$

The unstable H₂NO₃⁺ ion then decomposes, forming water and the electrophile, NO₂⁺:

$${H₂NO₃⁺} \rightarrow \text{H₂O + NO₂⁺}$$

2. Attack on the Benzene Ring:

• The NO₂⁺ ion acts as the electrophile and attacks the electron-rich benzene ring, temporarily breaking the delocalized structure.

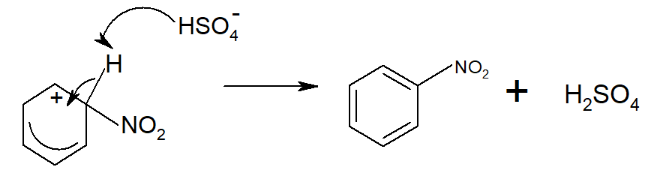

Step 3: The delocalized electron system is restored by drawing in electrons from the$C-H$ bond.

The H⁺ ion then combines with $HSO₄⁻$ to regenerate $H₂SO₄$.

The overall reaction is $C6H6 + HNO3$ à $C6H5NO2 + H2O$

It can also be written:

The sulphuric acid behaves as a catalyst. The product is known as nitrobenzene.

Acylation

Benzene reacts with acyl chlorides in the presence of anhydrous$AlCl₃$ under reflux at 50°C to produce phenylketones. This process is known as the Friedel-Crafts acylation reaction.

Step 1: AlCl₃ acts as a Lewis acid, accepting a $Cl⁻$ion from the acyl chloride, which generates a carbocation:

$${R-COCl + AlCl₃} \rightarrow \text{R-CO⁺ + AlCl₄⁻}$$

The $R-CO⁺$ ion formed is the electrophile.

Step 2: This electrophile then attacks the electron-rich benzene ring, temporarily disrupting the delocalized electron system.

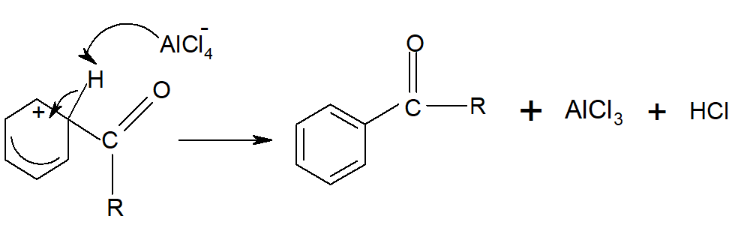

Step 3: The delocalized ring is restored by drawing electrons from the $C-H$ bond.

The H⁺ ion then reacts with $AlCl₄⁻$ , producing HCl gas and regenerating$AlCl₃$.

The overall reaction is therefore:

$${C₆H₆ + R-COCl} \rightarrow \text{C₆H₅COR + HCl}$$

with AlCl₃ acting as a catalyst.

If ethanoyl chloride is used as the acyl chloride, the resulting product is phenylethanone.

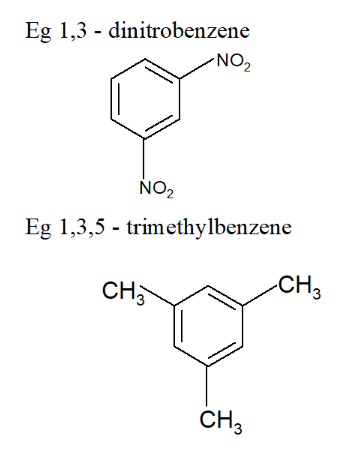

Further Substitution:

It is crucial to maintain the reaction temperature below 55°C to prevent further substitution from occurring.
