Bohr Model Foundations

• Objective: Investigate the influence of spectral evidence in substantiating the Bohr Model—a significant milestone in atomic physics.
• Key Concepts: Both absorption and emission spectra are vital for comprehending electron dynamics and transitions.
• Motivation: Bohr's model introduced quantised energy levels, significantly enhancing our understanding of atomic structures.

Overview

The Bohr Model illustrates electrons in fixed orbits, which is essential for grasping how emission and absorption spectra occur. Bohr's model introduced quantised energy levels, a revolutionary concept in atomic theory.

Historical Context

Niels Bohr's Contribution

• Niels Bohr: Transformed the understanding of atomic structures by elucidating atomic spectral lines and stability, which previous models could not adequately explain.
• Scientific Climate: Earlier models struggled to account for atomic stability or the presence of spectral lines.

Absorption vs. Emission Spectra

• Absorption Spectrum: Electrons absorb energy to transition to higher energy levels.
• Emission Spectrum: Electrons release energy while transitioning to lower energy levels.
• Mechanism: Electron transitions are essential for understanding how each type of spectrum manifests.

Bohr's Postulates

Quantised Orbits

• Quantised Orbits: Electrons occupy specific paths with defined energies.
  • Diagram Reference:

Discrete Energy Levels

• Electrons can only reside in allowed levels, resulting in distinct transitions.

Atomic Emission Spectra and Key Experiments

Atomic Emission Spectra: Specific to each element, due to varying electron configurations. These configurations dictate how electrons absorb and emit light, leading to unique spectra.

• Rutherford's Gold Foil Experiment: Demonstrated a dense, positively charged nucleus, shaping the contemporary understanding of the nuclear model.
  • Contribution: The deflection of alpha particles led to the conclusion of a mostly empty atom with a concentrated nucleus.
• Franck-Hertz Experiment: Validated the quantised nature of energy levels.
  • Contribution: Demonstrated that electrons occupy discrete energy levels, absorbing specific energy amounts, a pivotal discovery for quantum mechanics.

Planck's Quantum Theory

• Planck's Quantum Hypothesis: Energy is quantised; not all values are possible.
• Importance: Understanding quantisation is vital for explaining atomic spectra and electron transitions.

Advanced Concepts in Atomic Theory

Wave-Particle Duality

• Wave Nature:
  • Light exhibits wave behaviour, as demonstrated by interference patterns.
• Particle Nature:
  • Photons and Electrons display particle characteristics, crucial for phenomena like the photoelectric effect. Contributions by Einstein and De Broglie were foundational to quantum mechanics.

Key Discoveries Influencing Atomic Theories

• Photoelectric Effect: Demonstrated the particle nature of light, which was instrumental in the development of quantum mechanics.
• Electron Diffraction: Confirmed the wave properties of electrons, reshaping scientific understanding.

Absorption and Emission Spectra

Electron Transitions

• Emission involves the release of energy.
• Absorption requires the intake of energy.

Calculations and Examples

Bohr's Formula for Energy Levels

Bohr's energy formula is used to calculate specific energy levels:

$E_n = - \left( \frac{R_H}{n^2} \right)$

• Example Calculation:
  • Step 1: $E_1 = - \frac{R_H}{1^2} \approx -13.6 \,\text{eV}$
  • Step 2: $E_2 = - \frac{R_H}{2^2} \approx -3.4 \,\text{eV}$
  • Step 3: Calculate $\Delta E = E_2 - E_1 = 10.2 \,\text{eV}$

Practical Applications of Atomic Models

Key Spectroscopic Techniques

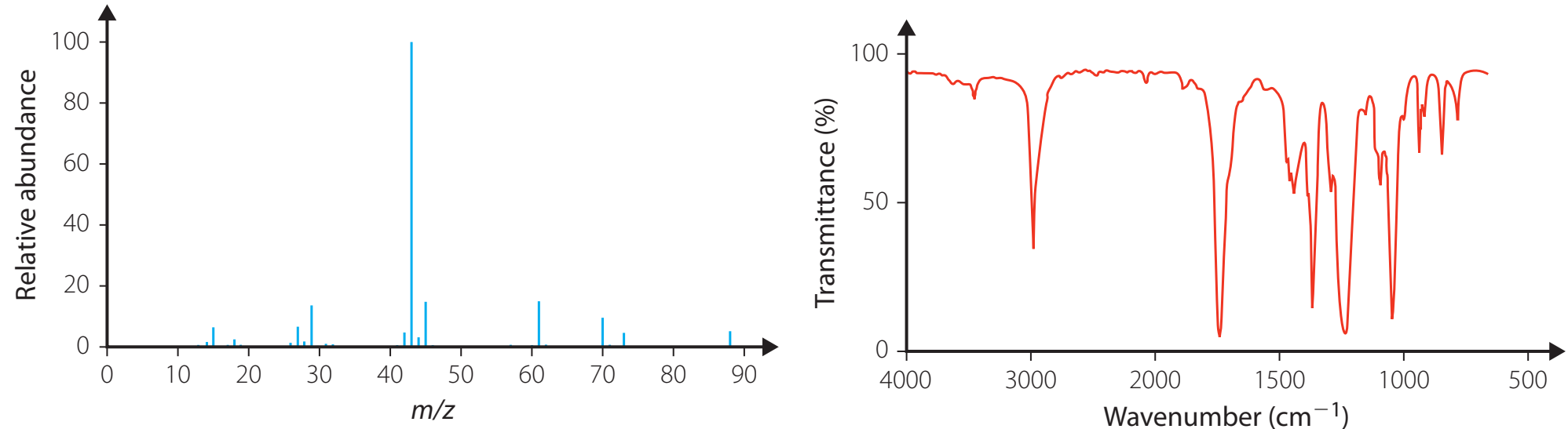

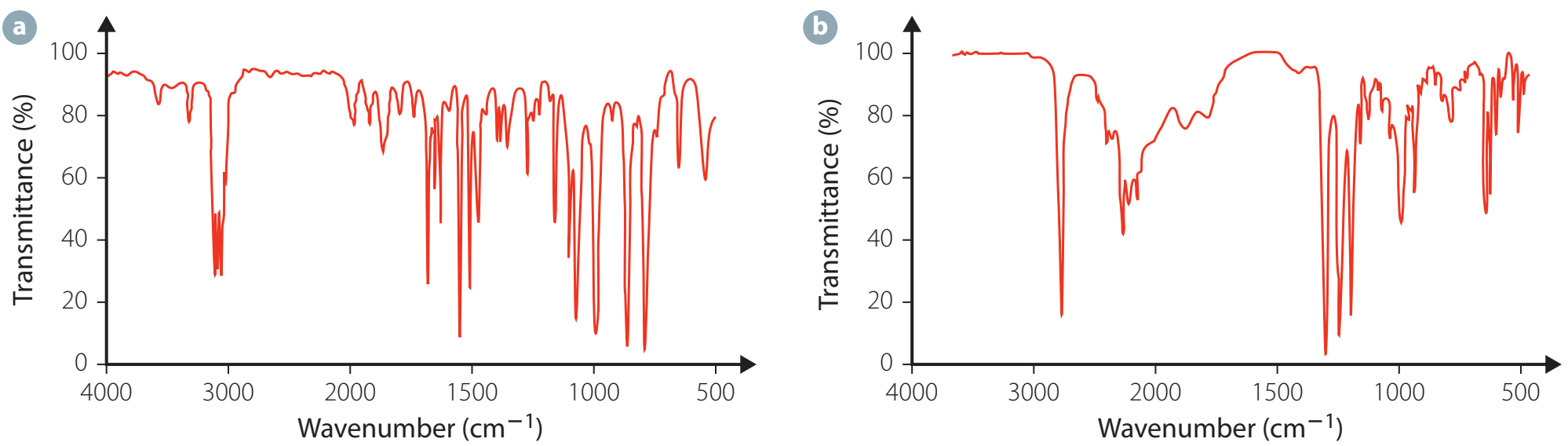

• Infrared (IR) Spectroscopy: Utilises infrared rays to identify functional groups.

• Nuclear Magnetic Resonance (NMR) Spectroscopy: Used for identifying organic compound structures.

• Mass Spectroscopy: Determines substances by measuring the mass-to-charge ratio.

• UV-Visible (UV-Vis) Spectroscopy: Involves the absorption of visible light by electrons.

Table of Applications

• Field	Examples
  Astronomy	Analysing star composition through spectral analysis
  Chemistry	Understanding elemental spectra

Limitations of the Bohr Model

• Bohr Model: Provides an introductory framework for understanding electron orbits but has notable limitations.
• Limitations: Ineffective for multi-electron atoms and unable to predict detailed spectral phenomena.

Predictions vs. Observations Table

Phenomenon	Bohr Model Prediction	Experimental Observation
Zeeman Effect	None	Splitting of spectral lines in magnetic fields
Fine Structure	None	Detailed splitting of spectral lines

Technological and Methodological Advances

• Supportive Innovations: Developments such as advanced spectrum analysis and computational simulations validated modern theories.

Year	Technological Milestone
1920s	Techniques for advanced spectrum analysis
1930s	Solving quantum equations computationally
1940s	Validation of quantum predictions

These advancements illustrate the transition from classical to quantum frameworks, underpinning modern atomic and subatomic phenomena.

Comparative Analysis: Bohr vs. Schrödinger

• Bohr Model: Depicts fixed, predictable orbits.
• Schrödinger Model: Utilises probabilistic clouds to describe electron positions with greater accuracy.

Impact of Quantum Mechanics and Atomic Models

• Quantum Mechanics: Plays a significant role in the advancement of chemical methodologies, especially in the enhancement of spectroscopic equipment.
